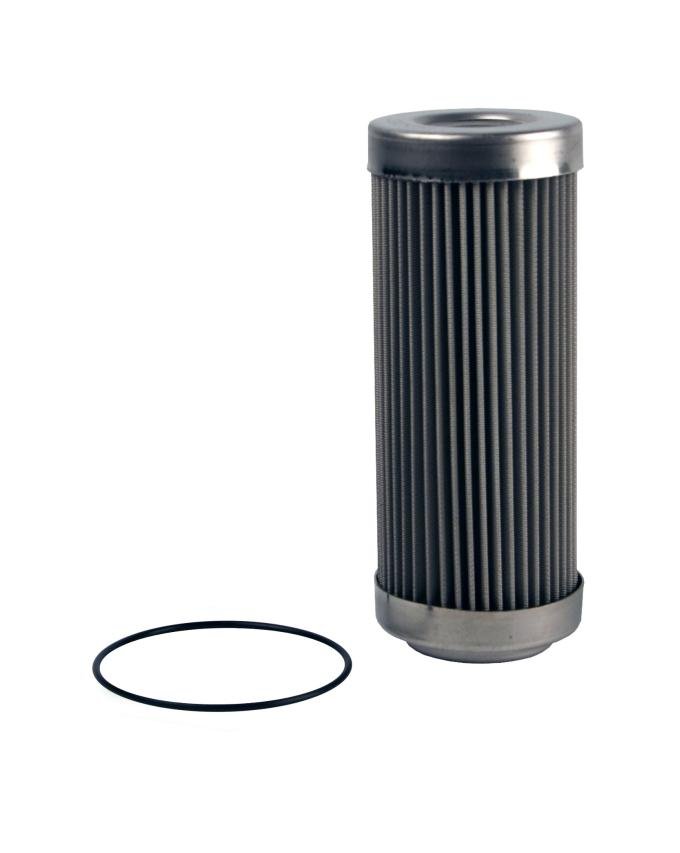

Aeromotive 40 Micron Stainless Mesh Replacement Element for ORB-12 Filter Housings 12642

Aeromotive 40 Micron Stainless Mesh Replacement Element for ORB-12 Filter Housings 12642
Aeromotive 40 Micron Stainless Mesh Replacement Element for ORB-12 Filter Housings 12642Aeromotive 40 Micron Stainless Mesh Replacement Element for ORB-12 Filter Housings 12642Aeromotive 40 Micron Stainless Mesh Replacement Element for ORB-12 Filter Housings 12642
$183.99 ea
NEWARRIVING SOONEstimated Ship Date 09/07/2026 (If Ordered Today)
Model: 5118261
Supplier has not provided any fitment data for this product.
STANDARD
DELIVERY
STORE PICKUP
[More Info]
Recommended for applications burning pump gas, racing gas, diesel fuel, jet fuel, av-gas, etc. Approved for use in alcohol fuels including ethanol and methanol. Over 90-sq. inches of element surface area supports high flow while providing good service life. Cleanable 40-micron Stainless Steel mesh construction. Flow capacity of up to 1,200 plus GPH (20.00 GPM) with less than 1-PSI pressure drop. Supports up to 11,000 plus Flywheel HP, Forced Induction, on gasoline. Supports up to 8,000 Flywheel HP, Forced Induction on Ethanol. Supports up to 3,800 Flywheel HP, Forced Induction on Methanol. Ideal as a post-pump filter with gasoline, ethanol and Methanol burning engines, carb and EFI, with medium to large Aeromotive electric fuel pumps from the A2000 to the Pro-Series fuel pumps. Popular as a post pump filter with 6 and 12 Series (belt and hex driven) mechanical fuel pumps and Aeromotive Spur Gear Pumps up to 32 GPM.
About Aeromotive

For over 26 years, Aeromotive has been committed to designing and manufacturing the highest quality fuel systems and components for OE applications and the automotive aftermarket. A brand backed by integrity and reliability, a passion for performance and a hands-on, real world approach drove Aeromotive to its position as industry leader. Since our previous acquisition in 2015, PerTronix has been searching for a strong automotive brand in its growth cycle with a strong culture that would align well with PerTronix Performance Brands and 2020 brought with it the acquisition of Aeromotive and Waterman Racing Components. Moving forward, our teams will foster collaboration on new product development, processes and best practices with each brand operating from their existing locations to benefit from the capabilities of their respective manufacturing facilities.

Specifications:

Material Stainless Steel
Micron Rating 40
Part Type Fuel Filter Element
Prop 65 Flag Yes
Warranty Time 12 Months
