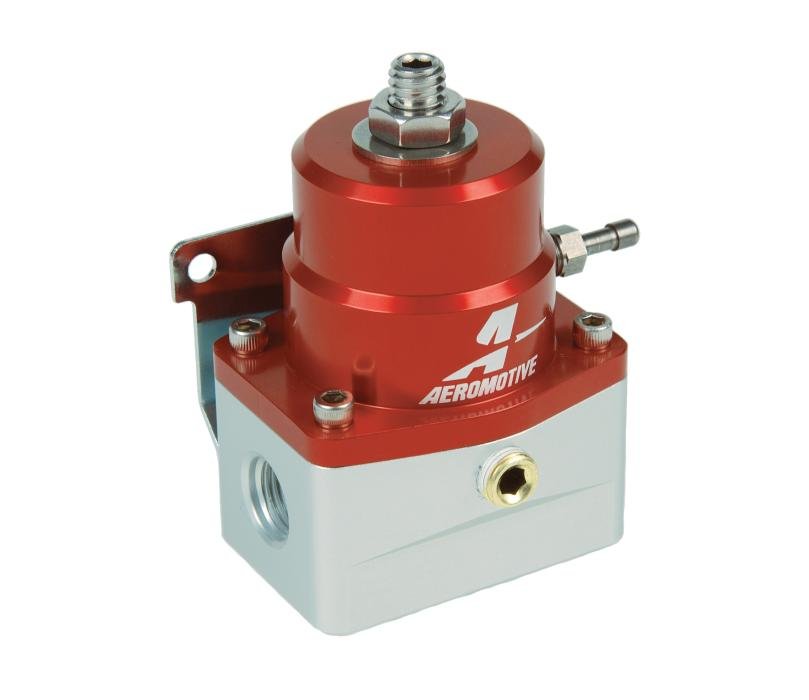

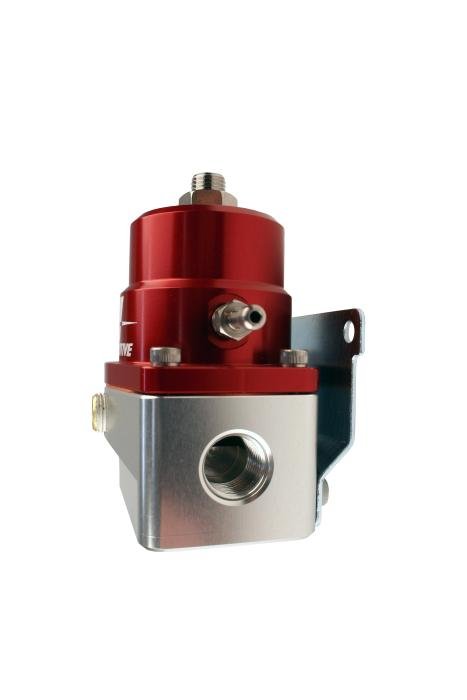

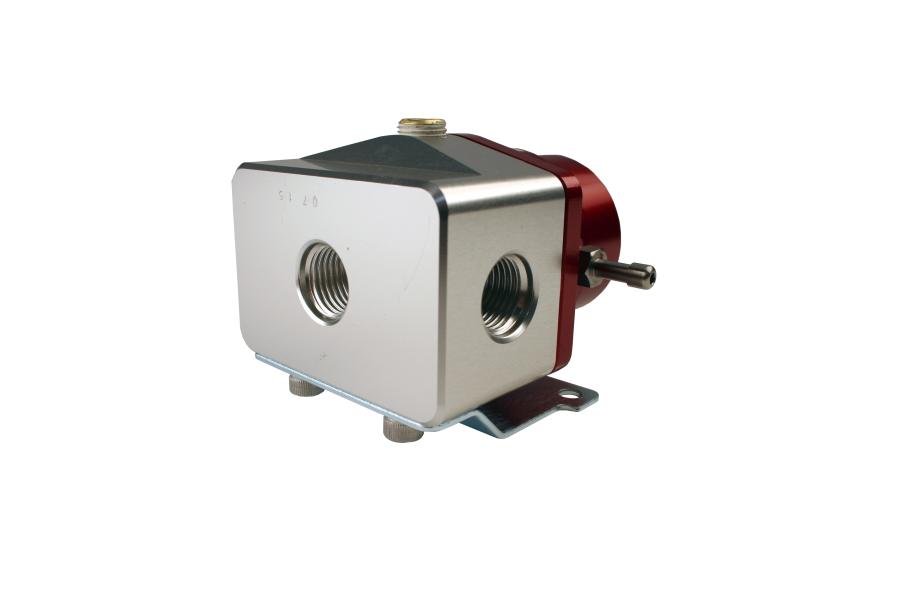

Aeromotive A1000 EFI Return Style Fuel Pressure Regulator with ORB-06 Ports 13109

Aeromotive A1000 EFI Return Style Fuel Pressure Regulator with ORB-06 Ports 13109
Aeromotive A1000 EFI Return Style Fuel Pressure Regulator with ORB-06 Ports 13109Aeromotive A1000 EFI Return Style Fuel Pressure Regulator with ORB-06 Ports 13109
$409.99 ea
NEWARRIVING SOONEstimated Ship Date 08/13/2026 (If Ordered Today)
Model: 5118293
Supplier has not provided any fitment data for this product.
STANDARD
DELIVERY
STORE PICKUP
[More Info]
Performance EFI regulator designed for medium to high horsepower applications. This regulators features Aeromotive's high-flow design, superb pressure control and legendary durability. On the street and at the track, this pressure regulator has logged more miles, laps and passes than any other performance EFI regulator in the world! Base pressure adjustable from 40-75 PSI. Gasoline and alcohol compatible. Fuel pressure rises on a 1:1 ratio with boost. 1/8 NPT gauge port. P/N 13109 provides (2) ORB-06 inlet ports and (1) ORB-06 return port.
About Aeromotive

For over 26 years, Aeromotive has been committed to designing and manufacturing the highest quality fuel systems and components for OE applications and the automotive aftermarket. A brand backed by integrity and reliability, a passion for performance and a hands-on, real world approach drove Aeromotive to its position as industry leader. Since our previous acquisition in 2015, PerTronix has been searching for a strong automotive brand in its growth cycle with a strong culture that would align well with PerTronix Performance Brands and 2020 brought with it the acquisition of Aeromotive and Waterman Racing Components. Moving forward, our teams will foster collaboration on new product development, processes and best practices with each brand operating from their existing locations to benefit from the capabilities of their respective manufacturing facilities.

Downloads:

Download Name File Size
131-0109.pdf1.4MB

Specifications:

Adjustable Yes
Color Red/Silver
Fuel Delivery Type Fuel Injection
Gauge Included No
Gauge Port Yes
Grade Type Performance
Inlet Gender Female
Inlet Gender.1 Female
Inlet Port Diameter ORB-06
Marine Approved No
Maximum Pressure 75
Minimum Pressure 40
Mounting Bracket Included Yes
Outlet Port Diameter ORB-06
Part Type Fuel Pressure Regulator
Port Quantity 2
Pressure Range 40-75
Prop 65 Flag Yes
Return Port Diameter ORB-06
Return Port Gender Female
Vacuum/Boost Port Yes
Warranty Time 12 Months
