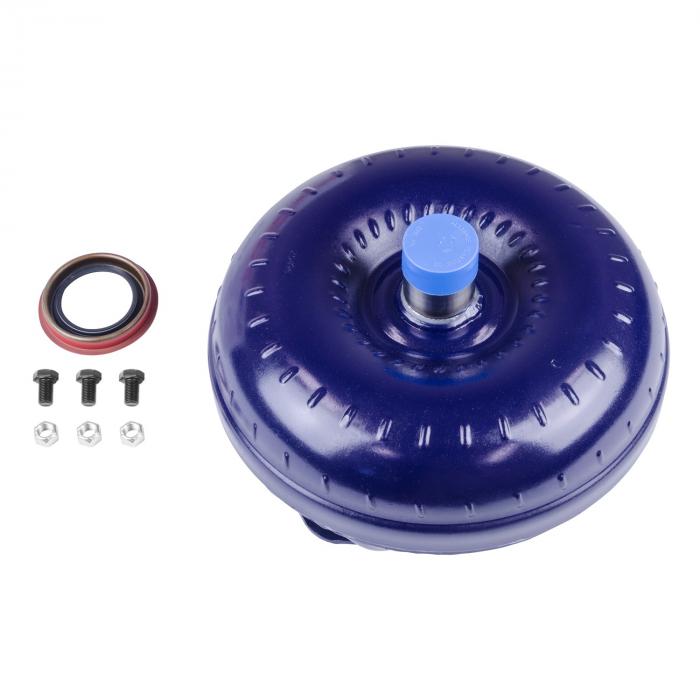

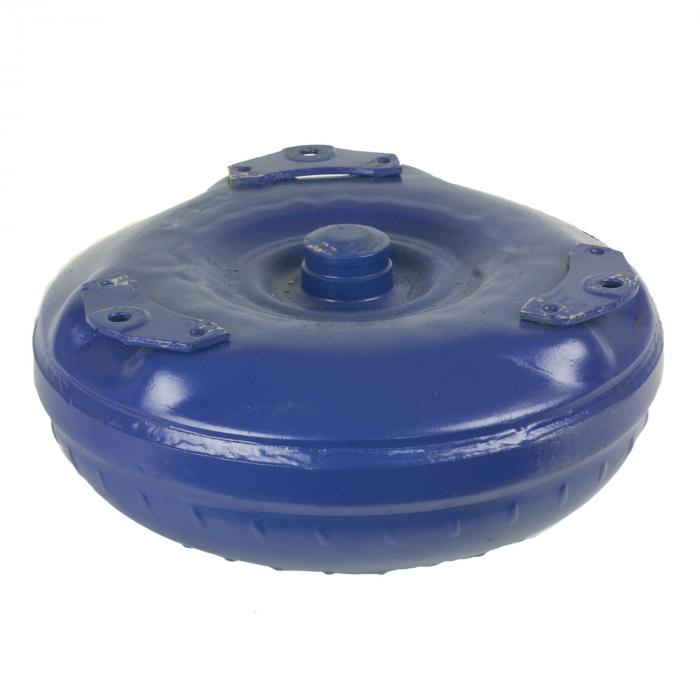

B&M Holeshot 2000 Torque Converter 20416
B&M Holeshot 2000 Torque Converter 20416 B&M Holeshot 2000 Torque Converter 20416 B&M Holeshot 2000 Torque Converter 20416

B&M Holeshot 2000 Torque Converter 20416

$423.99 ea
Model:3998149
Condition: NEW
Availability:
ARRIVING SOON!
Estimated arrival: 08/16/2021 (If Ordered Today)
20 available from HOLLEY PERFORMANCE PRODUCTS as of 07/28/2021
Fitment:
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
Shipping Note:Standard Delivery
Qty:

Can't Find your Part?

We'll find it for you. Give us a call at 855.444.6872 and we'll source that discontinued or hard to find part.

Why Choose Us?

No Brokerage or Duties - Canadian Owned & Operated - Shipped from Canada to your Door - Easy to Navigate Website - Access to New, Used & Discontinued Parts - Full Time Staff to Answer your Questions.

Disclaimer

Muscle Cars & Classics always recommends professional installation of our products. Buyer assumes risk of damage caused by improper installation.

HoleShot 2000 for GM 1965 to 1991 TH400, 425, 375 and 1968 to 1981 TH350, 375B (not 350C) Application: HoleShot 2000 for GM 1965 to 1991 TH400, 425, 375 and 1968 to 1981 TH350, 375B (not 350C) A higher than stock stall speed as delivered by the Holeshot converter will provide several advantages and benefits in vehicles with modified engines. Many modifications, particularly big cams, tend to reduce low end power and torque. The high stall converter allows the engine to launch the car at higher rpm where more torque is available. The Holeshot is generally a very good choice for the typical street machine that is looking for better launch capability and more strength. Street rods with modified engines will also benefit from a Holeshot converter. If your vehicle is equipped with a plate type nitrous system, you will need a Nitrous Holeshot!! Stall speed listings are based on engines producing 230lb. ft. of torque at 2,500 rpm. More torque at 2,500 rpm will give you more stall speed, less torque at 2,500 rpm will give you less stall speed than the stall speed ratings indicated. Furnace brazed impeller. New precision steel alloy pump drive tube. New heavy duty needle bearing between stator and impeller (not a thrust washer). Needle bearing between stator and turbine. Furnace brazed turbine. Dual pattern drive lugs on some GM Holeshots. New turbine hub. New springs and rollers in stator.
Features:
  • Furnace Brazed Impeller
  • Steel Alloy Pump Drive Tube
  • Heavy Duty Needle Bearing
  • Between Stator and Turbine
  • Furnace Brazed Turbine
  • New Turbine Hub
  • New Springs/Rollers In Stator
Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations
Installation Notes:
Fits GM 1965-91 TH400, 425, 375 and 1968-81 TH350, 375B (not 350C) automatic transmissions. Requires small 10.75-inch bolt circle flexplate.

Downloads:

Download Name File Size
BM_Warranty.pdf66.98KB
20416.pdf4MB
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Engine Fitment Notes
Chevrolet Chevy II Base 1966 5.3L / 327 / V8
4.6L / 283 / V8
3.8L / 230 / L6
3.2L / 194 / L6
2.5L / 153 / L4
1900 - 2100 RPM Stall; Requires 10.75 in. Bolt Circle/Dual Pattern Flexplate
Chevrolet Chevy II Base 1967 5.3L / 327 / V8
4.6L / 283 / V8
4.1L / 250 / L6
3.2L / 194 / L6
2.5L / 153 / L4
1900 - 2100 RPM Stall; Requires 10.75 in. Bolt Circle/Dual Pattern Flexplate
Chevrolet Chevy II Nova SS 1967 5.3L / 327 / V8 1900 - 2100 RPM Stall; Requires 10.75 in. Bolt Circle/Dual Pattern Flexplate
Chevrolet Nova 1969 6.5L / 396 / V8
5.0L / 307 / V8
4.1L / 250 / L6
3.8L / 230 / L6
2.5L / 153 / L4
5.7L / 350 / V8
1900 - 2100 RPM Stall; Requires 10.75 in. Bolt Circle/Dual Pattern Flexplate
Chevrolet Nova 1970 7.4L / 454 / V8
6.6L / 402 / V8
5.0L / 307 / V8
4.1L / 250 / L6
3.8L / 230 / L6
2.5L / 153 / L4
6.5L / 396 / V8
5.7L / 350 / V8
1900 - 2100 RPM Stall; Requires 10.75 in. Bolt Circle/Dual Pattern Flexplate
Chevrolet Nova 1971 7.4L / 454 / V8
6.6L / 402 / V8
5.0L / 307 / V8
4.1L / 250 / L6
5.7L / 350 / V8
1900 - 2100 RPM Stall; Requires 10.75 in. Bolt Circle/Dual Pattern Flexplate
Chevrolet Nova 1972 6.6L / 402 / V8
5.0L / 307 / V8
4.1L / 250 / L6
5.7L / 350 / V8
1900 - 2100 RPM Stall; Requires 10.75 in. Bolt Circle/Dual Pattern Flexplate
Req. 10.75 in. Bolt Circle Or Dual Pattern Flexplate
Chevrolet Nova 1973 5.0L / 307 / V8
4.1L / 250 / L6
5.7L / 350 / V8
1900 - 2100 RPM Stall; Requires 10.75 in. Bolt Circle/Dual Pattern Flexplate
Req. 10.75 in. Bolt Circle Or Dual Pattern Flexplate
Chevrolet Nova 1974 4.1L / 250 / L6
5.7L / 350 / V8
1900 - 2100 RPM Stall; Requires 10.75 in. Bolt Circle/Dual Pattern Flexplate
Req. 10.75 in. Bolt Circle Or Dual Pattern Flexplate
Chevrolet Nova 1975 4.3L / 262 / V8
4.1L / 250 / L6
5.7L / 350 / V8
1900 - 2100 RPM Stall; Requires 10.75 in. Bolt Circle/Dual Pattern Flexplate
Req. 10.75 in. Bolt Circle Or Dual Pattern Flexplate
Chevrolet Nova 1976 4.1L / 250 / L6
5.0L / 305 / V8
5.7L / 350 / V8
1900 - 2100 RPM Stall; Requires 10.75 in. Bolt Circle/Dual Pattern Flexplate
Req. 10.75 in. Bolt Circle Or Dual Pattern Flexplate
Chevrolet Nova 1977 4.1L / 250 / L6
5.0L / 305 / V8
5.7L / 350 / V8
1900 - 2100 RPM Stall; Requires 10.75 in. Bolt Circle/Dual Pattern Flexplate
Req. 10.75 in. Bolt Circle Or Dual Pattern Flexplate
Chevrolet Nova 1978 4.1L / 250 / L6
5.0L / 305 / V8
5.7L / 350 / V8
1900 - 2100 RPM Stall; Requires 10.75 in. Bolt Circle/Dual Pattern Flexplate
Req. 10.75 in. Bolt Circle Or Dual Pattern Flexplate
Bolt Circle Diameter 10.750 in.
Bolt Circle Diameter (in) 10.75
California Proposition 65 Required No
Emission Code 5
Part Type Automatic Transmission Torque Converter
Stall Speed (RPM) 1900-2100
Trans Model GM- TH350 (Auto) 3 Speed, GM- TH400 (Auto) 3 Speed, GM- TH375 (Auto) 3 Speed, GM- TH375B (Auto) 3 Speed, GM- TH425 (Auto) 3 Speed
Trans Year 1989, 1990, 1991, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1966, 1967, 1968, 1969, 1970, 1978, 1979, 1980, 1981, 1982, 1984, 1985, 1986, 1987, 1988, 1965
Transmission TH350
Warranty Time 12 Months
