Classic Performance Complete Disc Brake Kit w/ Booster w/ OEM Stock Disc Spindles for 64-72 GM A Body 6474FBP-9

Classic Performance Complete Disc Brake Kit w/ Booster w/ OEM Stock Disc Spindles for 64-72 GM A Body 6474FBP-9
$1,423.99 ea
NEWARRIVING SOONEstimated Ship Date 07/21/2025 (If Ordered Today)
Model: 3084767
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
OVERSIZE 1
STORE PICKUP
[More Info]
1964-1972 GM A Body, 1967-1969 F Body, 1968-1974 X Body, 11" Rotor, 9" Booster

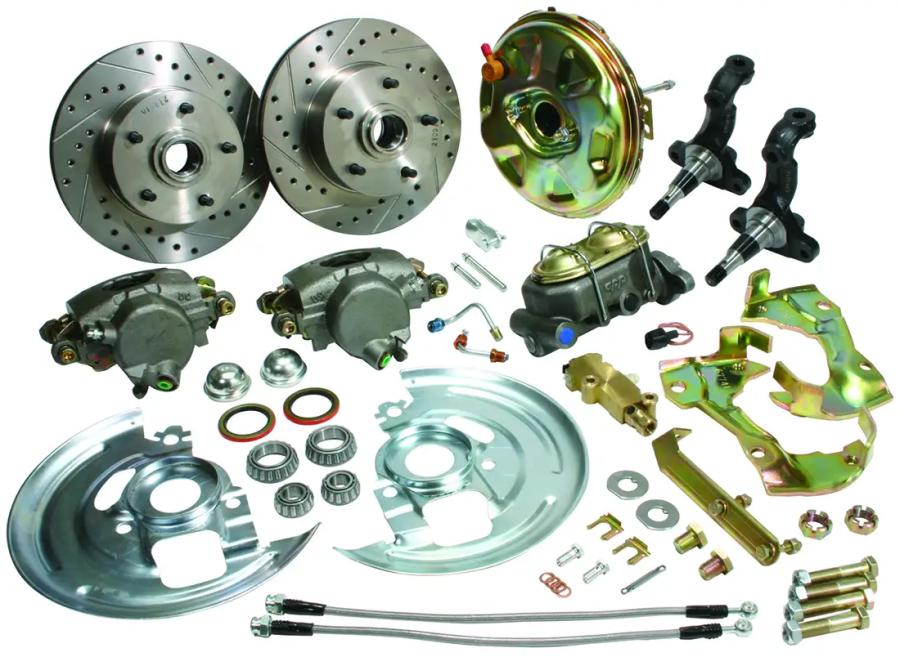

The CPP Complete Disc Brake Kit with Vacuum Booster with OEM Stock Disc Spindles (Part Number 6474FBP-9) fits 1964-1972 GM A Body, 1967-1969 F Body, and 1968-1974 X Body. It includes an 11" rotor and a 9" booster. Designed for optimal braking efficiency. Ensures reliable stopping power.
Kit Includes:
  • P/N: LM67048
    Description: A-6 Bearing Only, Sold as Each
    Quantity: 2-

  • P/N: 6474SMK-S
    Description: 1964-72 A Body, 1967-69 F Body, 68-1974 X Body, Includes Stock Spindles, Brackets, Dust Shield/Caps, Hardware
    Quantity: 1-

  • P/N: 8705S
    Description: Grease Seal, Sold as Each
    Quantity: 2-

  • P/N: 9SRB-O
    Description: 64-72 A-Body, 67-69 F-Body, 68-74 X-Body, 9" Gold Plated Booster
    Quantity: 1-

  • P/N: AR-31801
    Description: 5 x 4 3/4 Front Rotor, AFX Rotors
    Quantity: 2-

  • P/N: BHK-R10
    Description: 10mm bolt, Rubber Material
    Quantity: 1-

  • P/N: DNA
    Description: Parts Come Packaged Separately
    Quantity: 1-

  • P/N: PVKS-B1
    Description: 2 or 4 Wheel Disc, Brass, Driver's Side, Firewall Mount, Gold Zinc Bracket, 1/2x20 & 9/16x18 Master Ports
    Quantity: 1-

  • P/N: M-C118-LLF
    Description: 1 1/8" Master with 1/2 x 20 and 9/16 x 18 Ports, Ports on Left/Driver's Side
    Quantity: 1-

  • P/N: H-BBK
    Description:
    Quantity: 1-

  • P/N: LM11949
    Description: A-2 Bearing Only, Sold as Each
    Quantity: 2-

  • P/N: 4059M
    Description: 1980 Chevy Camaro, 10mm x1.5 CPP Banjo Bolt, Sold Individually
    Quantity: 1-

  • P/N: 4060M
    Description: 1980 Chevy Camaro, 10mm x1.5 CPP Banjo Bolt, Sold Individually
    Quantity: 1-

Downloads:

Download Name File Size
AFX_Booster_Bracket_instructions.pdf1.44MB
Bare-Bones-Disc-Brake-Instructions.pdf738.45KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years
Buick Skylark 1964 - 1972
Buick Special 1964 - 1969
Chevrolet Camaro 1967 - 1969
Chevrolet Chevelle 1964 - 1972
Chevrolet Chevy II 1968
Chevrolet El Camino 1964 - 1972
Chevrolet Monte Carlo 1970 - 1972
Chevrolet Nova 1969 - 1974
Oldsmobile 442 1964 - 1971
Oldsmobile Cutlass 1964 - 1972
Oldsmobile Vista Cruiser 1964 - 1972
Pontiac Firebird 1967 - 1969
Pontiac GTO 1964 - 1972
Pontiac LeMans 1964 - 1972
Pontiac Tempest 1964 - 1970
Pontiac Ventura 1971 - 1974

Specifications:

Bolt Pattern 5X4.75
Brake Booster Diameter 9
Brake Booster Finish Gold
Brake Booster Type Single Diaphragm
Brand CPP
Default Booster Size 9" Single Booster
Front Brake Hose Type Rubber
Front Caliper Finish Natural
Front Caliper Material Cast iron
Front Caliper Piston Qty 1
Front Disc Brake Brackets Included Yes
Front Disc Brake Line Conversion Included No
Front Rotor Diameter 11
Front Spindle Included Yes
Master Cylinder Finish None
Master Cylinder Material Cast Iron
Master Cylinder Type CPP Left Side Ports
Mounting Location Firewall Mount
Power Brakes Yes
Product Location Front
Proposition 65 WARNING: This product may contain chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm.
Rotor Hub Type One Piece Rotor
Rotor Style Plain
SKU 6474FBP-9
Spindle Type Stock Height Disc Brake Spindle
