Wilwood Brakes Forged Dynalite Front Drag Brake Kit 140-8175-BD

Wilwood Brakes Forged Dynalite Front Drag Brake Kit 140-8175-BD
Wilwood Brakes Forged Dynalite Front Drag Brake Kit 140-8175-BDWilwood Brakes Forged Dynalite Front Drag Brake Kit 140-8175-BDWilwood Brakes Forged Dynalite Front Drag Brake Kit 140-8175-BDWilwood Brakes Forged Dynalite Front Drag Brake Kit 140-8175-BDWilwood Brakes Forged Dynalite Front Drag Brake Kit 140-8175-BDWilwood Brakes Forged Dynalite Front Drag Brake Kit 140-8175-BD
$1,430.99 ea
NEWARRIVING SOONEstimated Ship Date 04/11/2024 (If Ordered Today)34 Available from WILWOOD ENGINEERING as of 03/28/2024
Model: 3920362
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY

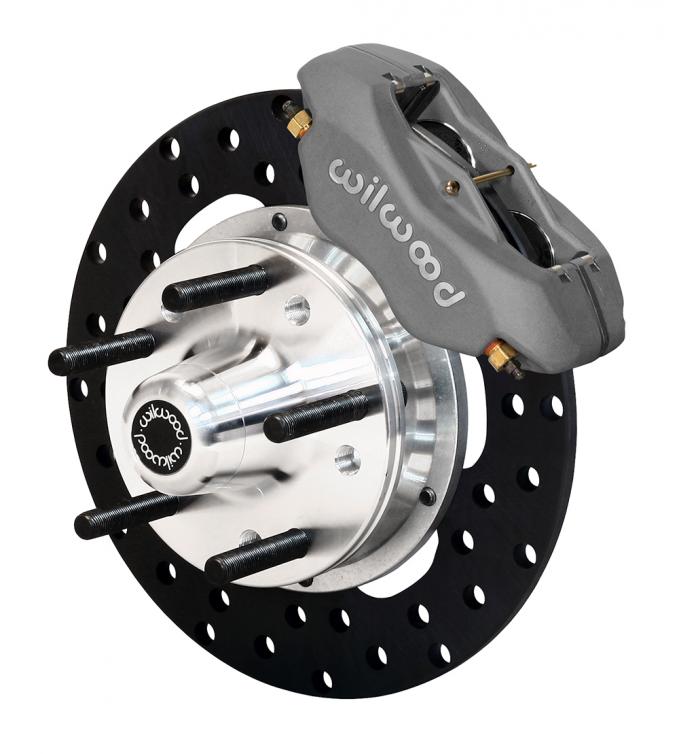

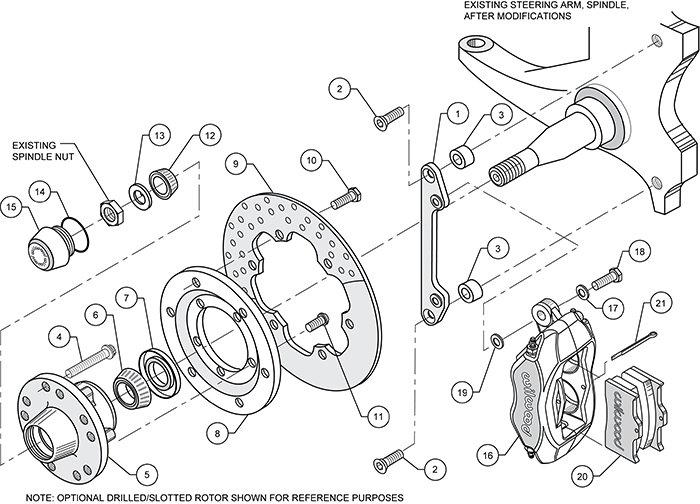

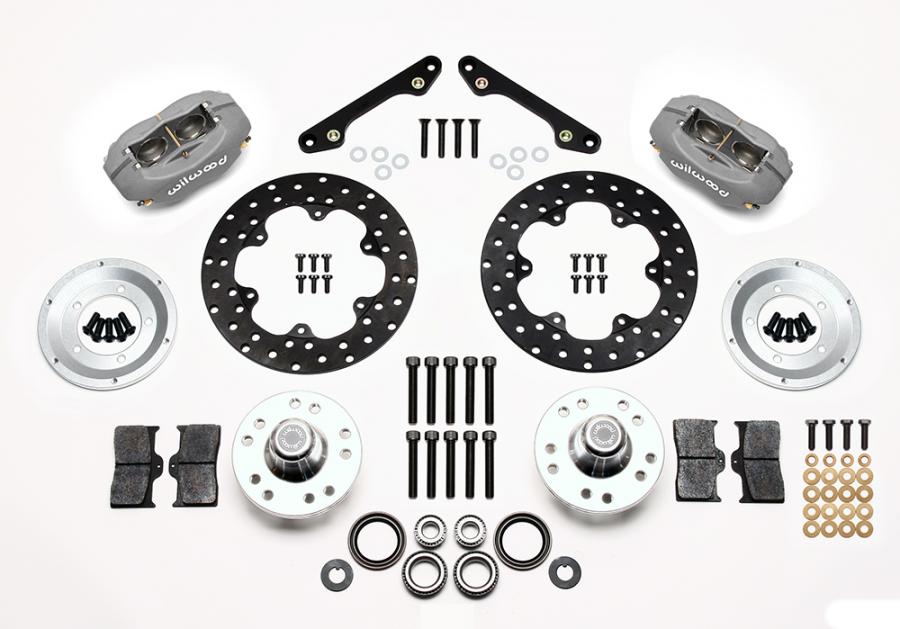

FDL Front Drag kits are drag racing’s most popular front brake kits. FDL kits are available for the popular muscle car spindles and select aftermarket front struts used on four-wheel disc cars weighing up to 2,800 pounds, or rear drum brake equipped cars weighing up to 2,400 pounds. Forged billet FDL four piston calipers mount directly to the spindle with a bolt-on bracket. Forged billet, five lug hubs with direct mount steel rotors combine to provide an average weight savings of over 30 pounds compared to stock drum or disc brakes. Kits include all new hardware, wheel bearings, seals and extra length lug studs.

Fitment Notes

1. Front kits fit 11" rotor spindles only.
2. Requires modifications to original spindle

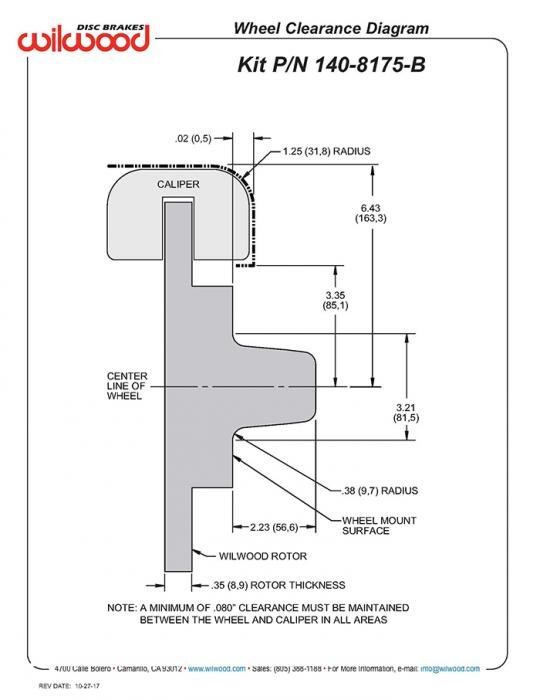

3. Kit may fit some 14" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds456.pdf511.82KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Fitment Notes
Chevrolet Nova 1979 KIT,DRAG,FRONT,CAMARO 79-81,MD DISC SPINDLE,DRILLED,ANO; RTR:10.75-IN DIA, DRILLED STEEL ROTOR, DRILLED; CLPR:FORGED DYNALITE, 4-PISTON, TYPE III ANO
Front kits fit 11" rotor spindles only.
Requires modifications to original spindle
Kit may fit some 14" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Disc Brake Spindle

Specifications:

Details
Part Type Disc Brake Caliper / Rotor / Pad Kit
Kit Components & Specs / Rotors
Bedded No
Design Type Solid
Dynamically Balanced No
Left Hand - Part No 160-3306
Material Steel
Outside Diameter (in) 10.75
Right Hand - Part No 160-3306
Style Drilled
Surface Finish Black Oxide
Type Drilled Steel Rotor
Vane Count Solid
Width (in) 0.35
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
CrossOver O-Ring Kit 130-10540
O-ring Kit 130-2655
Pad Retainer 180-0054
Replacement Piston 1 200-7528
Replacement Piston 2 200-7528
Wear Plate - Left Hand 300-5875
Wear Plate - Right Hand 300-5875
Kit Components & Specs / Hubs
Bolt Circle 1 5 x 4.50
Bolt Circle 2 5 x 4.75
Finish Color Bare
Hub - Part No 270-7310
Material Aluminum
Mount Style Direct / Adapter
Stud Diameter - BC 1 1/2-20
Stud Diameter - BC 2 1/2-20
Type Hub - Solid Rotor Offset

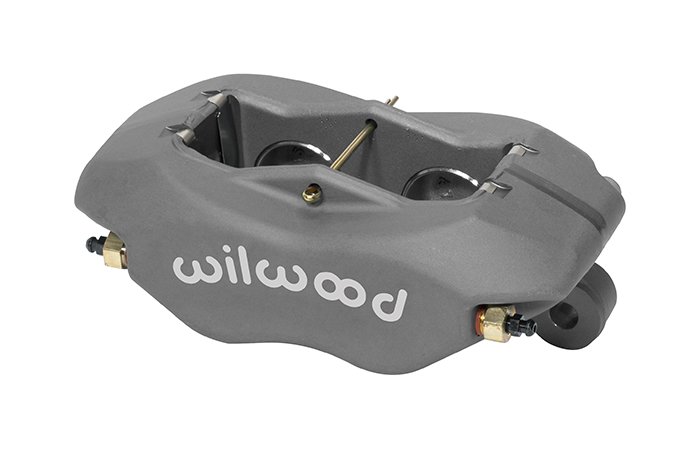

Kit Components & Specs / Calipers
Brake Pad Area (In²) 6.36
Brake Pad Plate 7112
Brake Pad Volume (In³) 2.1
Finish Color Type III Ano
Left Hand - Part No 120-6818
Mount Type Lug
Pad Compound BP-10
Piston 1 Bore (in) 1.75
Piston 2 Bore (in) 1.75
Piston Area (In²) 4.80
Piston Count 4
Piston Type Stainless
Right Hand - Part No 120-6818
Type Forged Dynalite
(Increase / Decrease Track Width)
Caliper Type 4 - Type III Ano
Min Wheel Diameter Req'd* 15
Mount Type Lug
Rotor Diameter 10.75
Spindle Type Factory Disc Spindle
Parts & Accessories / *Brake Lines Needed
Front Line Kit 220-10509
Kit Summary
OE Hub Offset +.31
