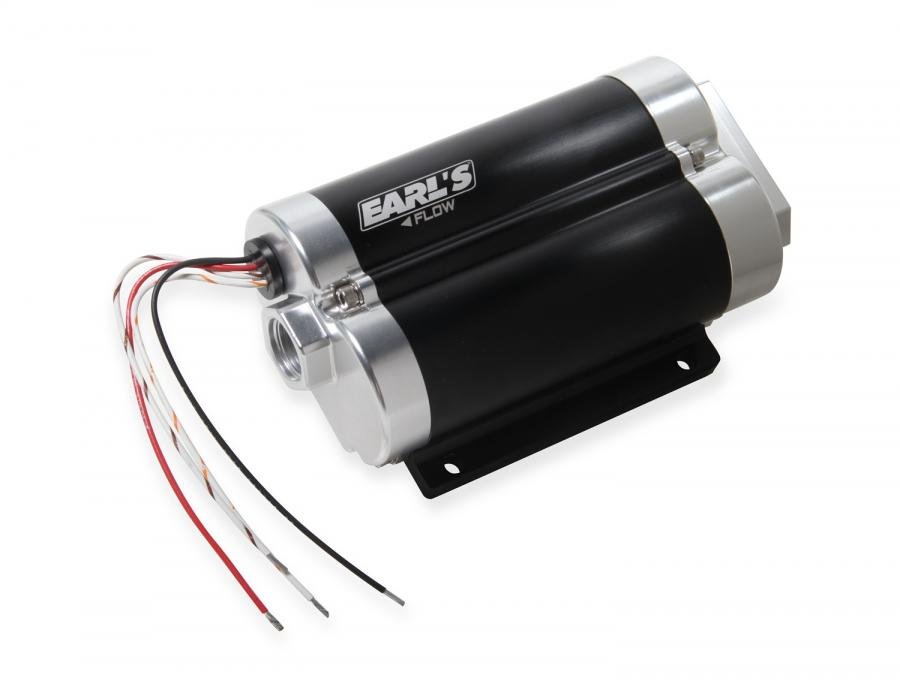

STANDARD*Pump gas compatible for intermittent or under 90 degree ambient temperature use
Pump gas use recommendations:
• This pump is compatible with pump gas, but is not recommended for street driven vehicles where the ambient temperature is regularly above 90 degrees
• For street driven vehicles in high temps with pump gas, Holley recommends part numbers 12-1200-2 or 12-1600-2 for optimum hot fuel handling
• Proper fuel system engineering is critical for maximum performance. Please see Holley Fuel System Chart for information about proper installation of your fuel system.
• To reduce fuel temperatures and vapor lock issues, it is recommended to operate these pumps using one pump for daily driving and low power levels and bring the second pump in with a pressure switch or other device when fuel flow needs increase. This will reduce heating of the fuel load by eliminating excess fuel circulating to the front of the vehicle, thru the fuel rails and back the tank.
Will work with E-85!
These pumps do not have an internal bypass. A bypass style regulator and return line are required.
This pump is not designed to use a standard conical seat style union in the inlet or outlet of the pump. Example: Part # AT981510ERL. Use of this style fitting will block flow and WILL lead to poor performance and pump failure. The ONLY correct fitting to use is a contoured port fitting with an O-ring seal such as :Part # AT985010ERL.
*Pump gas compatible for intermittent or under 90 degree ambient temperature use
Pump gas use recommendations:
• This pump is compatible with pump gas, but is not recommended for street driven vehicles where the ambient temperature is regularly above 90 degrees
• For street driven vehicles in high temps with pump gas, Holley recommends part numbers 12-1200-2 or 12-1600-2 for optimum hot fuel handling
• Proper fuel system engineering is critical for maximum performance. Please see Holley Fuel System Chart for information about proper installation of your fuel system.
• To reduce fuel temperatures and vapor lock issues, it is recommended to operate these pumps using one pump for daily driving and low power levels and bring the second pump in with a pressure switch or other device when fuel flow needs increase. This will reduce heating of the fuel load by eliminating excess fuel circulating to the front of the vehicle, thru the fuel rails and back the tank.
Will work with E-85!
These pumps do not have an internal bypass. A bypass style regulator and return line are required.
This pump is not designed to use a standard conical seat style union in the inlet or outlet of the pump. Example: Part # AT981510ERL. Use of this style fitting will block flow and WILL lead to poor performance and pump failure. The ONLY correct fitting to use is a contoured port fitting with an O-ring seal such as :Part # AT985010ERL.
| Download Name | File Size |
| holleyfuelsystems_chart1.pdf | 360.32KB |
| 199r11109.pdf | 975.52KB |
| Application | Universal |
| Emission Code | 5 |
| Forced Induction HP@43PSI | 1400 |
| Forced Induction HP@60PSI | 1200 |
| Forced Induction HP@8PSI | 1600 |
| Free Flow GPH | 200 |
| Fuel System | Carbureted, EFI |
| Fuel Type | Diesel |
| Fuel Type | Gasoline |
| GPH@43PSI | 156 |
| GPH@60PSI | 140 |
| GPH@8PSI | 200 |
| Inlet Size | 2 x 10 AN O-Ring - 7/8-14 SAE |
| LPH@43PSI | 590 |
| LPH@60PSI | 530 |
| LPH@8PSI | 720 |
| Material | Aluminum |
| Naturally Aspirated HP@43PSI | 1800 |
| Naturally Aspirated HP@60PSI | 1600 |
| Naturally Aspirated HP@8PSI | 2100 |
| Outlet Size | 10 AN O-Ring - 7/8-14 SAE |
| Part Type | Electric Fuel Pump |
| Product Type | Fuel Pump |
| Proposition 65 | www.P65Warnings.ca.gov |
| Pump Body Color | Black Anodized |
| Warranty | Limited 90 Day |
