Holley Premium Mid-Mount Complete Accessory System 20-180

Holley Premium Mid-Mount Complete Accessory System 20-180
Holley Premium Mid-Mount Complete Accessory System 20-180Holley Premium Mid-Mount Complete Accessory System 20-180Holley Premium Mid-Mount Complete Accessory System 20-180Holley Premium Mid-Mount Complete Accessory System 20-180Holley Premium Mid-Mount Complete Accessory System 20-180Holley Premium Mid-Mount Complete Accessory System 20-180Holley Premium Mid-Mount Complete Accessory System 20-180Holley Premium Mid-Mount Complete Accessory System 20-180Holley Premium Mid-Mount Complete Accessory System 20-180Holley Premium Mid-Mount Complete Accessory System 20-180Holley Premium Mid-Mount Complete Accessory System 20-180Holley Premium Mid-Mount Complete Accessory System 20-180Holley Premium Mid-Mount Complete Accessory System 20-180Holley Premium Mid-Mount Complete Accessory System 20-180Holley Premium Mid-Mount Complete Accessory System 20-180
$5,435.99 ea
NEWARRIVING SOONEstimated Ship Date 10/30/2024 (If Ordered Today)1 Available from HOLLEY PERFORMANCE PRODUCTS as of 10/11/2024
Model: 3992009
OVERSIZE 1

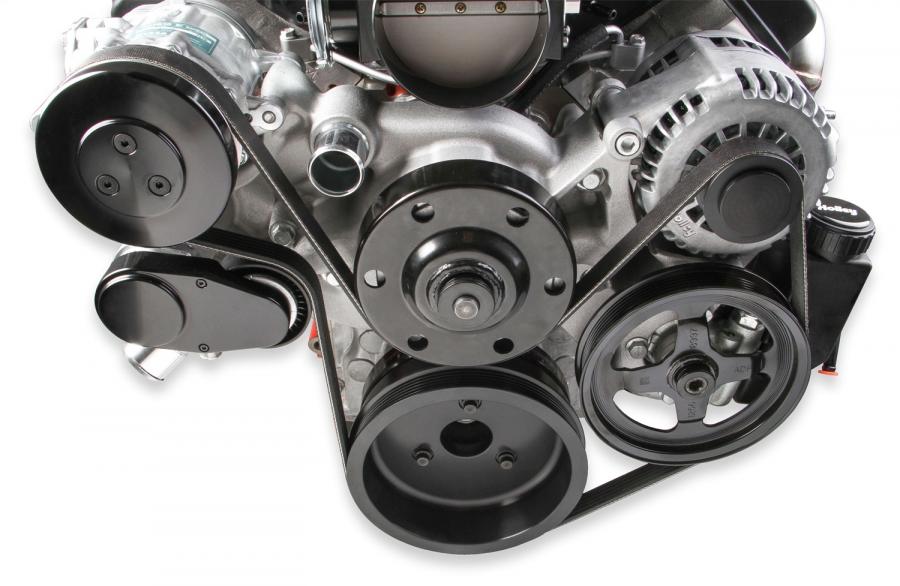

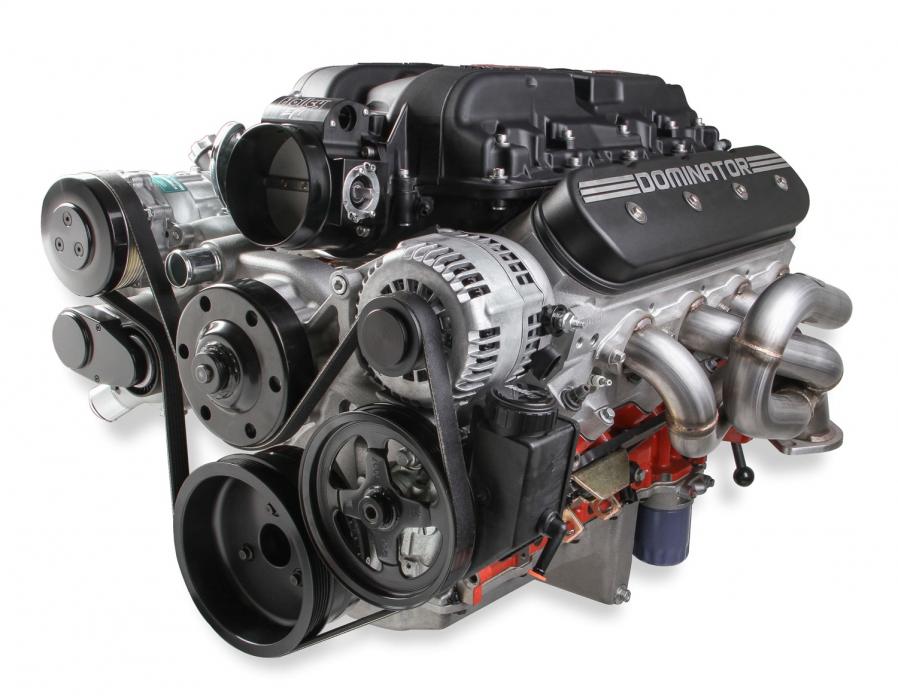

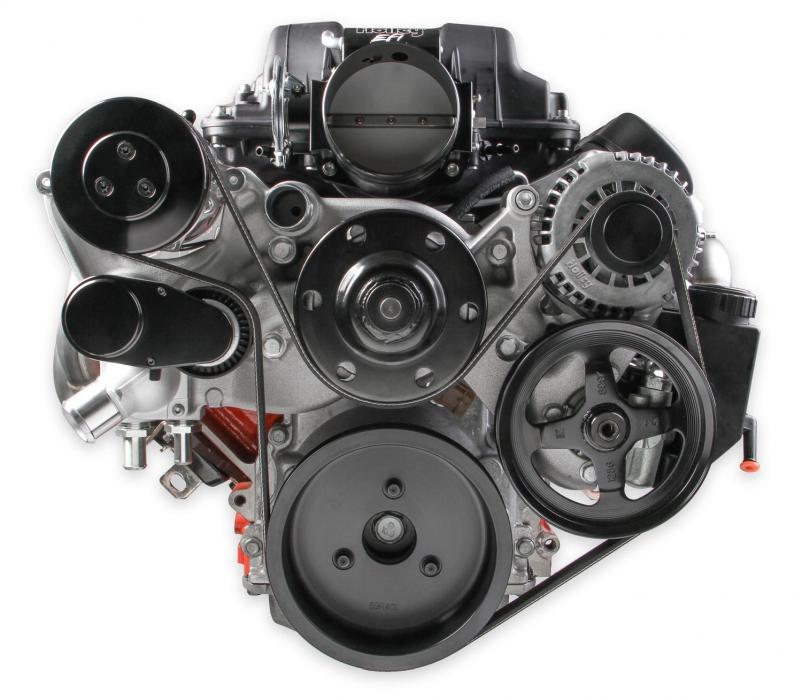

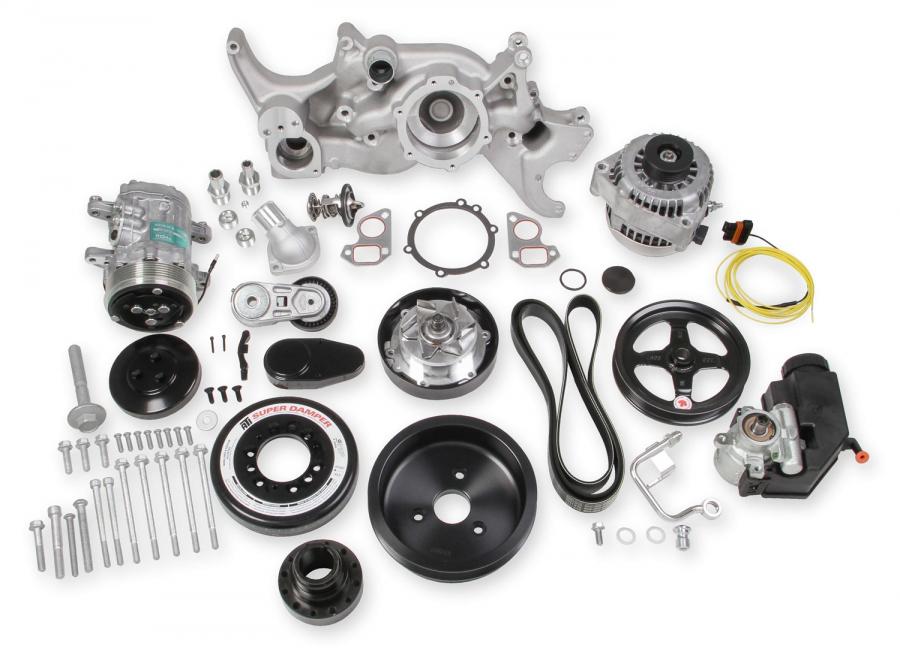

Holley's Premium Mid-Mount complete accessory system has all accessories pulled in tighter than other accessory drives. At the heart of the system is a "bracketless" design, where the accessories bolt directly to the water pump for a clean, integrated form. The design offers superb engine visibility to show off your horsepower, not your accessories. Among the many swap friendly features are bottom heater outlets for clearance in tight applications. The Holley designed alternator is just as innovative. This premium alternator utilizes 6-phase technology as found on the C7 Corvette. The water pump also shares its design efficiencies with that of the C7 Corvette. The compact and reliable SD7 A/C compressor and Type II P/S pump with baffled reservoir are also integrated. The Mid-Mount drive completes Holley's trilogy of accessory solutions giving a third option compared to the High and Low-Mount previously released. All three accessory solutions are for LS engines. When we say "complete", we mean complete. The Mid-Mount system comes with everything you need. All accessories are included; the water pump, A/C compressor, Alternator, P/S pump with reservoir, and an SFI certified damper w/hard anodized billet crank pulley. All pulleys and the belt are supplied. Even heater hose adapters, power steering to -6 AN hardline, and the alternator plug/harness are included. Easy assembly was a priority during the entire development of this accessory solution. Color graphical instructions walk you through every step of the ultra-easy installation. The Premium Mid-Mount system comes with dress up pulley covers and an SFI certified damper. Partnered with this damper is a billet 6061-T6 aluminum hard anodized crank pulley. This system is ready for the racetrack if you want to play or just be ready for anything on the street. Patent - www.holley.com/patents/
Features:
  • Bracketless accessory mounting with ultra-easy assembly
  • Bottom outlet heater hose options for swap application clearance

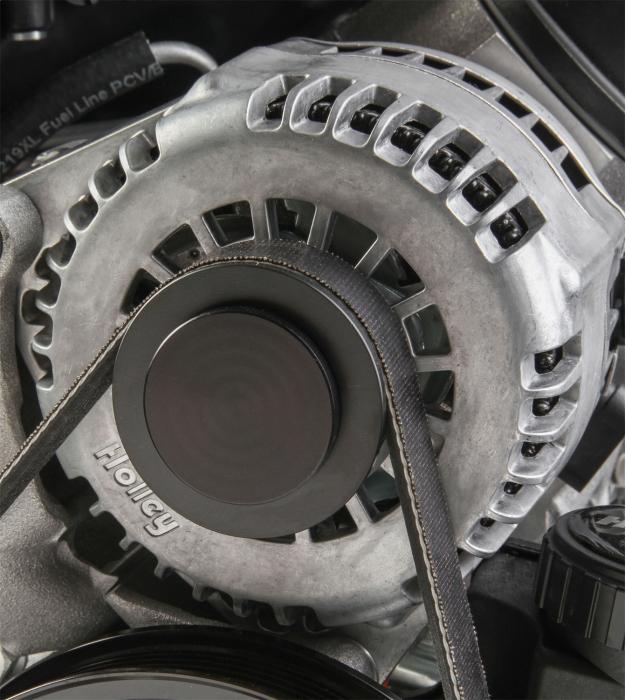

  • LT1 style premium 150 amp alternator
  • LT1 style water pump cartridge design
  • Compact SD7 A/C compressor

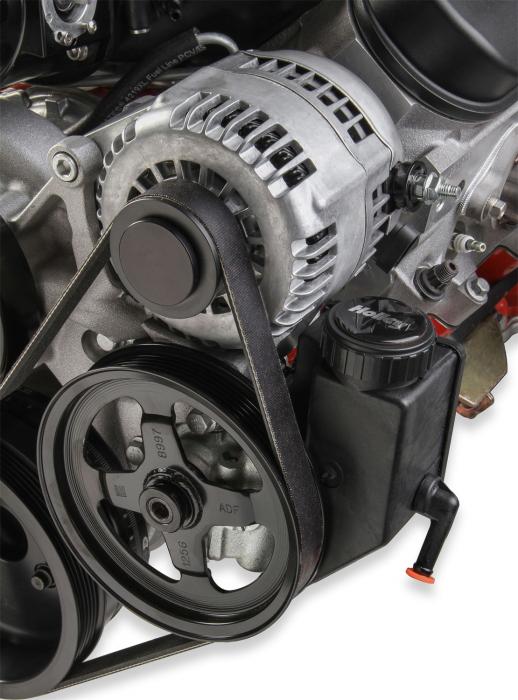

  • Type II power steering pump with baffled reservoir
  • P/S adapter hardline to AN -6 adapter included
  • Steam tube input port
  • Shortened top outlet nipple for more radiator hose turns and routing room
  • OE pulley ratios for optimal accessory performance
  • No adapters/spacers required!

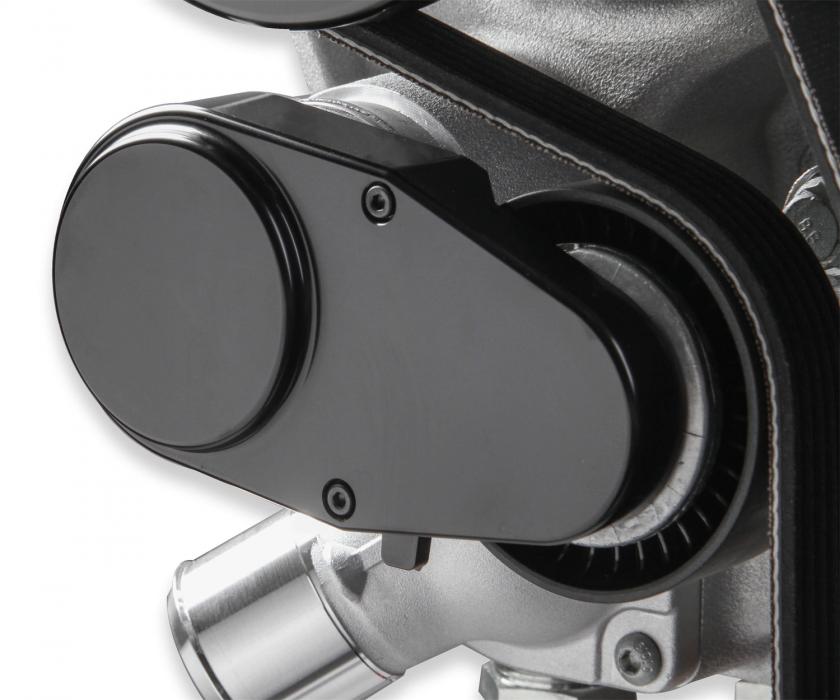

  • Billet tensioner cover
  • Billet alternator, and compressor pulley covers

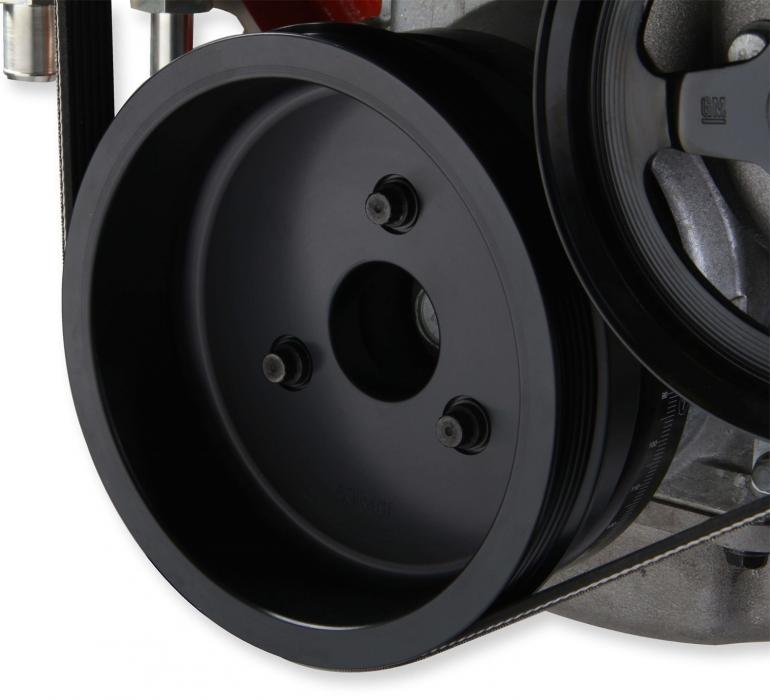

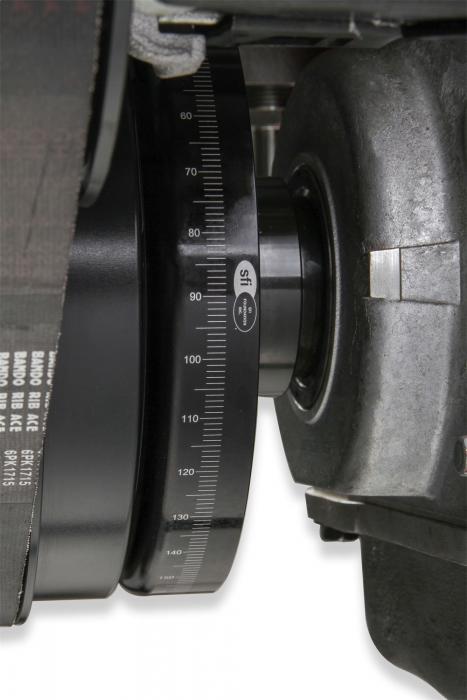

  • SFI certified damper w/hard anodized billet crank pulley
  • Works with all common aftermarket and factory Throttle bodies and intakes.
  • Works with VVT applications
  • Works with Hooker turbo manifolds.
  • Fit ALL wet sump LS engines except supercharged. Also will fit dry sump LS engines converted to wet sump.
The power steering pump included can be used Hydroboost systems. Please refer to the flow specs on part number 198-101
Installation Notes:
The power steering pump included can be used Hydroboost systems. Please refer to the flow specs on part number 198-101
About Holley Performance Products

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

Downloads:

Download Name File Size
199r11335.pdf2.2MB

Videos:

Specifications:

A/C Compressor Included Yes
A/C Compressor Type SD7
Accessory Drive Style Mid-Mount
Alternator Amperage 150
Alternator Included Yes
Application GM LS
Belt Included Yes
Choose Your Part Accessory Drive Kits
Damper Included Yes
Damper Style SFI Certified
Emission Code 5
Engine GM Small Block Gen III/IV (LS Based)
Finish Cast
Inlet Size 35.4mm/1.4"
Material Cast Aluminum
Output 150 Amps
Part Type Accessory Drive Component Mount Set
Power Steering Hardline Included Yes
Power Steering Pulley Included Yes
Power Steering Pump Included Yes
Power Steering Reservoir Included Yes
Product Type Accessory Drive Kits
Pulley Style Serpentine
Tensioner Included Yes
Thermostat Included Yes
Warranty Limited 90 Day
Water Neck Included Yes
Water Pump Included Yes
Water Pump Pulley Included Yes
