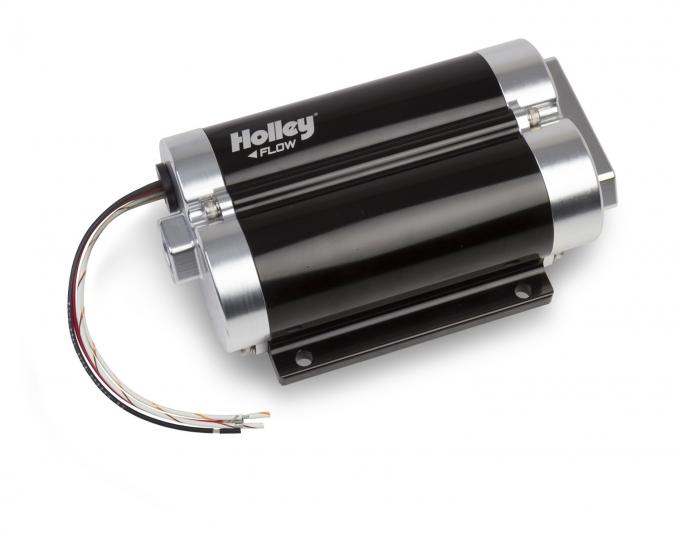

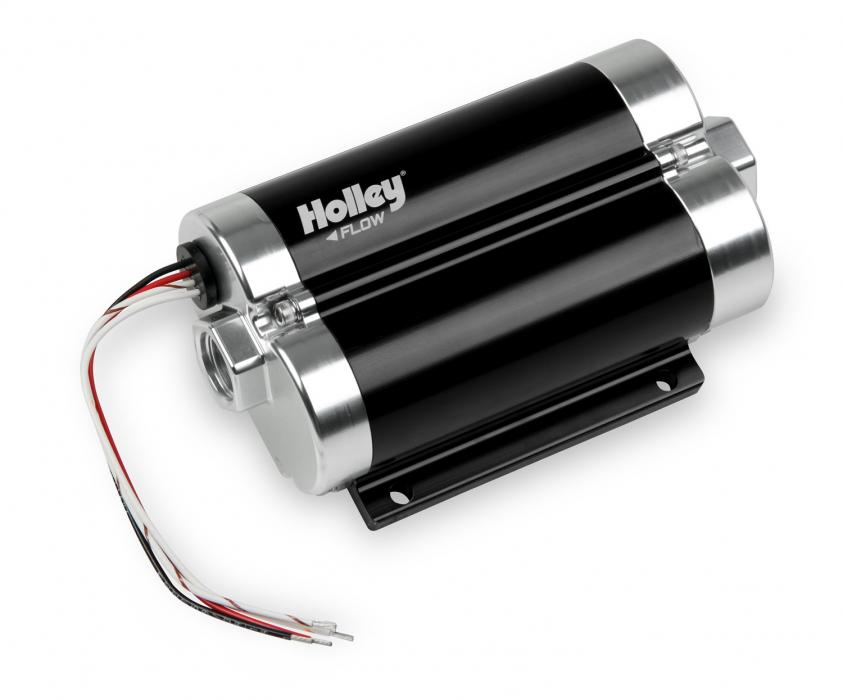

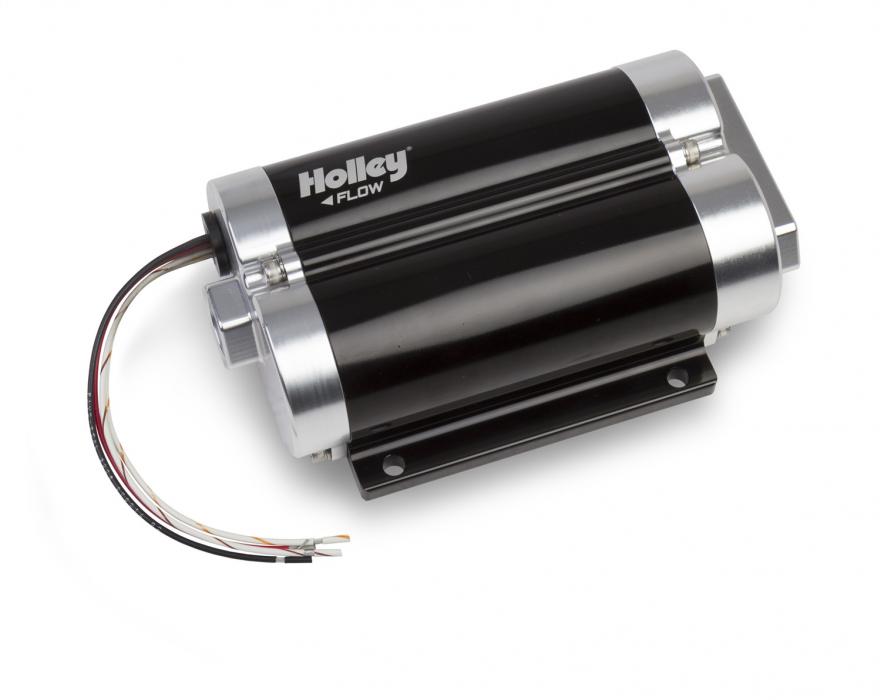

Holley Dominator In-Line Billet Fuel Pump 12-1600-2

Holley Dominator In-Line Billet Fuel Pump 12-1600-2
Holley Dominator In-Line Billet Fuel Pump 12-1600-2
$808.99 ea
NEWOUT OF STOCK
Model: 3991187
Supplier has not provided any fitment data for this product.
STANDARD
DELIVERY
Need to feed some serious horsepower? Have a nitrous or forced induction power plant that also sees street duty? Holley's new Dominator in–line fuel pumps are the answer! The patent pending twin pump design allows you to use one pump for cruising and both pumps when you activate the nitrous switch or start building boost! By staging the second pump, you eliminate the unnecessary recirculating and heating of extra fuel which can lead to poor performance and hot fuel issues. As an added benefit for the hard core enthusiasts that run events like Hot Rod Power Tour and the Baja 1000, the extra pump offers the peace of mind that you will always finish what you start! For hard core race vehicles, both pumps can be wired for full time duty to get maximum performance and are proven with 18.5 volt compatibility at pressures up to 80 psi. At only 5.1 lbs, they weigh half a pound less than competitive 1000 horsepower pumps yet have twice the features!
Features:
  • Improved Hot Fuel Handling
  • Billet Aluminum Construction For Durability and Good Looks
  • 10AN O-Ring Inlet/Outlet For High Flow and Superior Sealing
  • Excellent For Use With Carbureted Or EFI Applications
  • Fully Submersible In-Tank Space Savings and Less Plumbing
  • Compatible With 12V To 18.5V Systems For Street Or Race Use
  • Compact For Easy Installation On Frame Rails Or Other Tight Areas
  • Twin Pump Design Allows The Use Of Both Pumps
  • Patent Pending Dual Pump Technology
  • Proven Durability Beyond 3000 Hours In Gasoline
  • Weighs Only 5.1 lbs..
  • Max Current Draw Is 28 Amps
Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations
Installation Notes:
These pumps do not have an internal bypass. A bypass style regulator and return line are required. NOT FOR USE WITH METHANOL! Will not work with E-85 or Diesel! This pump is not designed to use a standard conical seat style union in the inlet or outlet of the pump. Example: Part # AT981510ERL. Use of this style fitting will block flow and WILL lead to poor performance and pump failure. The ONLY correct fitting to use is a contoured port fitting with an O-ring seal such as :Part # AT985010ERL.

About Holley Performance Products

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

Downloads:

Download Name File Size
Warranty_Policy.pdf14.65KB
199r10573-1rev.pdf946.43KB
holleyfuelsystems_chart1.pdf360.32KB

Videos:

Specifications:

Application Universal
Body Color Black Anodized
Emission Code 5
Forced Induction HP@43PSI 1150
Forced Induction HP@60PSI 1050
Forced Induction HP@8PSI 1430
Free Flow GPH 160
Fuel System Carbureted
Fuel System Type Carbureted, EFI
Fuel Type Gasoline
GPH@43PSI 127
GPH@60PSI 113
GPH@8PSI 155
Housing Color Black Anodized
Inlet Size 2.000 in. x 10AN O-Ring - 0.875 in. -14 SAE
LPH@43PSI 427
LPH@60PSI 480
LPH@8PSI 587
Material Aluminum
Naturally Aspirated HP@43PSI 1600
Naturally Aspirated HP@60PSI 1330
Naturally Aspirated HP@8PSI 1800
Outlet Size 10AN O-Ring - 0.875 in. - 14 SAE
Part Type Electric Fuel Pump
Pump Body Color Black Anodized
WARNING CA Proposition 65 WARNING: Cancer and Reproductive Harm
