Holley EFI Billet Bypass Fuel Pressure Regulator Kit 12-848KIT

Holley EFI Billet Bypass Fuel Pressure Regulator Kit 12-848KIT
Holley EFI Billet Bypass Fuel Pressure Regulator Kit 12-848KITHolley EFI Billet Bypass Fuel Pressure Regulator Kit 12-848KITHolley EFI Billet Bypass Fuel Pressure Regulator Kit 12-848KIT
$464.99 ea
NEWARRIVING SOONEstimated Ship Date 05/17/2024 (If Ordered Today)6 Available from HOLLEY PERFORMANCE PRODUCTS as of 04/27/2024
Model: 4952818
STANDARD
DELIVERY

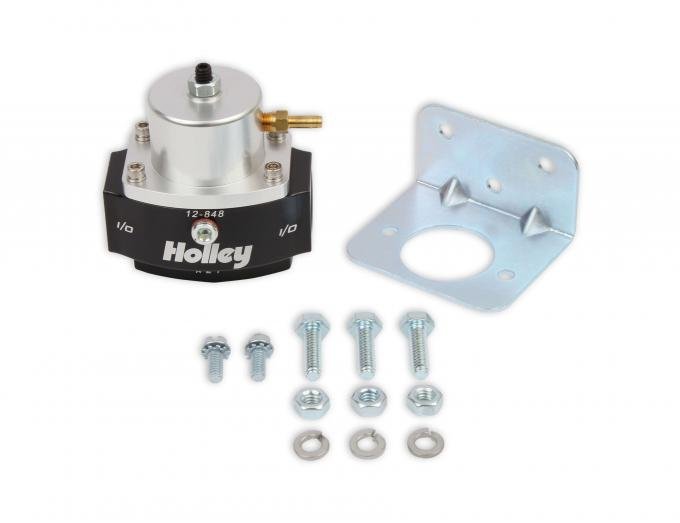

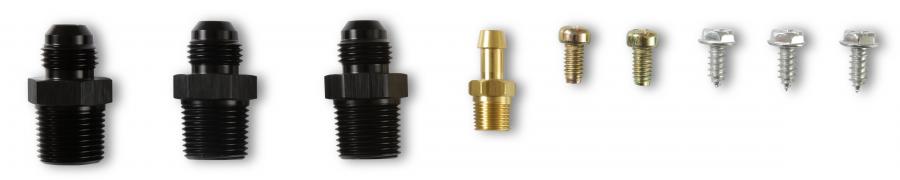

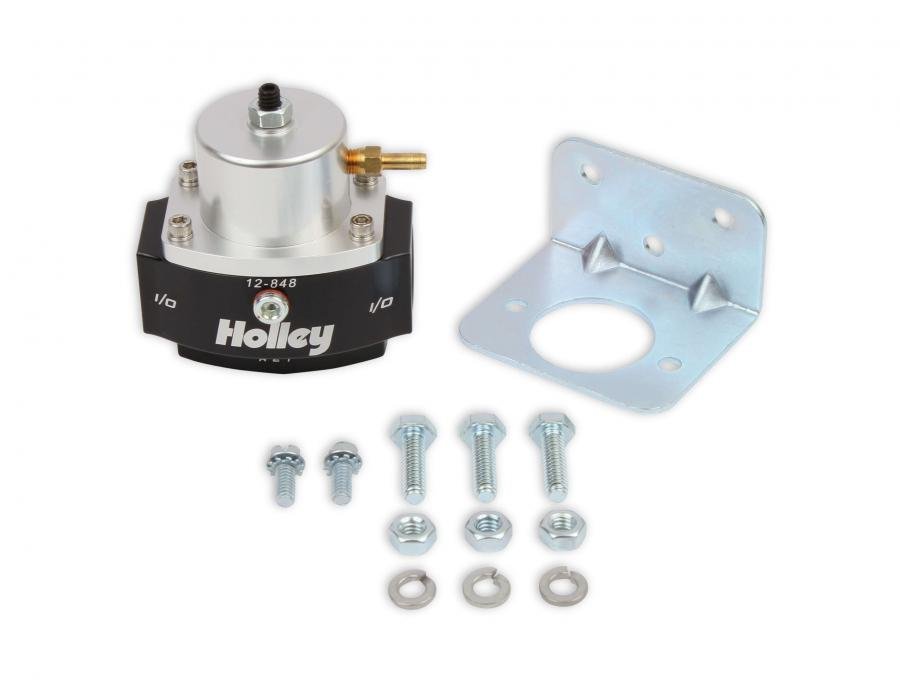

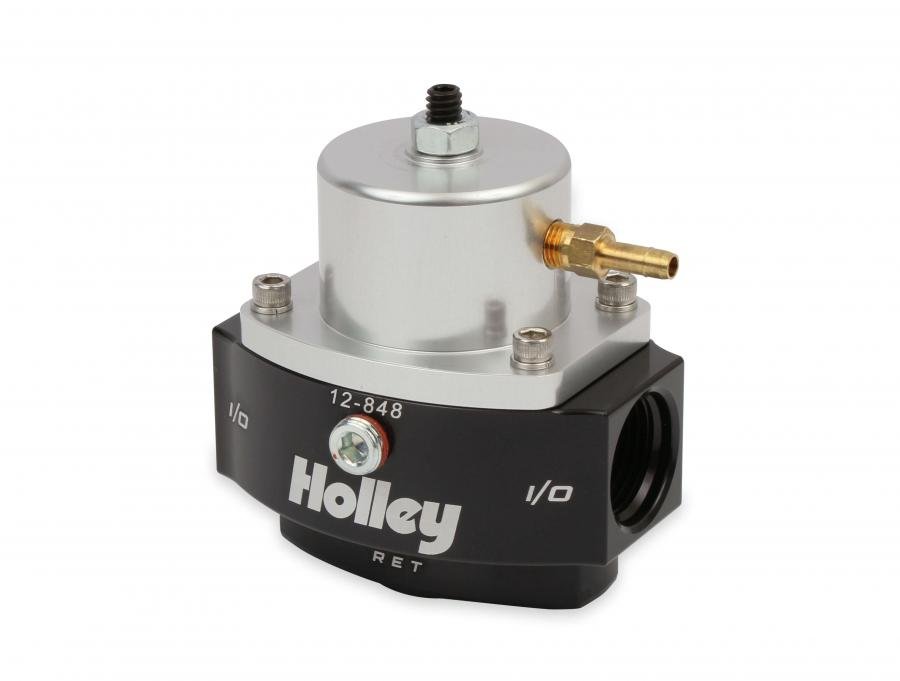

Holley EFI Billet Bypass Style Fuel Pressure Regulator Kits are part of a complete line of fuel system products from Holley. The included 12-848 regulator features a billet aluminum body and a black finish for corrosion resistance and good looks. The regulator contains 10 AN in/out ports, a 8 AN return port, a 1/8" NPT gauge port, and a 1/8" NPT vacuum port for Boost Reference (1:1). In addition, 3 adapter fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included.
Features:
  • Die Cast Aluminum Construction
  • Adjustable from 15-60 psi for precise fuel pressure adjustments
  • Used in return style systems with a line back to the fuel tank
  • 10 AN O-ring Inlet, Outlet, and 8 AN O-ring Return Port

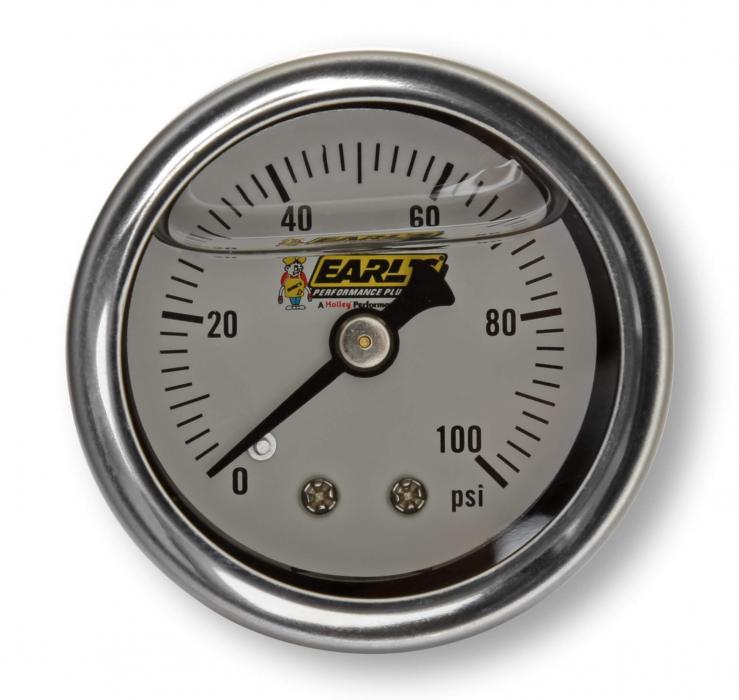

  • 1/8” NPT Gauge Port and Earl's Fuel Pressure Gauge (100187ERL)
  • 1/8" NPT Boost Reference (1:1) and Barbed Fitting
  • Mounting Bracket Included

About Holley Performance Products

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

Videos:

Specifications:

Color Black
Emission Code 5, 3
Fuel System EFI
Fuel Type Gasoline
Inlet Size 10 AN O-ring
Material Aluminium
Outlet Size 10 AN O-ring
Part Type Fuel Injection Pressure Regulator
Pressure Range 15-60 PSI
Product Type Fuel Pressure Regulator
Proposition 65 www.P65Warnings.ca.gov
Return Size 8 AN O-Ring
Style Bypass
Warranty Limited 90 Day Warranty
