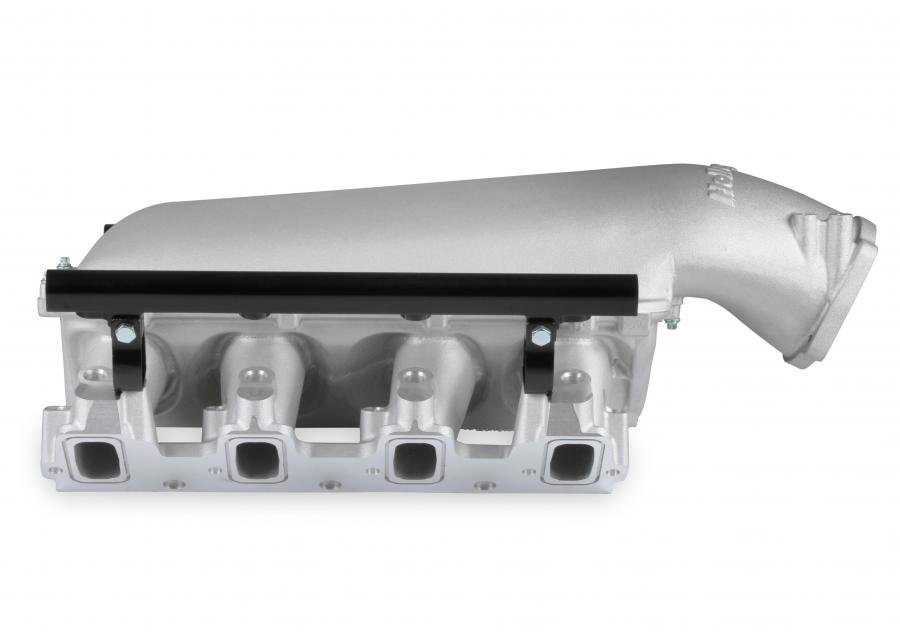

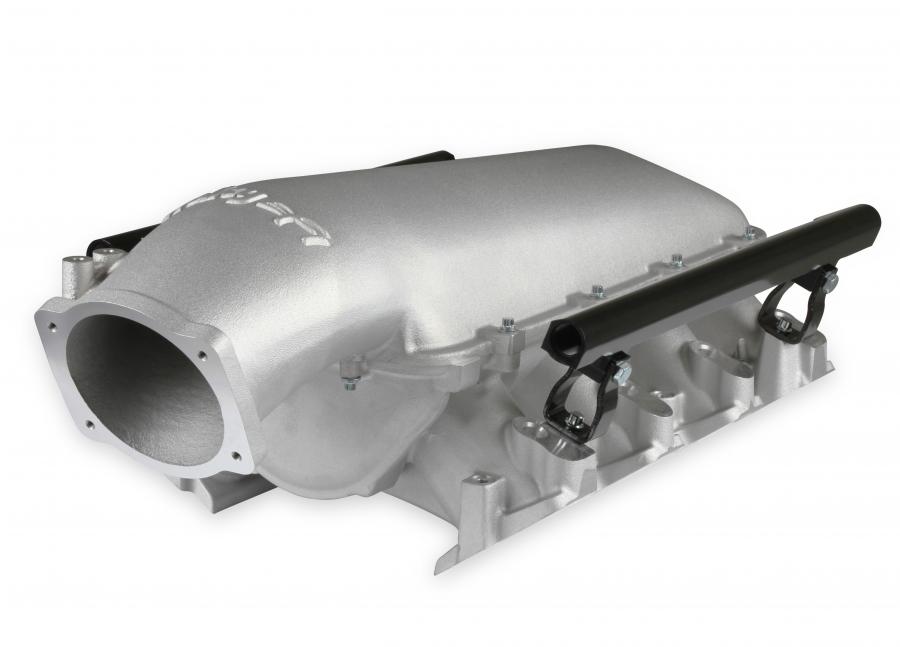

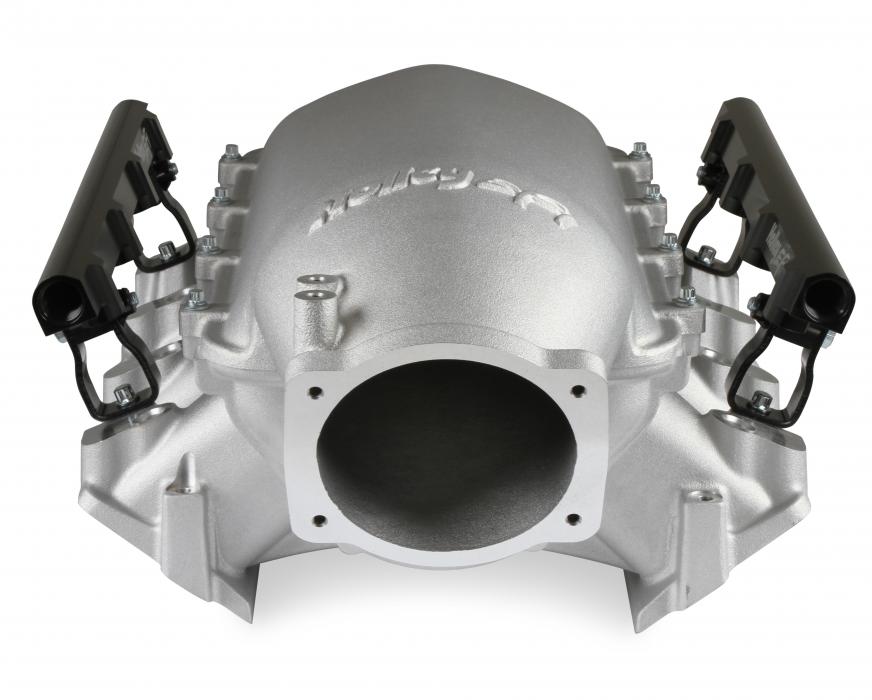

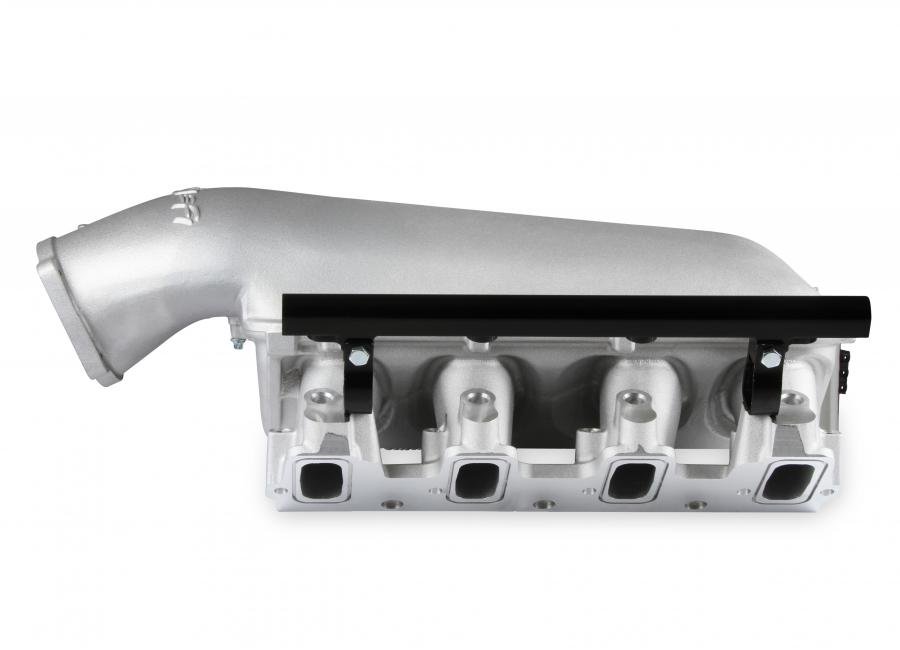

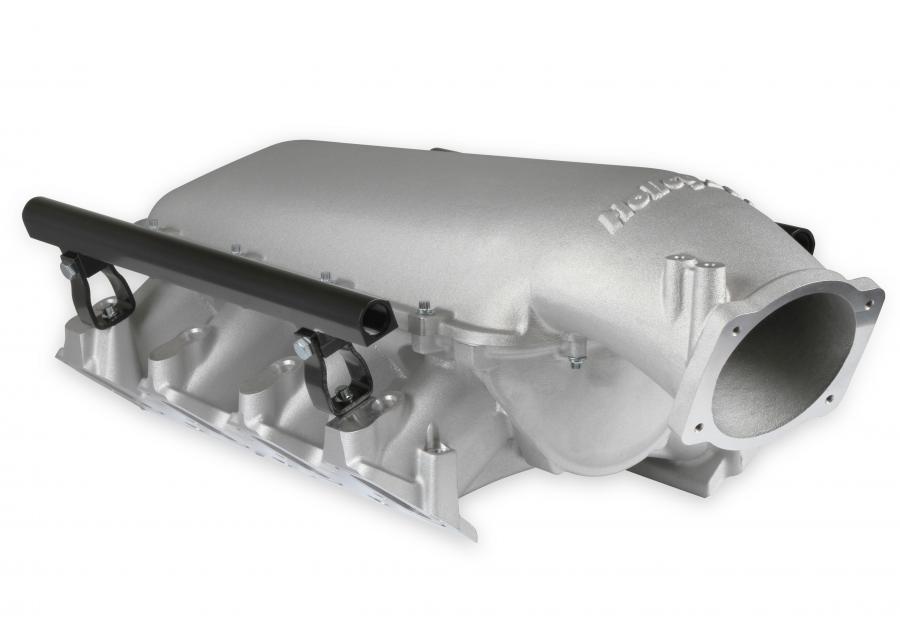

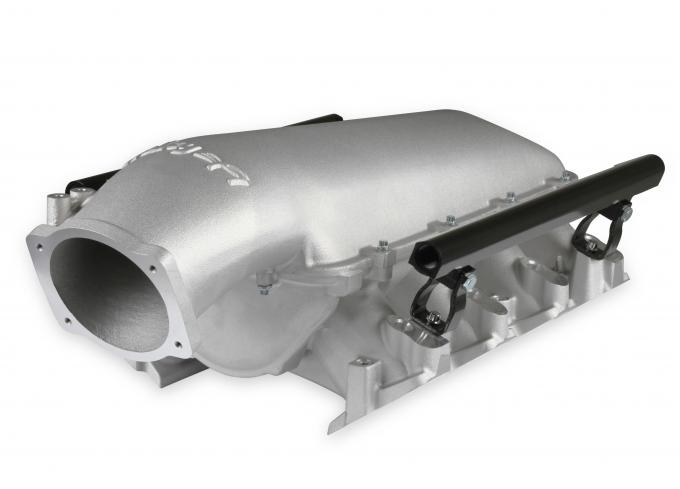

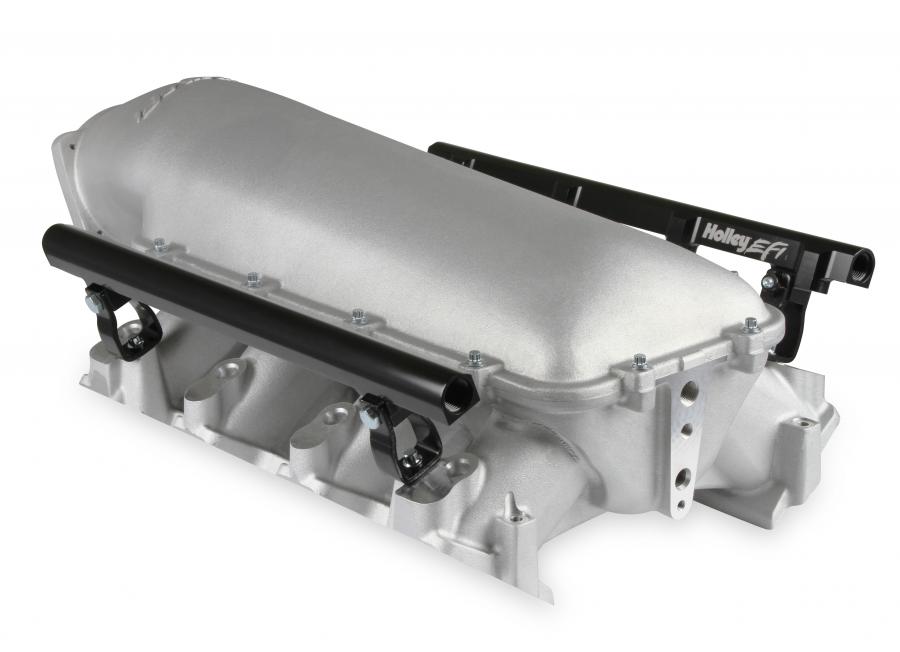

The Holley LS3 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped
with GM LS3/L92 cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram
intake manifolds are designed for forced induction (supercharged or turbocharged) engine
applications and the 105 mm throttle body part number 112-581 or similar models. The base intake
manifold is designed with a low height to aid the packaging of a plenum mounted air-to-water

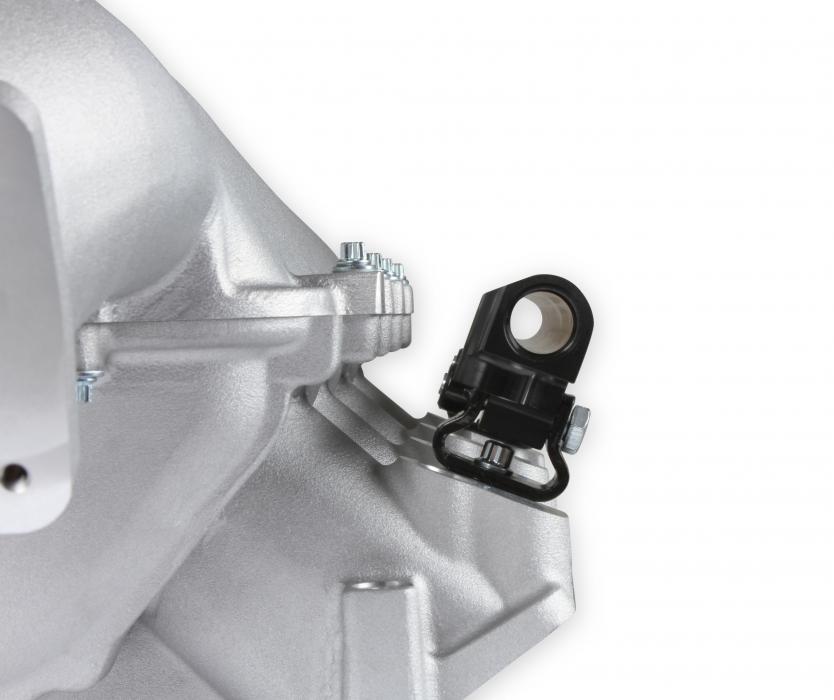

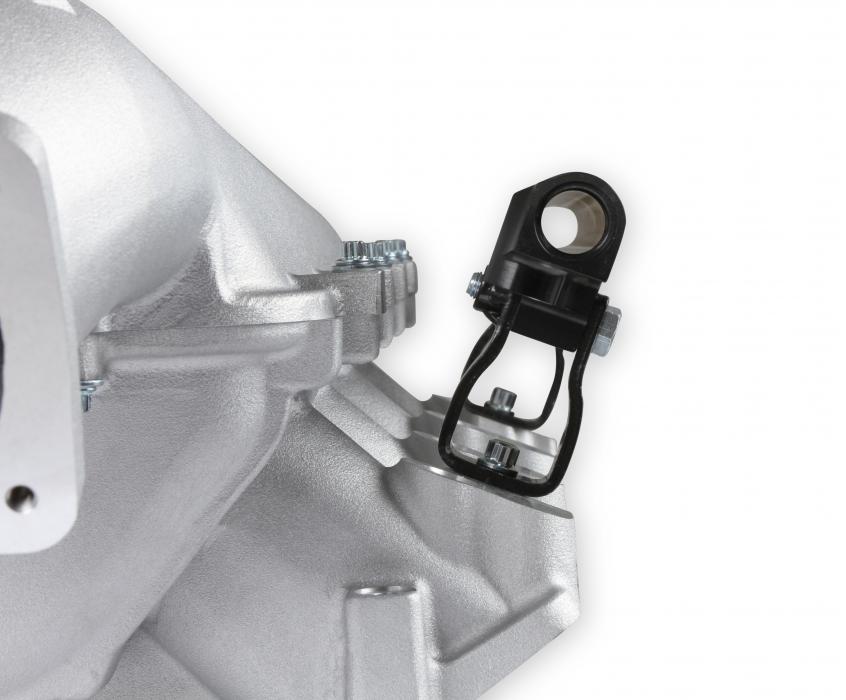

intercooler in a top-feed configuration. Additional manifold designs include both single and dual
injector options. Available with both as-cast satin and black power-coat finishes. High volume fuel

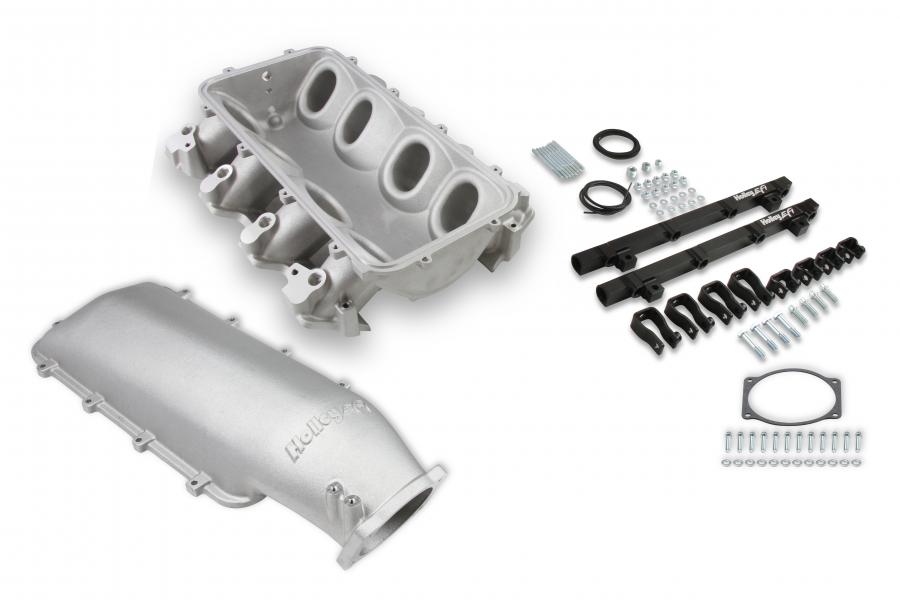

rails for eight and sixteen injector configurations. Mounting hardware included with 3/4-16 O-ring
ports (8 AN)
Features:
- Designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads
- Designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm
- Modular design allowing the use of the included plenum entry
- Low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration or to fit under a stock or mildly modified hood in the front-feed configuration

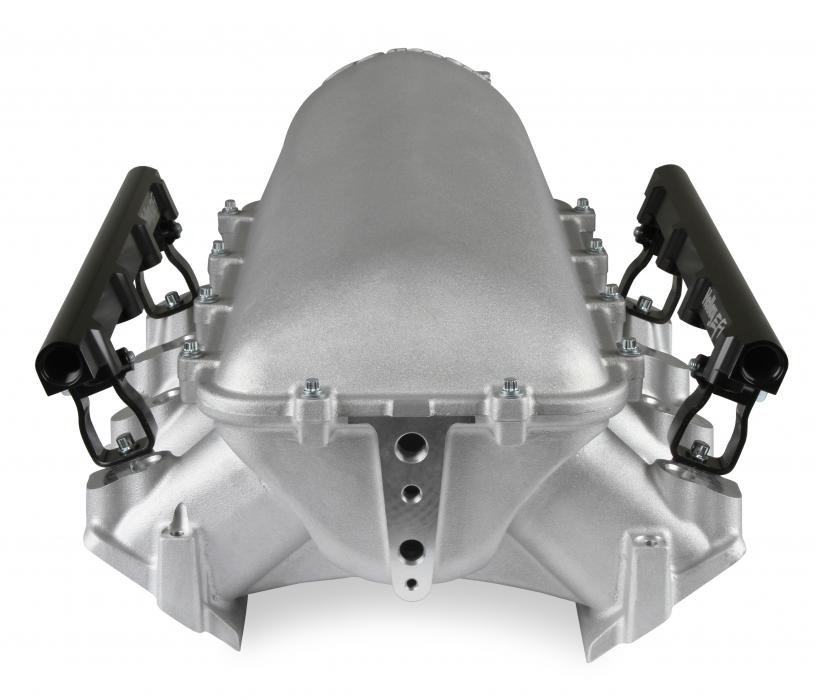

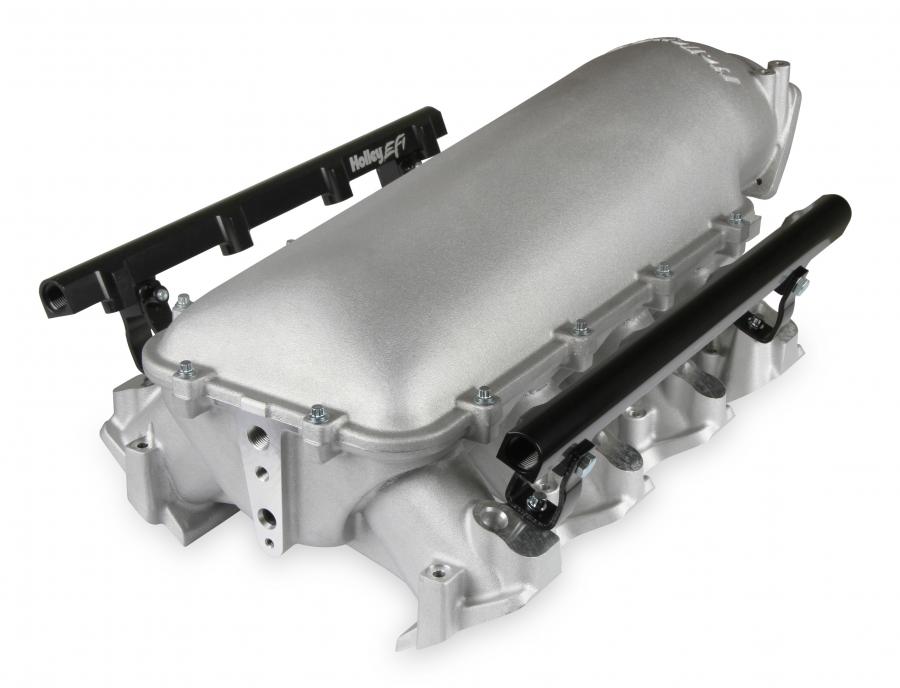

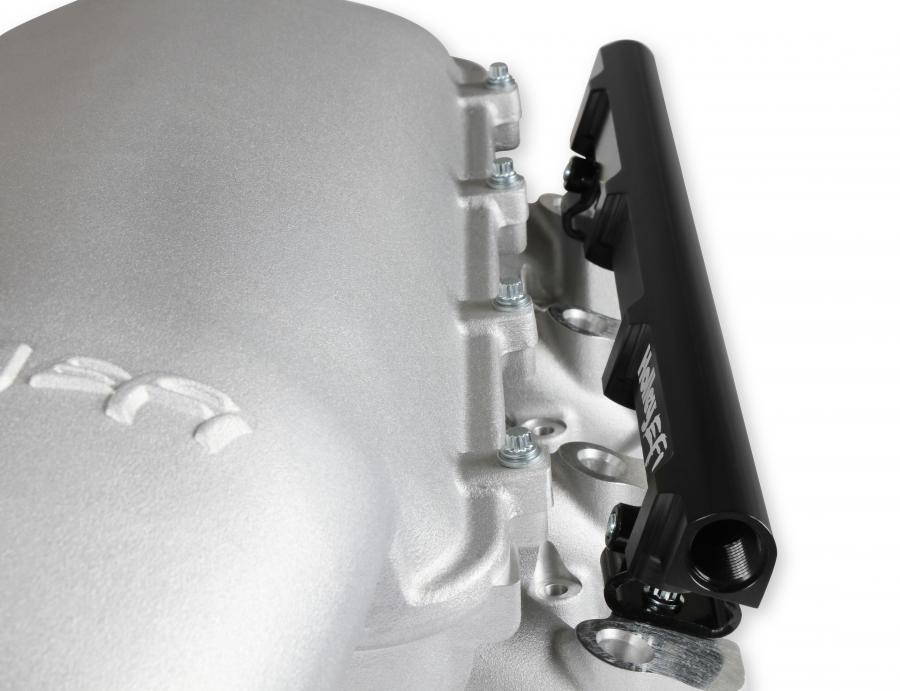

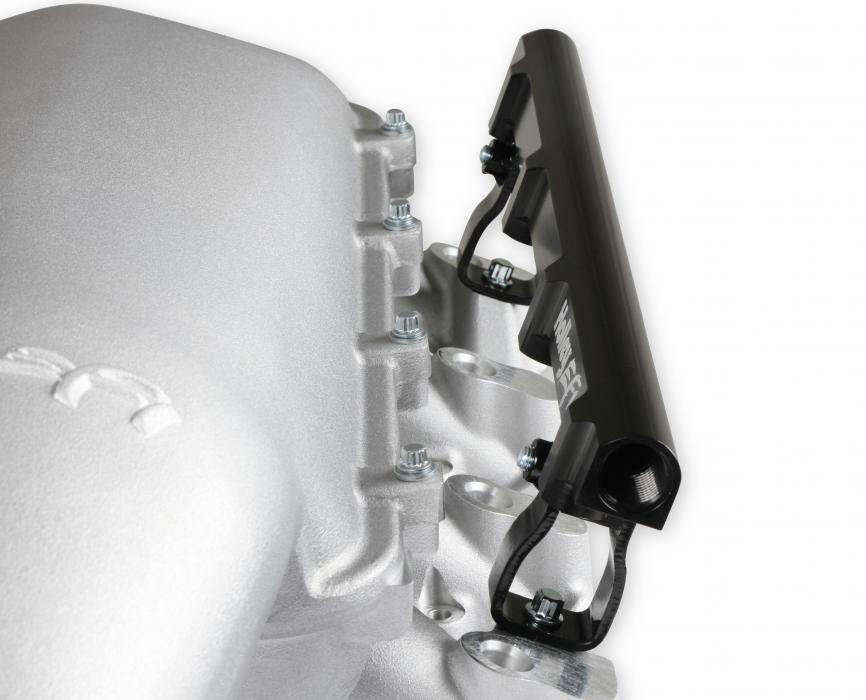

- High volume fuel rails for eight and sixteen injector configurations.
- Mounting hardware included with 3/4-16 O-ring ports (8 AN)and mounting hardware included with 3/4-16 O-ring ports (8 AN)

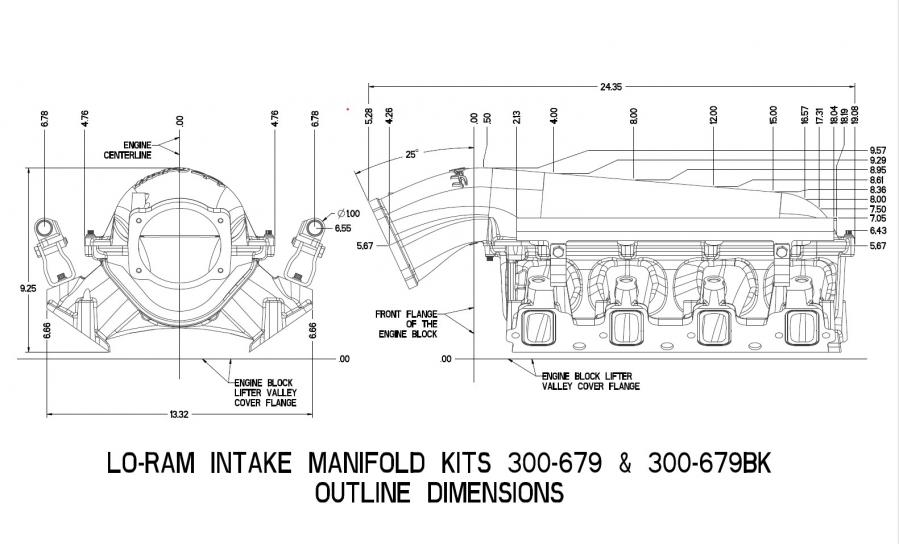

Lo-Ram Base Intake Manifold Plenum Top Mounting Flange Height - 5.67"
Total Height:
Top-Feed Plenum Configuration w/105mm Long. Mount EFI Plenum Top - 9.25" (without an intercooler installed)
Top-Feed Plenum Configuration w/105mm Long. Mount EFI Plenum Top, w/an intercooler installed - 9.25"+ the intercooler thickness
Installation Notes:
Lo-Ram Base Intake Manifold Plenum Top Mounting Flange Height - 5.67"
Total Height:
Top-Feed Plenum Configuration w/105mm Long. Mount EFI Plenum Top - 9.25" (without an intercooler installed)
Top-Feed Plenum Configuration w/105mm Long. Mount EFI Plenum Top, w/an intercooler installed - 9.25"+ the intercooler thickness
