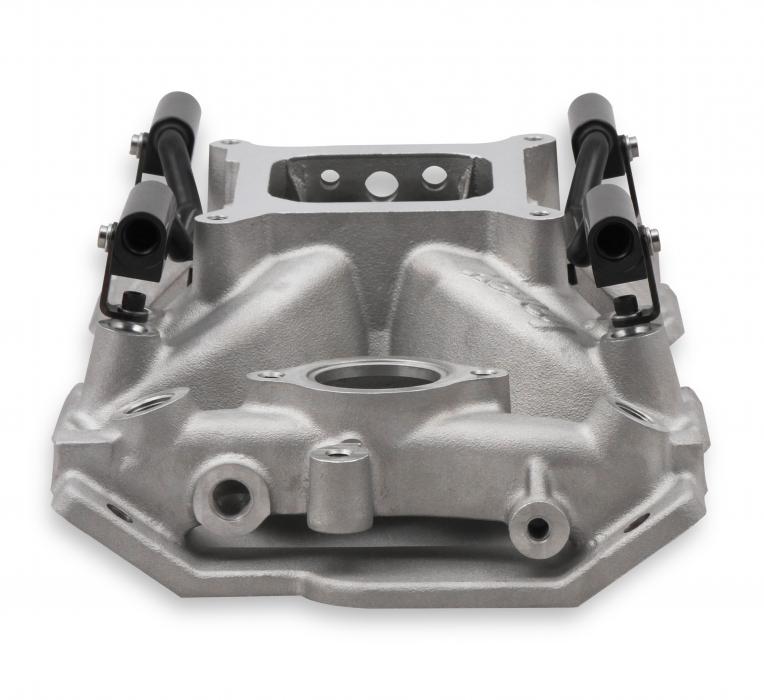

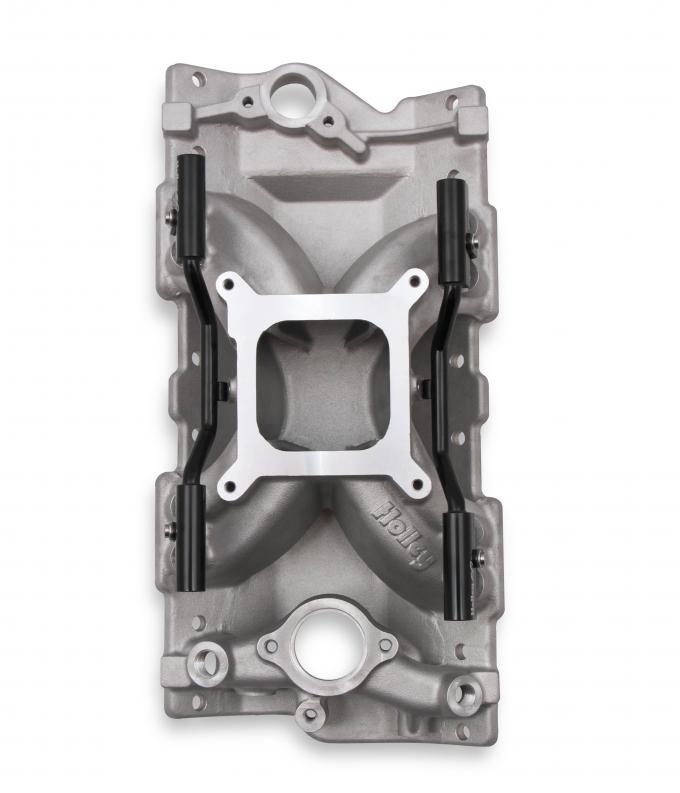

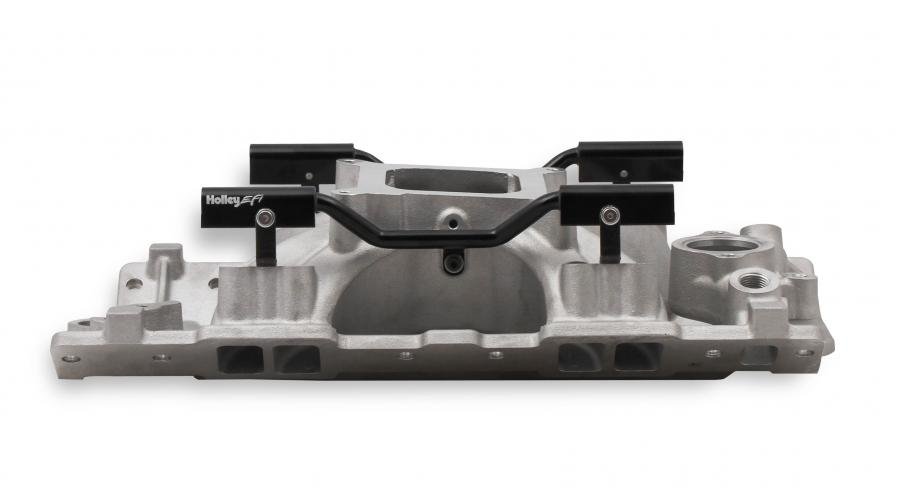

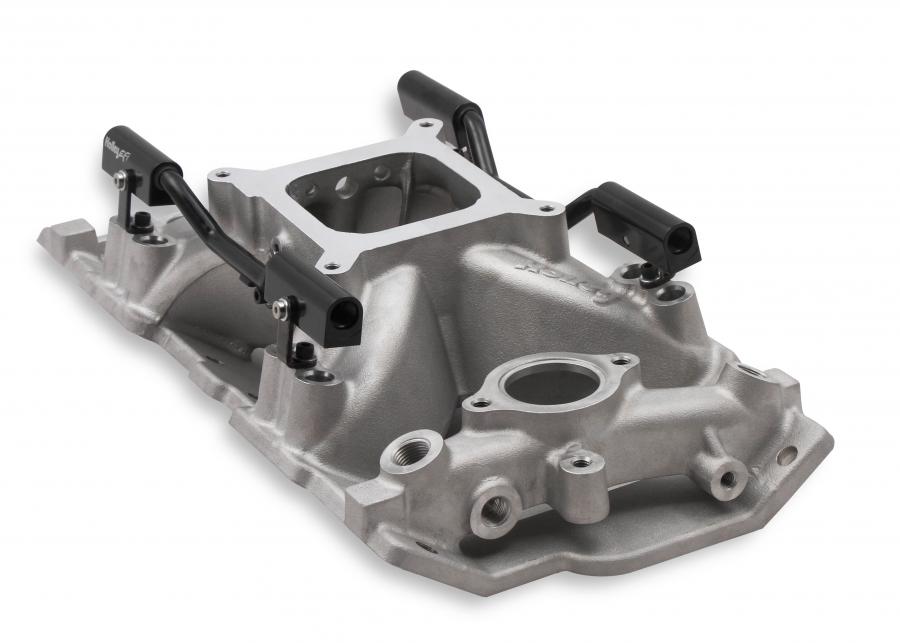

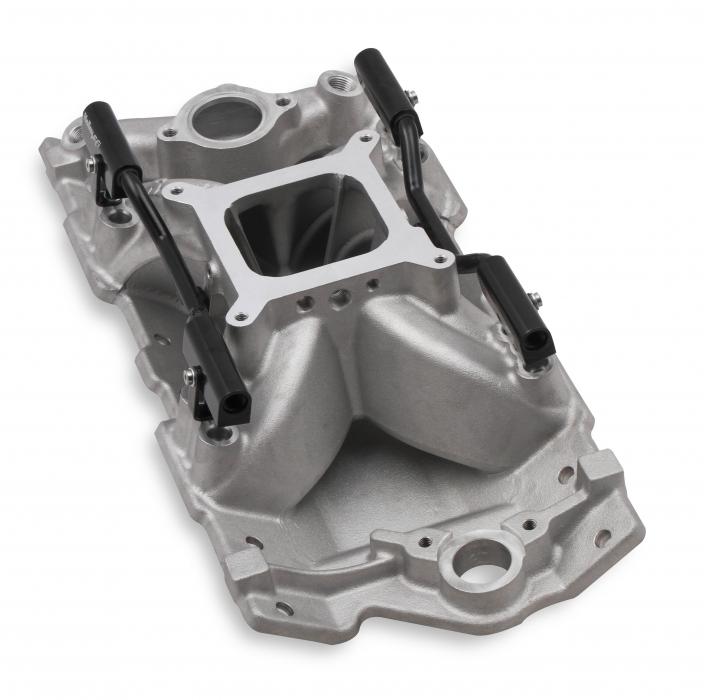

Holley EFI SBC 4150 Single Plane Fuel Injection Intake Manifold, Chevy Small Block V8 300-260

Holley EFI SBC 4150 Single Plane Fuel Injection Intake Manifold, Chevy Small Block V8 300-260
Holley EFI SBC 4150 Single Plane Fuel Injection Intake Manifold, Chevy Small Block V8 300-260Holley EFI SBC 4150 Single Plane Fuel Injection Intake Manifold, Chevy Small Block V8 300-260Holley EFI SBC 4150 Single Plane Fuel Injection Intake Manifold, Chevy Small Block V8 300-260Holley EFI SBC 4150 Single Plane Fuel Injection Intake Manifold, Chevy Small Block V8 300-260Holley EFI SBC 4150 Single Plane Fuel Injection Intake Manifold, Chevy Small Block V8 300-260Holley EFI SBC 4150 Single Plane Fuel Injection Intake Manifold, Chevy Small Block V8 300-260Holley EFI SBC 4150 Single Plane Fuel Injection Intake Manifold, Chevy Small Block V8 300-260Holley EFI SBC 4150 Single Plane Fuel Injection Intake Manifold, Chevy Small Block V8 300-260Holley EFI SBC 4150 Single Plane Fuel Injection Intake Manifold, Chevy Small Block V8 300-260Holley EFI SBC 4150 Single Plane Fuel Injection Intake Manifold, Chevy Small Block V8 300-260
$825.99 ea
NEWARRIVING SOONEstimated Ship Date 10/30/2024 (If Ordered Today)27 Available from HOLLEY PERFORMANCE PRODUCTS as of 10/12/2024
Model: 3992584
STANDARD
DELIVERY

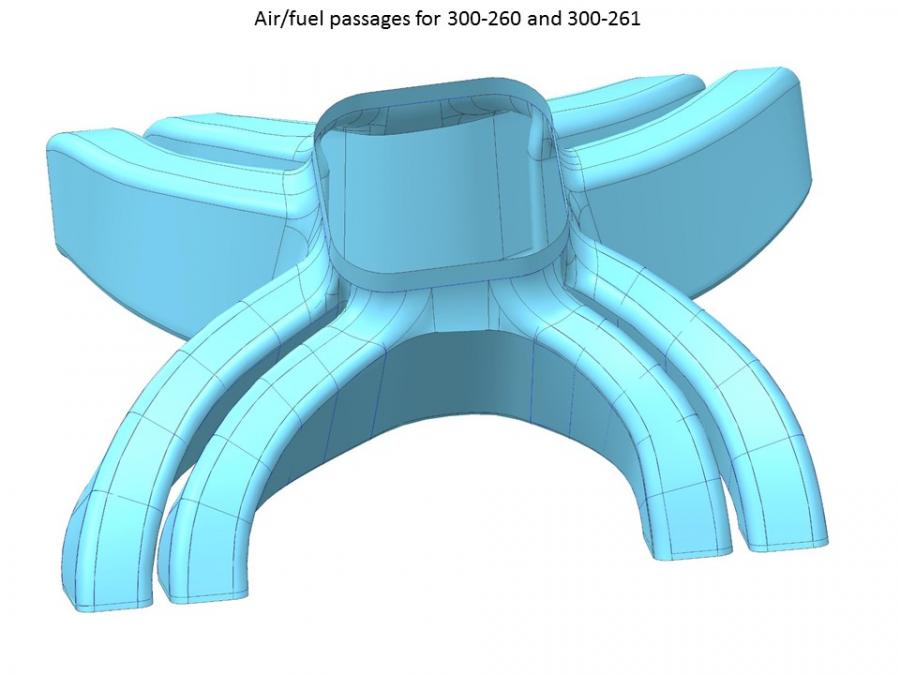

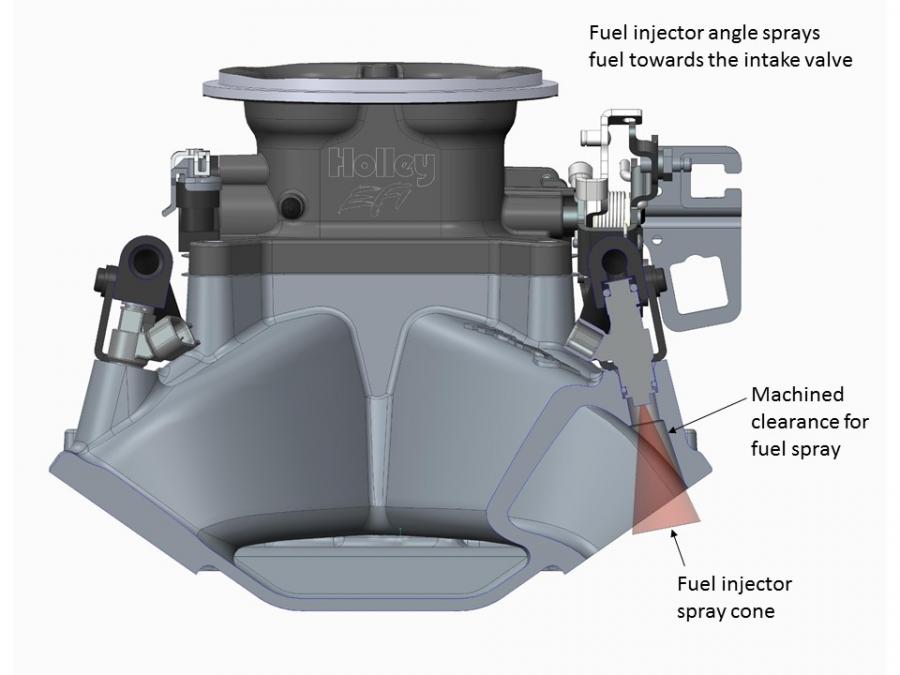

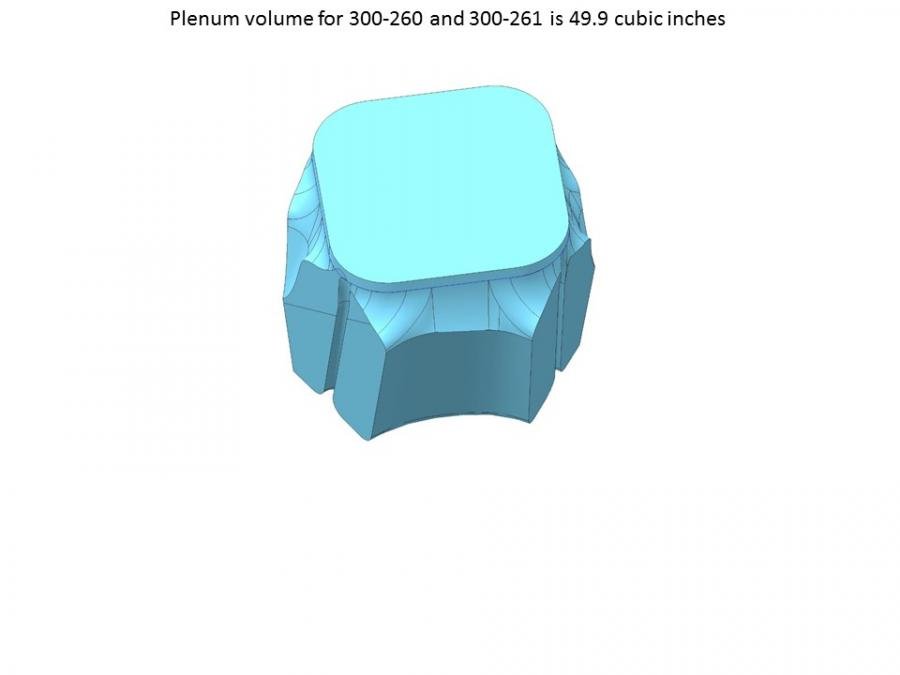

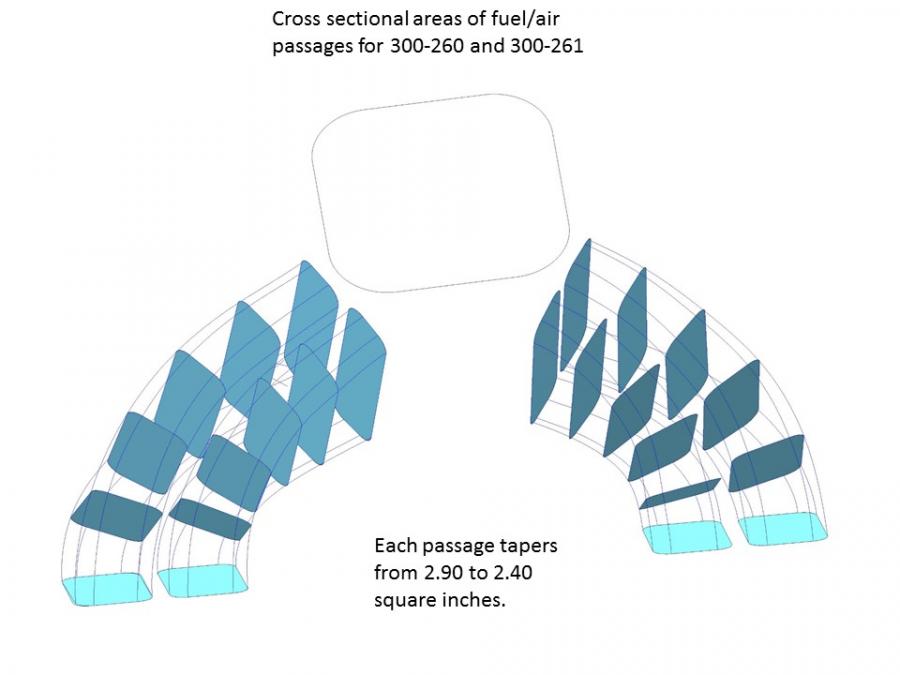

The new single plane EFI intake manifold is designed to provide a broad RPM powerband for high-performance street/strip engine applications to a maximum engine speed of 7500 RPM. The manifold is designed to work with 4150 Style Throttle body EFI systems like the Holley 4150 style flange Universal Throttle Bodies. These intake manifolds are designed to accept most stock hardware and accessory brackets, but offer performance features; like an updated plenum divider area, a 1" shorter overall height than most single plane manifolds, and a choice of two distributor clamp locations. The isolated design of the air/fuel passages helps to increase charge air density and performance. The fuel injector bores have back-cut exits in the runners for better fuel atomization. This design points the injectors at an angle to match the intake runner airflow angle. The black coated fuel rails and rail bracket assortment are included with the manifold for any easy installation with the injectors that you choose to use for your combination. Fuel rail designed for maximum throttle lever clearance. (Injectors are not included) The 300-260 intake manifolds are designed 4150 style Throttle Body EFI applications on 1957-86 262-400cid Small Block Chevrolet engines and SBC engines equipped with 1987-91 L98 aluminum Corvette cylinder heads (non-EGR applications). Also, these manifolds will work with any SBC engine equipped with aftermarket cylinder heads, as long as they have a standard port flange opening and mounting bolt locations. Also Available: 20-86 Throttle Cable Bracket, 20-87 Kickdown Cable Bracket
Features:
  • Single Plane Design with isolated Plenum
  • 4150 Square Bore Mounting Flange
  • Power band: 2500-7500 RPM

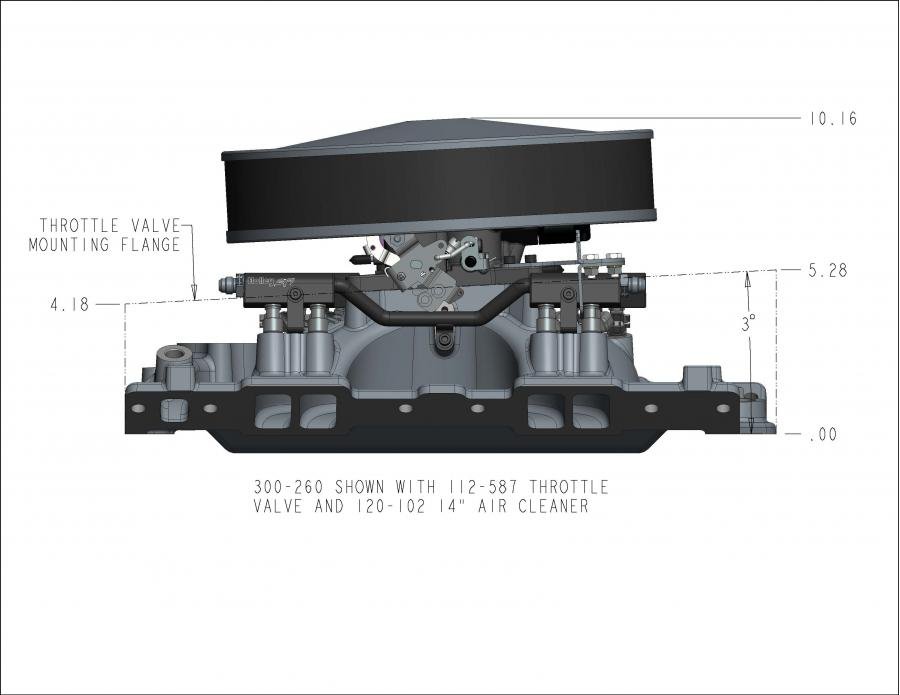

  • Height: Front 4.18", Rear 5.28"
  • Port Size: 1.92” height 1.20" width
  • Lower Throttle Body Mounting height to help with hood clearance.

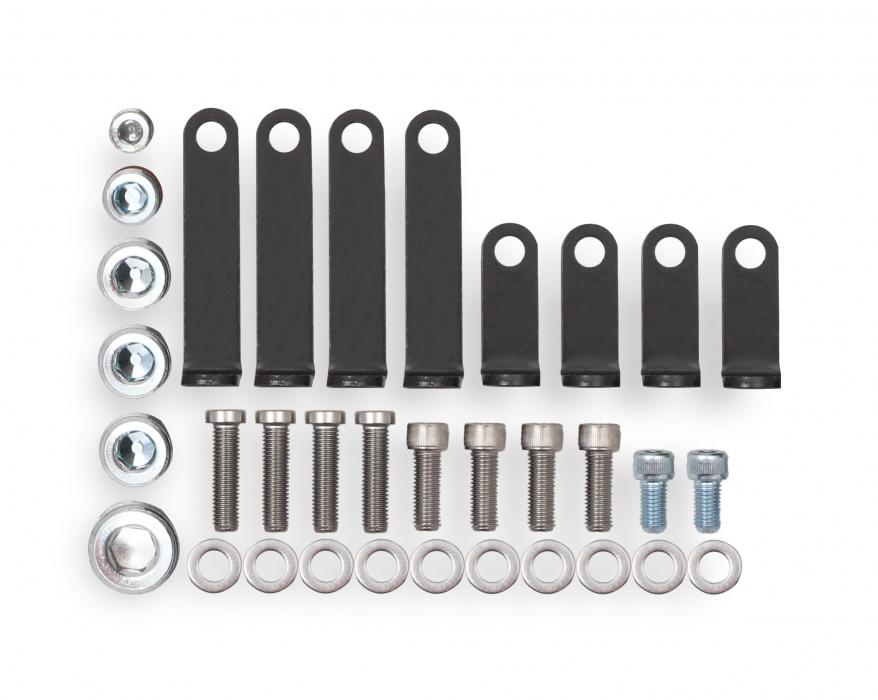

  • Holley laser etched logos on the black coated fuel rails and bracket assortment are included so that you can install the injectors of your choice.
  • Fuel injectors are not included
  • Fuel rail designed for maximum throttle lever clearance.
Modification to the valve covers may be required when this manifold is used with some types of cylinder heads. The fuel rail inlet threads are 9/16-18 for a -6 port.
Installation Notes:
Modification to the valve covers may be required when this manifold is used with some types of cylinder heads. The fuel rail inlet threads are 9/16-18 for a -6 port.
About Holley Performance Products

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

Downloads:

Download Name File Size
199r11570.pdf465.82KB

Specifications:

Construction Cast
Emission Code 3
Engine Chevrolet Small Block Gen I
Finish Satin
Front Height 4.18"
Fuel Inlet 9/16-18"
Fuel System Type EFI
Manifold Type High Rise
Part Type Engine Intake Manifold
Product Type EFI Intake Manifold
Rear Height 5.28"
RPM Power Band 2500-7500
Warranty Limited 90 Day
