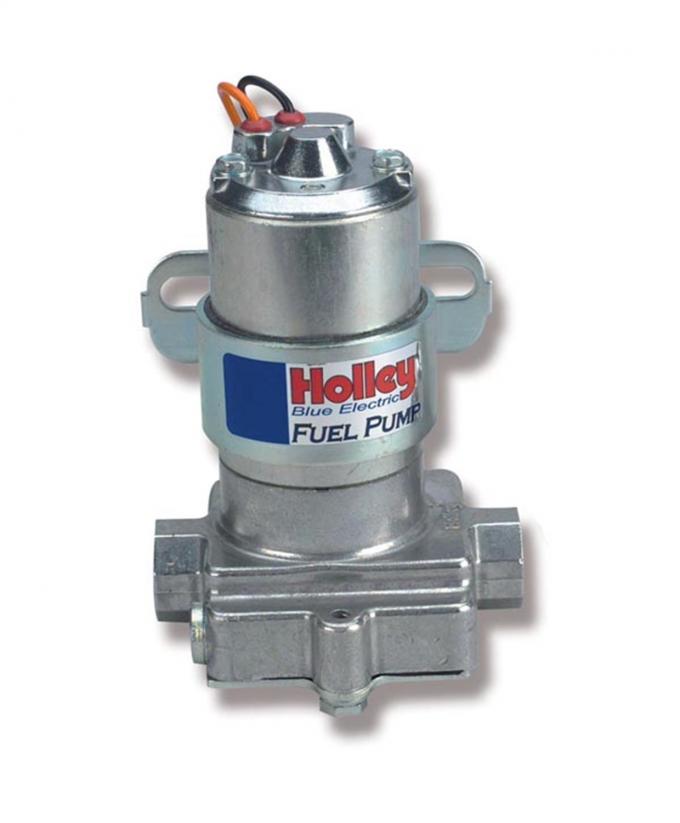

Holley 110 GPH "Blue" Electric Pump without Regulator 12-812-1

Holley 110 GPH "Blue" Electric Pump without Regulator 12-812-1
Holley 110 GPH "Blue" Electric Pump without Regulator 12-812-1
$344.99 ea
NEWARRIVING SOONEstimated Ship Date 06/14/2024 (If Ordered Today)100 Available from HOLLEY PERFORMANCE PRODUCTS as of 05/24/2024
Model: 3991288
STANDARD
DELIVERY
The world famous Red, Blue and Black fuel pumps are the most recognized performance pumps of all times. They have been powering racing legends and street enthusiasts alike since the early 70's. Their time proven rotor/vane design is known to get the job done in an affordable package.
Features:
  • Tumble polished billet look
  • Lower housing casting designed for enhanced fuel flow and quiet operation
  • Motor draws only 3 amps current
  • 7 1/2 amp fuse recommended
  • Improved design for street/strip applications
  • Not designed for use on aircraft of any type.
  • Distinctive “Blue” logo
  • Flows 110 GPH (free flow)
  • Flows 88 GPH at 9 psi
  • maximum pressure is 14 psi
  • Provides constant fuel flow with no pulsation
  • Has externally accessible pressure relief valve (max 14 psi)
  • Rotor/vane pump design is more tolerant of contaminated fuels
  • Weighs only 3 lbs
  • Includes mounting bracket
  • Repair kits are readily available
  • Can be serviced from the pump end
  • Not compatible with alcohol or methanol fuels
  • Use of safety shut-off switch, P/N 12-810, strongly recommended
  • Not designed or recommended for use with fuel injection systems
  • Fuel pressure regulator not included
Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. These should be used with 12 volt systems only.
Installation Notes:
Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. These should be used with 12 volt systems only.

About Holley Performance Products

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

Downloads:

Download Name File Size
holleyfuelsystems_chart1.pdf360.32KB
199r7914-3rev6.pdf591.79KB

Videos:

Specifications:

Application Universal
Bracket Color Silver
Emission Code 5
Free Flow GPH 110
Free Flow LPH 416
Fuel System Carbureted
Fuel Type Gasoline
Inlet Size 3/8 inch NPT
Material Aluminum
Motor Finish Silver
Outlet Size 3/8 inch NPT
Part Type Electric Fuel Pump
Product Type Fuel Pump
Proposition 65 www.P65Warnings.ca.gov
Pump Body Color Silver
Warranty Limited 90 Day
