Holley Fuel Cell EFI Pump Module Assembly 6 Bolt Flange with VR Series Brushless Fuel Pumps 12-143

Holley Fuel Cell EFI Pump Module Assembly 6 Bolt Flange with VR Series Brushless Fuel Pumps 12-143
Holley Fuel Cell EFI Pump Module Assembly 6 Bolt Flange with VR Series Brushless Fuel Pumps 12-143Holley Fuel Cell EFI Pump Module Assembly 6 Bolt Flange with VR Series Brushless Fuel Pumps 12-143Holley Fuel Cell EFI Pump Module Assembly 6 Bolt Flange with VR Series Brushless Fuel Pumps 12-143Holley Fuel Cell EFI Pump Module Assembly 6 Bolt Flange with VR Series Brushless Fuel Pumps 12-143Holley Fuel Cell EFI Pump Module Assembly 6 Bolt Flange with VR Series Brushless Fuel Pumps 12-143Holley Fuel Cell EFI Pump Module Assembly 6 Bolt Flange with VR Series Brushless Fuel Pumps 12-143Holley Fuel Cell EFI Pump Module Assembly 6 Bolt Flange with VR Series Brushless Fuel Pumps 12-143Holley Fuel Cell EFI Pump Module Assembly 6 Bolt Flange with VR Series Brushless Fuel Pumps 12-143Holley Fuel Cell EFI Pump Module Assembly 6 Bolt Flange with VR Series Brushless Fuel Pumps 12-143Holley Fuel Cell EFI Pump Module Assembly 6 Bolt Flange with VR Series Brushless Fuel Pumps 12-143Holley Fuel Cell EFI Pump Module Assembly 6 Bolt Flange with VR Series Brushless Fuel Pumps 12-143Holley Fuel Cell EFI Pump Module Assembly 6 Bolt Flange with VR Series Brushless Fuel Pumps 12-143Holley Fuel Cell EFI Pump Module Assembly 6 Bolt Flange with VR Series Brushless Fuel Pumps 12-143Holley Fuel Cell EFI Pump Module Assembly 6 Bolt Flange with VR Series Brushless Fuel Pumps 12-143Holley Fuel Cell EFI Pump Module Assembly 6 Bolt Flange with VR Series Brushless Fuel Pumps 12-143
$4,297.99 ea
NEWARRIVING SOONEstimated Ship Date 08/05/2024 (If Ordered Today)1 Available from HOLLEY PERFORMANCE PRODUCTS as of 07/15/2024
Model: 3991170
STANDARD
DELIVERY

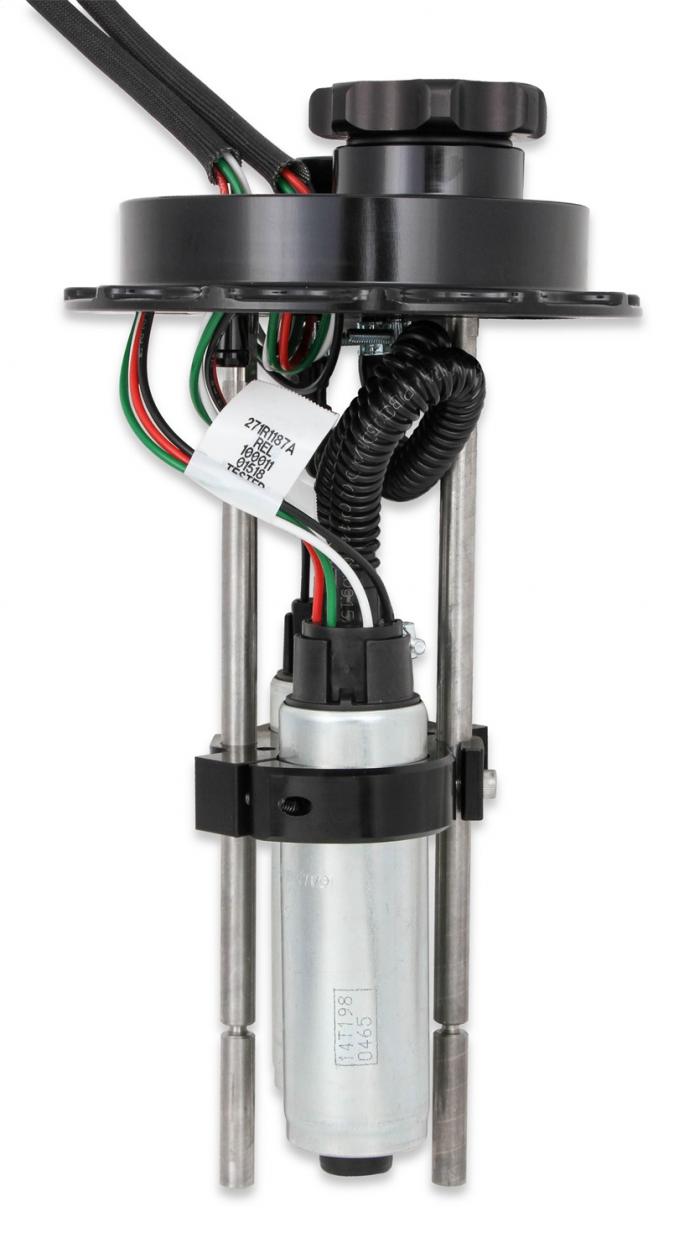

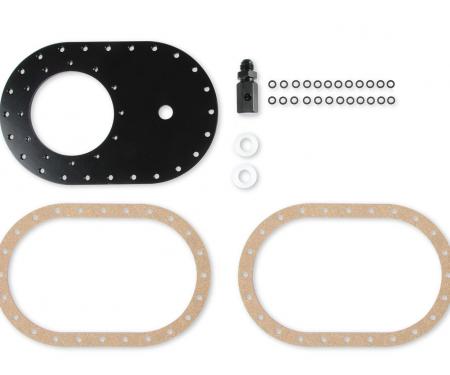

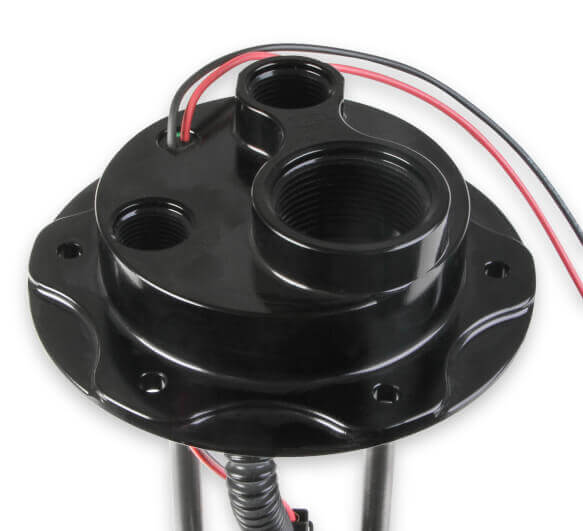

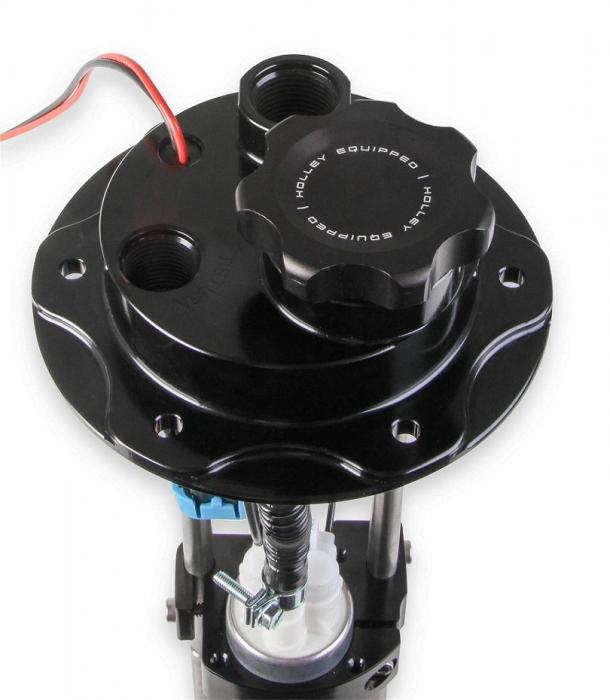

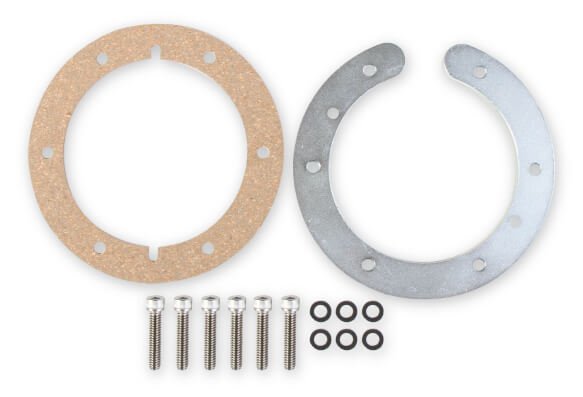

Holley Fuel Cell EFI Pump Modules with dual VR Series Brushless Fuel Pumps. These drop in modules come with two controllers and harnesses to give you VR fuel pump power inside your fuel cell. While the name includes EFI, these modules can be used as an upgrade for carbureted systems as well with the proper regulator. The modules were designed to drop in as a direct replacement for your existing 6 bolt flange fuel cell cap assembly. The billet top flange includes an 8AN inlet port, a 10AN outlet port, and a fuel filler cap. The fuel pump depth is fully adjustable from 7.5" to 12" deep. The module kits include all the hardware to install into your existing fuel cell. All that you need to add is your fuel line. ***Assembly fits common RJS, Jaz, Summit, Jegs, RCI, Speedmaster and Speedway fuel cells. Designed to work on high boosted race cars as well as your daily driven weekend endurance car, these pumps work with gasoline, methanol, and E-85* (Compatible for methanol and E85 for competitive drag race use only- when draining and flushing after each race event) and can maintain pressures of 130 PSI and up to 335 GPH flow**. Fueled by TI Automotive. The pumps include a 2 step controller for pump speed control. The pumps can be ran in one of two different speeds. A low speed control for low fuel consumption requirements or at full speed for high fuel consumption requirements. The VR2 includes (2) controllers for precise control of both pumps independently of each other. Both the VR1 and VR2 pumps are proven for 18.5V compatibility. **At 13.8V * Overall pump dimensions: 9.5" Long; 4.75" Wide; 2.75" Tall
Features:
  • Capable of 130 PSI while providing significant flow for forced induction applications where belt driven pumps are normally used.
  • Unlike other pumps, the VR Series are built for continuous duty if needed.
  • Billet aluminum construction for durability and good looks
  • Designed to drop right into your existing 6 bolt flange fuel cell
  • High flow and high pressure with low amperage draw
  • Can be fully submerged in the fuel cell or chassis mounted
  • Maximum amp draw of 38 AMPS for the VR2

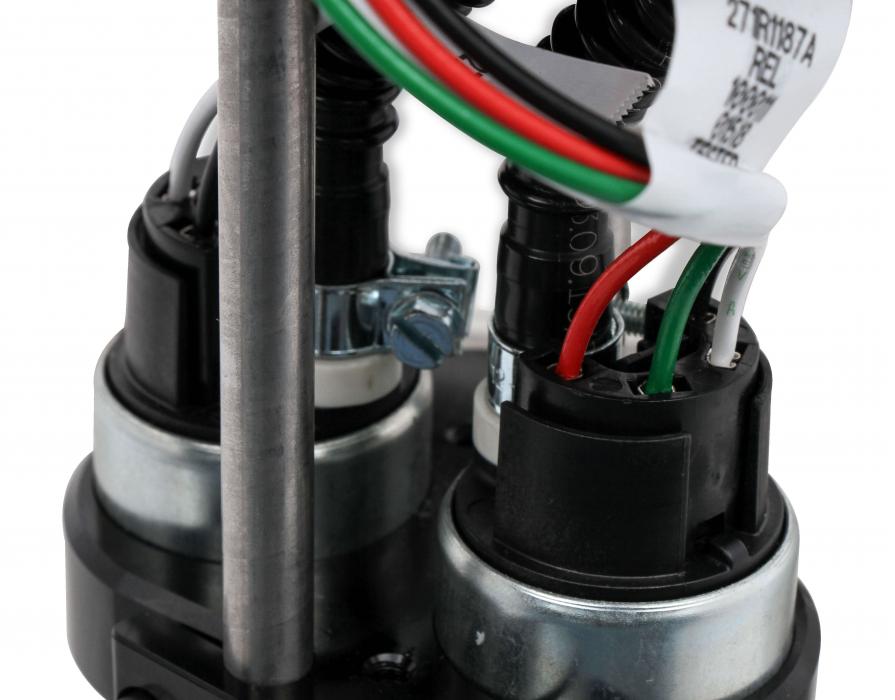

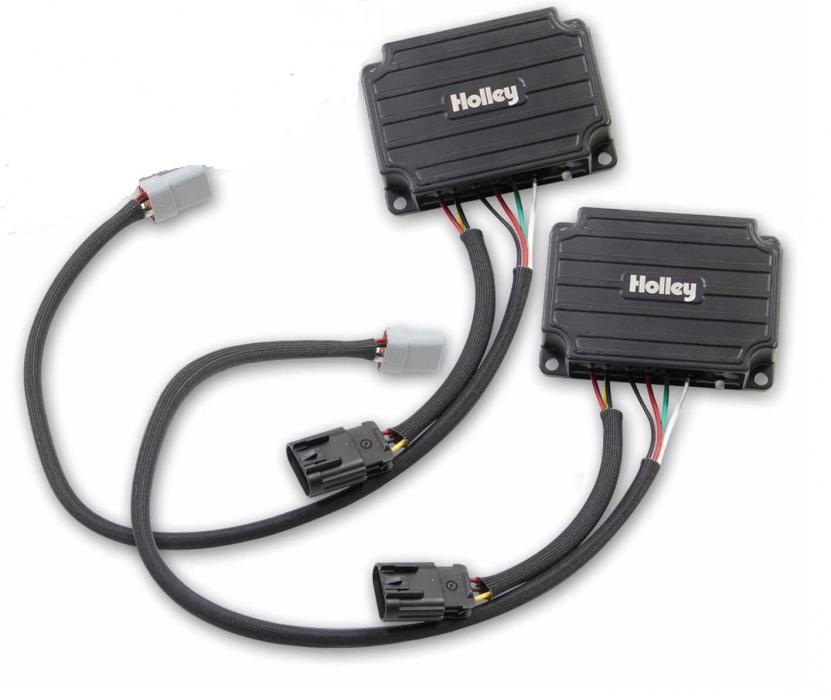

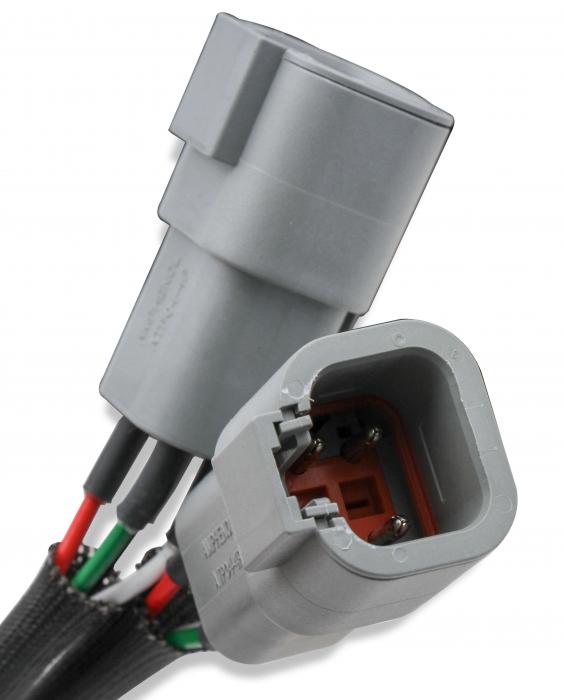

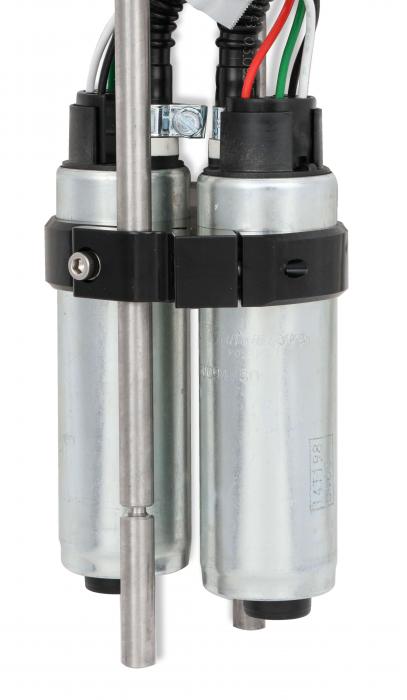

  • Modules include dual VR Series Brushless fuel pumps with two step controller and harnesses.
Fill cap thread is 1 1/2"-12
Installation Notes:
Fill cap thread is 1 1/2"-12

About Holley Performance Products

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

Downloads:

Download Name File Size
199r11434.pdf1.65MB

Specifications:

Application Universal
Emission Code 5
Flange Style 6 Bolt
Free Flow GPH 335 @ 13.8 Volts
Free Flow LPH Dual 644
Fuel System Carbureted, EFI
Fuel Type Gas
Fuel Type Gasoline, Methanol, E85
Inlet Size 8 AN O-Ring
Material Aluminum
Outlet Size 10 AN O-ring
Part Type Fuel Pump Module Assembly
Product Type Brushless Fuel Pump
Proposition 65 www.P65Warnings.ca.gov
Pump Body Color Black
Single or Dual Pump Dual, Dual
Warranty Limited 90 Day
