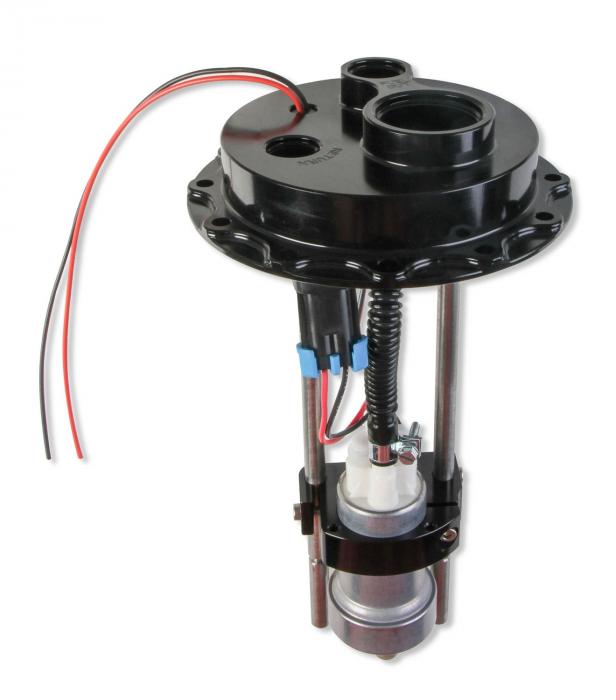

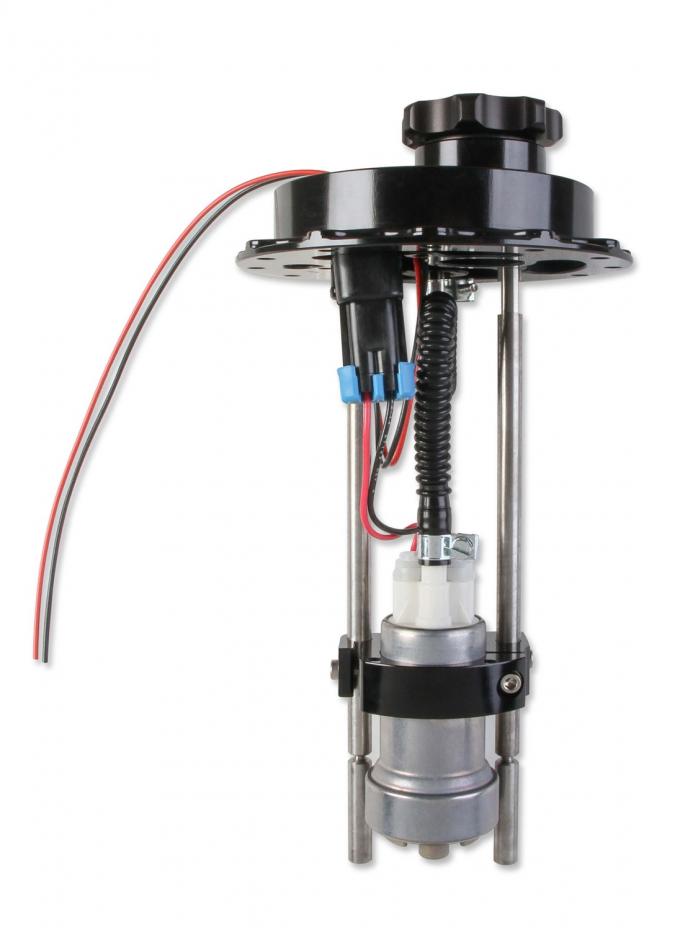

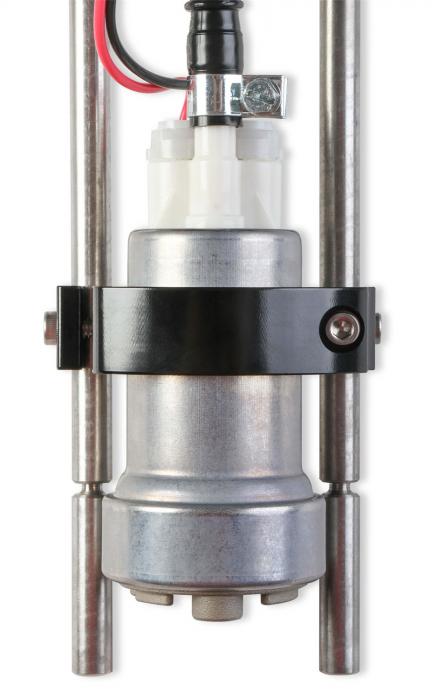

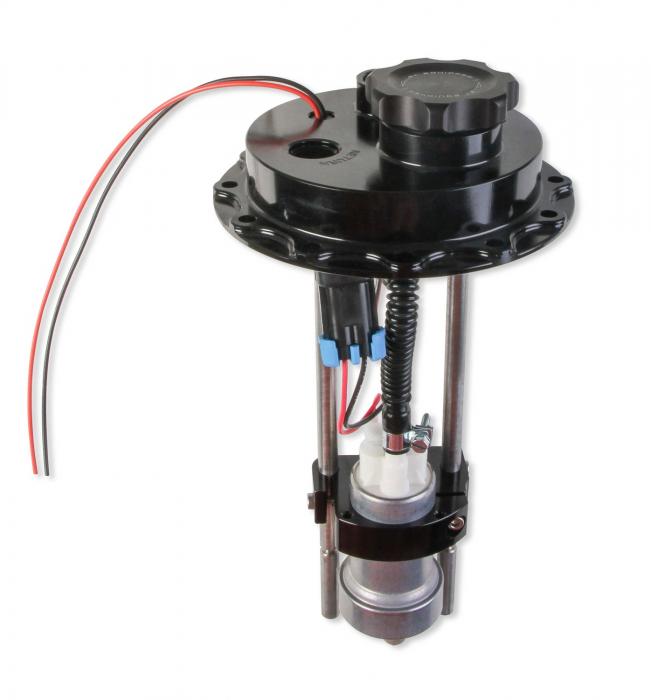

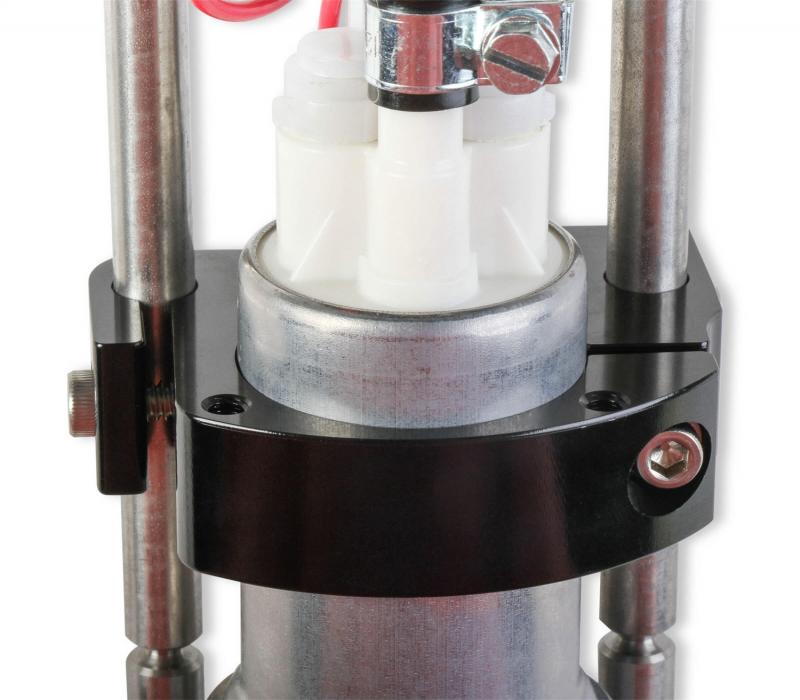

Holley Fuel Cell EFI Pump Module Assembly 12-146

Holley Fuel Cell EFI Pump Module Assembly 12-146
Holley Fuel Cell EFI Pump Module Assembly 12-146Holley Fuel Cell EFI Pump Module Assembly 12-146Holley Fuel Cell EFI Pump Module Assembly 12-146Holley Fuel Cell EFI Pump Module Assembly 12-146Holley Fuel Cell EFI Pump Module Assembly 12-146Holley Fuel Cell EFI Pump Module Assembly 12-146Holley Fuel Cell EFI Pump Module Assembly 12-146
$895.99 ea
NEWOUT OF STOCK
Model: 3991173
STANDARD
DELIVERY

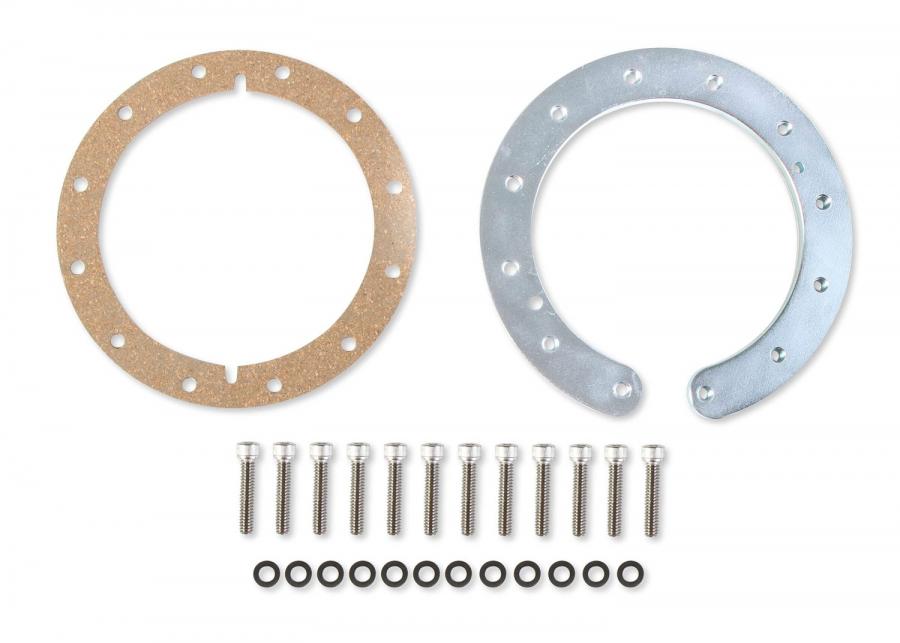

Updating your racing fuel system to EFI is so simple! Holley is excited to introduce our Holley Fuel Cell EFI Pump Modules. While the name includes EFI, these modules can be used as an upgrade for carbureted systems as well with the proper regulator. The modules were designed to drop in as a direct replacement for your existing 12 bolt flange fuel cell cap assembly. The billet top flange includes an 8AN inlet port, a 10AN outlet port, and a fuel filler cap. The fuel pump depth is fully adjustable from 7.5" to 12" deep. The EFI modules are available with single 255 LPH and 450 LPH fuel pumps. The module kits include all the hardware to install into your existing fuel cell. All that you need to add is your fuel line. ***Assembly fits common RJS, Jaz, Summit, Jegs, RCI, Speedmaster and Speedway fuel cells. ***Supports up to 875 EFI or 1100 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw)
Features:
  • Update your fuel cell to EFI the easy way!
  • Designed to drop right into your existing 12 bolt flange fuel cell
  • Billet top flange housing includes an 8AN inlet and 10AN outlet port and a fuel filler cap
  • Modules are available with 255 or 450 LPH fuel pumps in single pump configurations
  • The pump depth is fully adjustable for fitment in the most popular cell sizes 7.5”-12” deep.
  • Supports up to 875 EFI or 1100 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw)
Fill cap thread is 1 1/2"-12
Installation Notes:
Fill cap thread is 1 1/2"-12

About Holley Performance Products

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

Downloads:

Download Name File Size
199r11434.pdf1.65MB

Videos:

Specifications:

Application Universal
Emission Code 5
Flange Style 12 Bolt
Free Flow GPH 118
Free Flow LPH 450
Fuel Type Gasoline, E85
Inlet Size 8 AN
Max PSI 87
Outlet Size 10 AN
Part Type Fuel Pump Module Assembly
Product Type Fuel Pump
Proposition 65 www.P65Warnings.ca.gov
Single or Dual Pump Single, Single
Warranty Limited 90 Day
