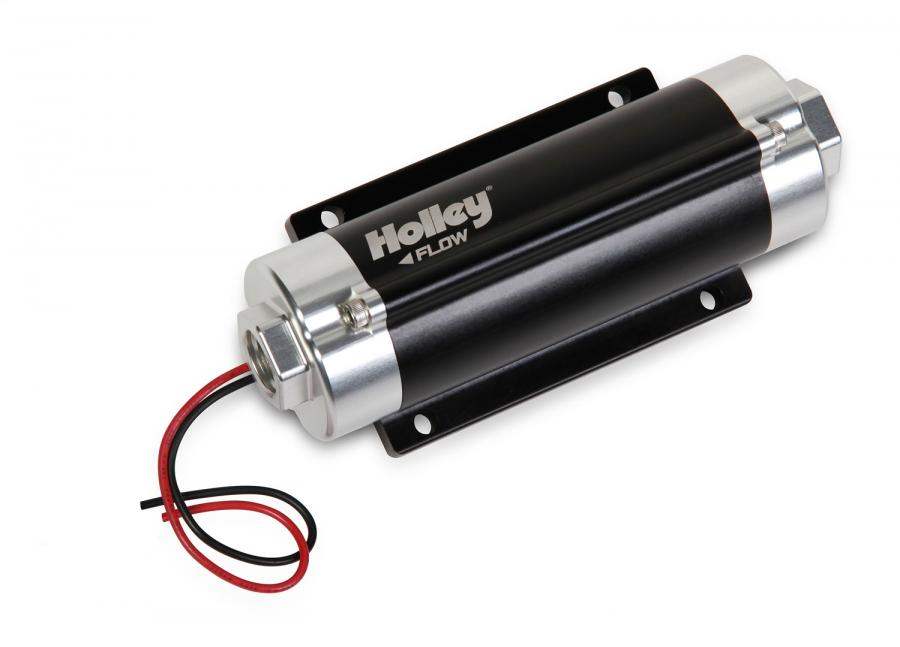

Holley 100 GPH HP in-Line Fuel Pump 12-890

Holley 100 GPH HP in-Line Fuel Pump 12-890
Holley 100 GPH HP in-Line Fuel Pump 12-890
$705.99 ea
NEWARRIVING SOONEstimated Ship Date 06/14/2024 (If Ordered Today)28 Available from HOLLEY PERFORMANCE PRODUCTS as of 05/26/2024
Model: 3991325
STANDARD
DELIVERY
Holley's HP™ In-Line Billet Fuel Pumps are designed to be the perfect companion to your carbureted or fuel injected race car, off-road truck, or any engine needing fuel! The HP™ fuel pumps feature OEM gerotor technology which yields lightweight, quiet operation and 100,000+ mile durability in a cost-effective, attractive package. HP™ fuel pumps are Race gas, E-85, and diesel compatible and can be used in racing applications with 18.5 volt charging systems up to 80 psi.
Features:
  • Billet aluminum construction for durability & good looks
  • -8 an o-ring inlet/outlet for high flow and superior sealing
  • Excellent for use with carbureted or EFI applications
  • Fully submersible in-tank for custom applications, space savings and less plumbing
  • Compatible with 12v to 18.5v systems for street or race use
  • Compact (7.5” long x 3” wide x 2.75” tall) for easy installation on frame rails or other tight areas
  • Proven durability beyond 3,000 hours in gasoline or diesel fuels
  • Weighs only 3.1 lbs.
  • Current draw at 43 psi and 13.5 vdc is 8.6 amps
  • Not designed for use on aircraft of any type.

*Pump gas compatible for intermittent or under 90 degree ambient temperature use

Pump gas use recommendations:

• This pump is compatible with pump gas, but is not recommended for street driven vehicles where the ambient temperature is regularly above 90 degrees

• For street driven vehicles in high temps with pump gas, Holley recommends part numbers 12-600 or 12-800 for optimum hot fuel handling

• Proper fuel system engineering is critical for maximum performance. Please see Holley Fuel System Chart for information about proper installation of your fuel system.

Will work with E-85 and Diesel!

These pumps do not have an internal bypass. A bypass style regulator and return line are required.

NOT FOR USE WITH METHANOL!

This pump is not designed to use a standard conical seat style union in the inlet or outlet of the pump. Example: Part # AT981508ERL. Use of this style fitting will block flow and WILL lead to poor performance and pump failure. The ONLY correct fitting to use is a contoured port fitting with an O-ring seal such as :Part # AT985008ERL.

Installation Notes:

*Pump gas compatible for intermittent or under 90 degree ambient temperature use

Pump gas use recommendations:

• This pump is compatible with pump gas, but is not recommended for street driven vehicles where the ambient temperature is regularly above 90 degrees

• For street driven vehicles in high temps with pump gas, Holley recommends part numbers 12-600 or 12-800 for optimum hot fuel handling

• Proper fuel system engineering is critical for maximum performance. Please see Holley Fuel System Chart for information about proper installation of your fuel system.

Will work with E-85 and Diesel!

These pumps do not have an internal bypass. A bypass style regulator and return line are required.

NOT FOR USE WITH METHANOL!

This pump is not designed to use a standard conical seat style union in the inlet or outlet of the pump. Example: Part # AT981508ERL. Use of this style fitting will block flow and WILL lead to poor performance and pump failure. The ONLY correct fitting to use is a contoured port fitting with an O-ring seal such as :Part # AT985008ERL.

About Holley Performance Products

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

Downloads:

Download Name File Size
holleyfuelsystems_chart1.pdf360.32KB
199r10569-1rev2.pdf927.47KB

Videos:

Specifications:

Application Universal
Emission Code 5
Forced Induction HP@43PSI 700
Forced Induction HP@60PSI 600
Forced Induction HP@8PSI 800
Free Flow GPH 105
Fuel System Carbureted, EFI
Fuel Type Diesel
Fuel Type Gasoline, E85

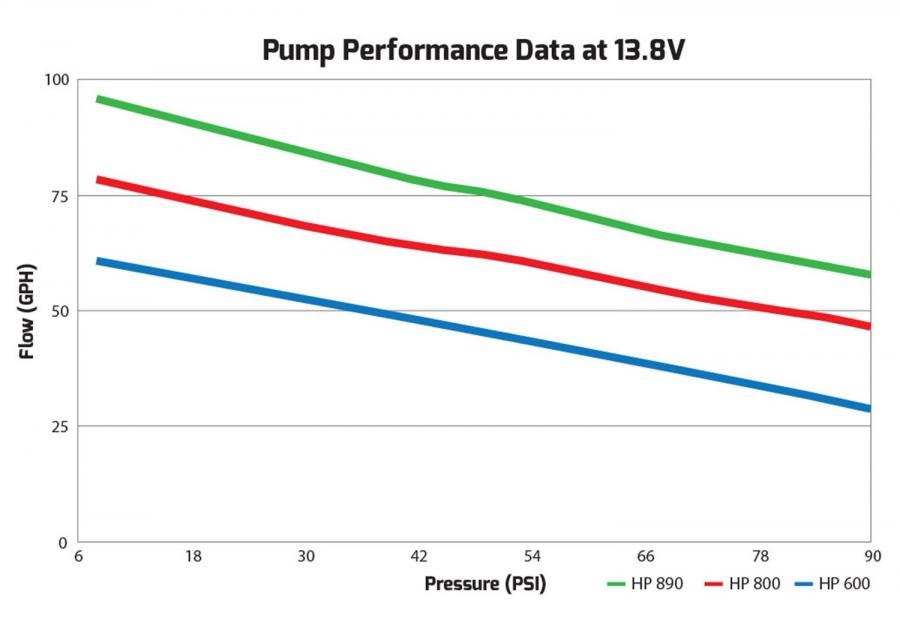

GPH@43PSI 76
GPH@60PSI 70
GPH@8PSI 100
Inlet Size 8 AN O-Ring - 3/4-16 SAE
LPH@43PSI 287
LPH@60PSI 265
LPH@8PSI 363
Material Aluminum
Naturally Aspirated HP@43PSI 900
Naturally Aspirated HP@60PSI 800
Naturally Aspirated HP@8PSI 1050
Outlet Size 8 AN O-Ring - 3/4-16 SAE
Part Type Electric Fuel Pump
Product Type Fuel Pump
Proposition 65 www.P65Warnings.ca.gov
Pump Body Color Black Anodized
Warranty Limited 90 Day
