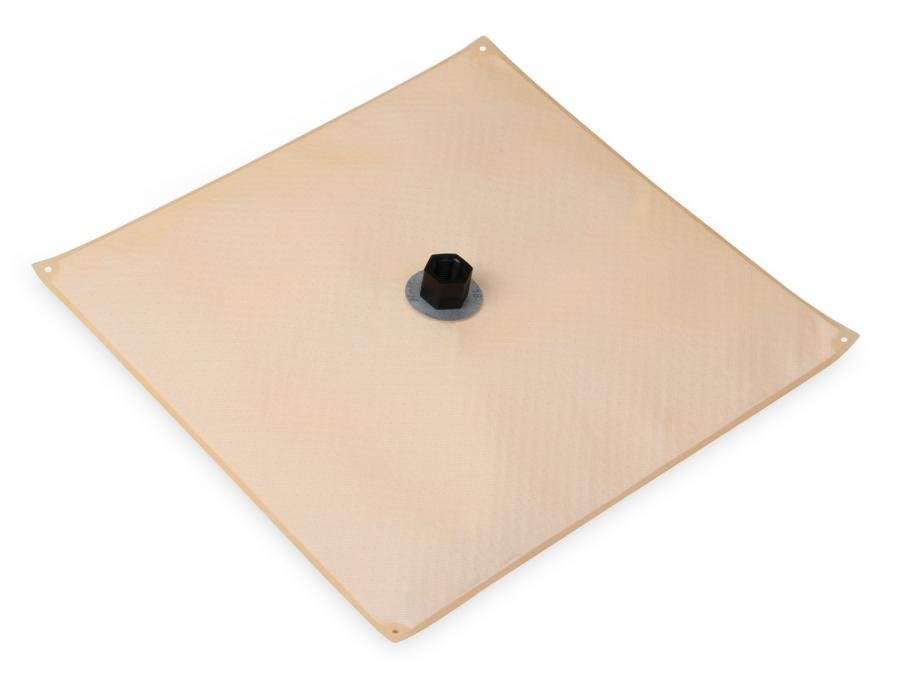

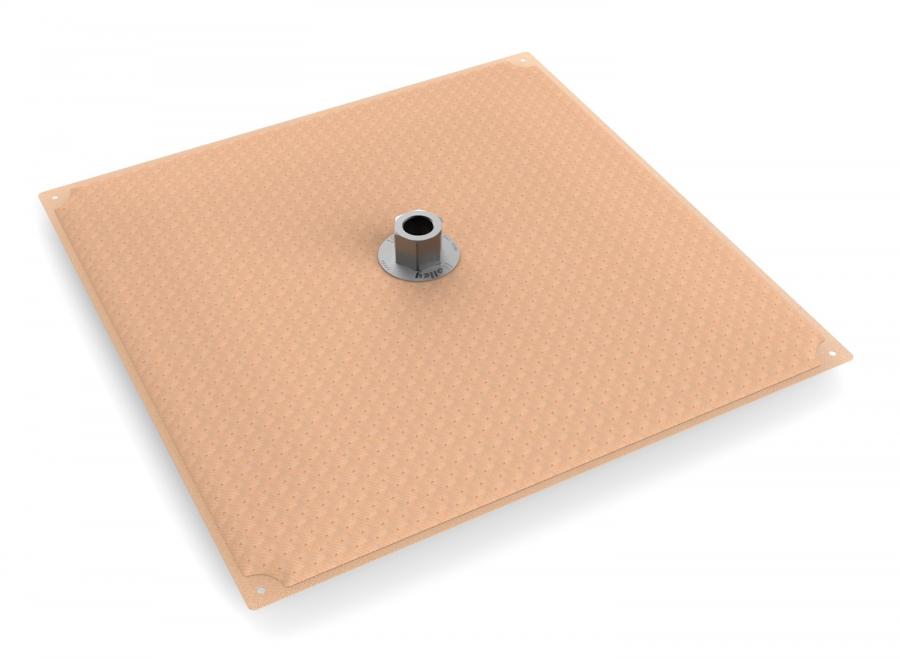

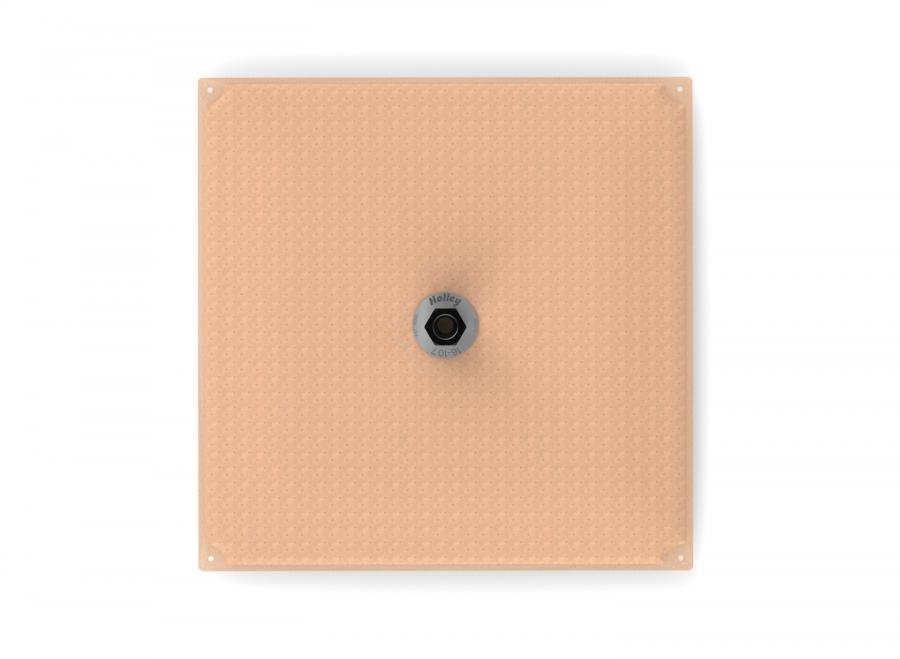

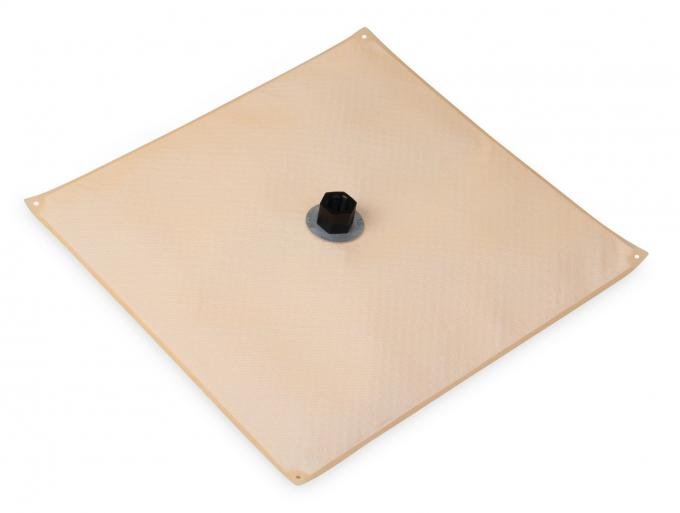

Holley 15" X 15" HydraMat®, Square 16-107

Holley 15" X 15" HydraMat®, Square 16-107
Holley 15" X 15" HydraMat®, Square 16-107Holley 15" X 15" HydraMat®, Square 16-107
$704.99 ea
NEWARRIVING SOONEstimated Ship Date 04/22/2024 (If Ordered Today)12 Available from HOLLEY PERFORMANCE PRODUCTS as of 03/28/2024
Model: 3991831
STANDARD
DELIVERY
The amazing HydraMat® is Holley's patent pending design that solves the problems associated with traditional fuel pick-ups in stock fuel tanks as well as racing fuel cells. During hard cornering, acceleration, stopping, inclines, and low fuel conditions fuel runs away from the fuel pick up which introduces air into the system resulting in poor engine performance and even stalling. HydraMat is the solution! Surface tension and fluid wicking are the secrets of the HydraMat, giving it the amazing ability to draw from nearly any area that has contact with fuel and then store it in its internal reservoir. As an area of the HydraMat is uncovered, the tiny pores of the media seal off through surface tension, forcing fuel to be contained in the reservoir and drawn from other areas of the mat where fuel continues to be available. The sheer size and coverage area of the HydraMat allows it to pull fuel from virtually any area in the tank or cell eliminating the need for specialty reservoirs and pick up pumps saving cost and greatly reducing complexity. HydraMats are available in various sizes and shapes to fit a variety of stock fuel tanks and/or race fuel cells.
Features:
  • Patent pending design that solves the problems associated with traditional fuel pick-ups in stock fuel tanks as well as racing fuel cells
  • Greatly reduces the potential for air to enter into the fuel system which can result in poor engine performance and/or engine stalling
  • Perfect for vehicles experiencing fuel starvation during hard cornering, acceleration, stopping, inclines, and low fuel conditions
  • Surface tension and fluid wicking allow the HydraMat to continue to draw fuel from the tank or cell even when part of the mat uncovered
  • As an area of the HydraMat is uncovered, tiny pores in the media seal off through surface tension, forcing fuel to be drawn from other areas of the mat where fuel continues to be available
  • Unique internal reservoir assists in keeping fuel available at the pickup even under extreme fuel slosh conditions
  • Eliminates the need for specialty reservoirs, sumps and pick up pumps saving cost and greatly reducing complexity
  • Also acts as a 15 micron pre-filter eliminating the need for a separate filter before the fuel pump
  • Can be folded and compressed for easy installation through a variety of fuel cell openings
  • HydraMats are also available in other sizes and shapes to fit a variety of stock fuel tanks and/or race fuel cells
  • Works with Alcohol, Ethanol, Methanol, and E-85 fuels
  • Works with 2-cycle oil blends as high as 20:1
  • Not for use with most oils (see previous point for exceptions)
  • Not for use with diesel fuels
This to fit flat bottom rectangular style fuel cells with minimum dimensions of 15" long and 15" wide cross For best performance, the return fuel should be discharged near the pick-up of the HydraMat at a minimum distance of 1 inch above the mat. HydraMats with a female NPT thread do not require the use of a sealing paste or tape. Use of a sealing paste or tape could result in fuel pump failure.
Installation Notes:
This to fit flat bottom rectangular style fuel cells with minimum dimensions of 15" long and 15" wide cross For best performance, the return fuel should be discharged near the pick-up of the HydraMat at a minimum distance of 1 inch above the mat. HydraMats with a female NPT thread do not require the use of a sealing paste or tape. Use of a sealing paste or tape could result in fuel pump failure.

About Holley Performance Products

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

Downloads:

Download Name File Size
flyer_hydramatbrochureweb.pdf6.19MB
how_to_choose_a_hydramat.pdf126.14KB
hydramat_bulletin.pdf97.35KB
199r10782rev7.pdf1.03MB

Videos:

Specifications:

Emission Code 5
Fitting Size 1/2" NPT
Length 15 inches
Micron 15
Outlet Center
Part Type Fuel Tank Pickup
Product Type HydraMats
Warranty Limited 90 Day
Width 15 inches
