Holley 80 GPH in-Line Universal Electric Fuel Pump 12-920

Holley 80 GPH in-Line Universal Electric Fuel Pump 12-920
Holley 80 GPH in-Line Universal Electric Fuel Pump 12-920
$482.99 ea
NEWARRIVING SOONEstimated Ship Date 06/14/2024 (If Ordered Today)100 Available from HOLLEY PERFORMANCE PRODUCTS as of 05/24/2024
Model: 3991342
STANDARD
DELIVERY
The 12-920 universal in-line fuel pump is intended for Throttle Body EFI, Multipoint EFI and Forced Induction Multipoint EFI systems. It is designed to work in-line, not inside the tank, so installation is a snap. The 12-920 is rated for continuous duty service and have been tested up to 2,500 hours.
Features:
  • Draws 5 amps at 15 psi
  • Will feed up to 800 horsepower throttle body EFI units
  • Will feed up to 700 horsepower multipoint units
  • Will feed up to 600 horsepower forced induction multipoint units
  • OE proven design
  • Lightweight and compact

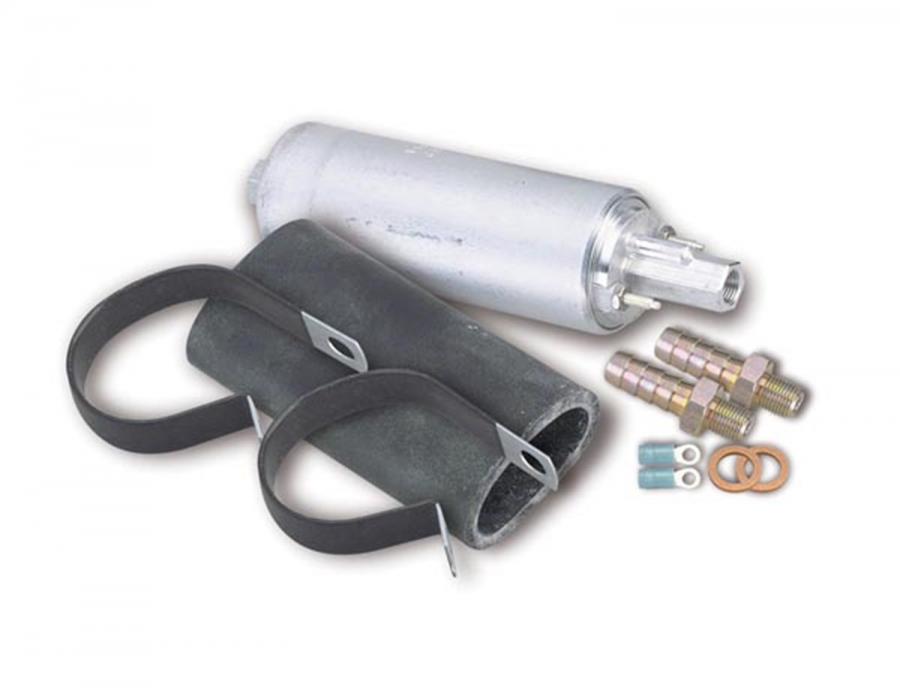

  • Rubber isolator, mounting clamps and electrical hardware included
  • 3/8" barbed fittings included
  • Not designed for use on aircraft of any type.
Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. 10mm x 1.0 inlet and outlets. Includes 10mm x 1.0 gasket sealed 3/8" Outside diameter hose barbs. A/N adapters are available: -6 AN, Part number 26-160. -8 AN, Part number 26-180
Installation Notes:
Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. 10mm x 1.0 inlet and outlets. Includes 10mm x 1.0 gasket sealed 3/8" Outside diameter hose barbs. A/N adapters are available: -6 AN, Part number 26-160. -8 AN, Part number 26-180

About Holley Performance Products

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

Downloads:

Download Name File Size
holleyfuelsystems_chart1.pdf360.32KB
fuel_pump_tech_info.pdf168.1KB
199r10289.pdf71.26KB

Specifications:

Application Universal
Bracket Color Black
Coast Guard Approved Yes
Emission Code 3
Forced Induction HP@43PSI 600
Fuel System Carbureted, EFI
Fuel Type Gasoline

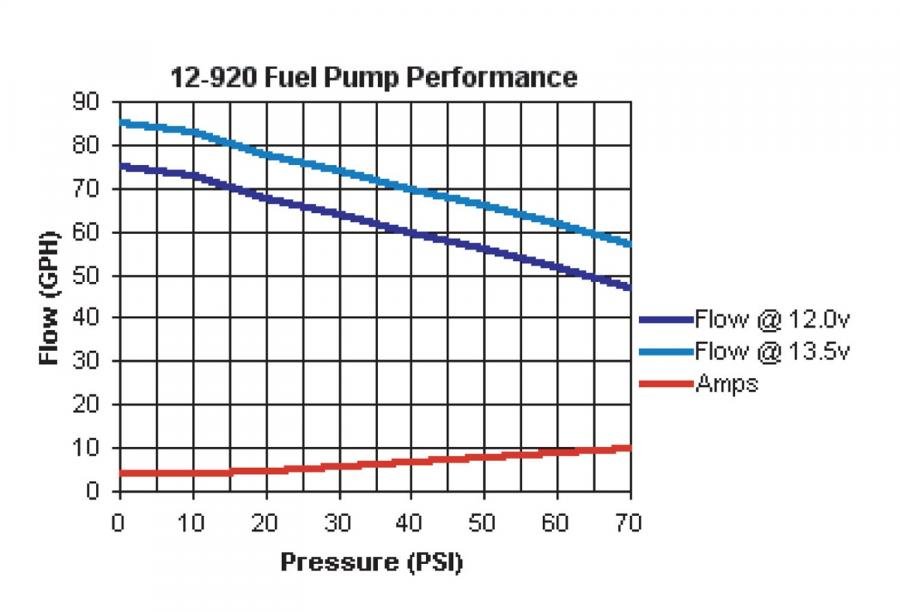

GPH@15PSI 80
GPH@43PSI 67
GPH@60PSI 62
GPH@8PSI 85
Inlet Size 10mm x 1.0
LPH@15PSI 302
LPH@43PSI 254
LPH@60PSI 235
LPH@8PSI 322
Material Steel
Naturally Aspirated HP@15PSI 800
Naturally Aspirated HP@43PSI 700
Naturally Aspirated HP@8PSI 850
Outlet Size 10mm x 1.0
Part Type Electric Fuel Pump
Product Type Fuel Pump
Proposition 65 www.P65Warnings.ca.gov
Pump Body Color Silver
Warranty Limited 90 Day
