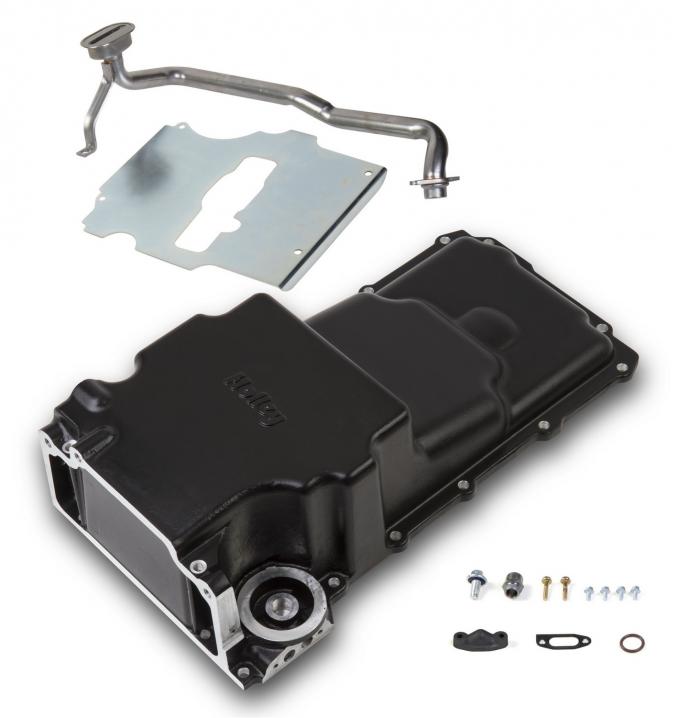

GMs popular LS engines are finding their way into a large variety of vehicles. They make great power, plus they are very durable and reliable. Unfortunately, the factory LS pans do not always fit or they hang too low for todays hot rods. Holleys new LS Retro-fit Engine Oil Pan is designed to help! It provides maximum clearance to the chassis and ground, plus provides an OEM fitment for durability and proper sealing.
- For LS Retrofit Req. More Oil Pan To Chassis Clearance At Front
- Can Be Used anywhere A Gm F-Body Oil Pan Can Be Used
- New Applications Will Be Added As Testing Confirms Fitment
- High-Quality Cast Aluminum With Black Ceramic Coating
- Max Clearance For Vehicles w/Steering Linkage Behind Crossmember
- Cast and Machined Aluminum
Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations
Maximum crankshaft stroke = 3.62"
Sump Oil Capacity - 5.7 Quarts
Total Oil Capacity with stock oil filter - 6.2 Quarts
Oil Filter (AC Delco® PF48 or PF48E, Mobile M1-113, Wix 57060, K&N HP-1017, or equivalent)
Requires use of Holley 302-15 Dipstick and Tube Kit or LS3 dipstick (GM P/N 12669528) and tube (GM P/N 12625031)
*Engine location may need to be adjusted (up / down or fore / aft) for cross member or steering linkage clearance depending on the vehicle, steering configuration and chassis type.
ATTENTION! 302-2 is designed to use a GM "F-body" windage tray, GM P/N 12558253. A modification to the windage tray is required to provide clearance to the pick-up tube. A full-length windage tray may be used if the front quarter of the tray is removed. See the instruction sheets showing the windage tray modifications and lengths required. ATTENTION!
Additional Parts Needed (Oil Pan Gasket 6665G or GM® 12612350, High Quality RTV sealer, Oil Filter -AC Delco® PF48 or equivalent)
