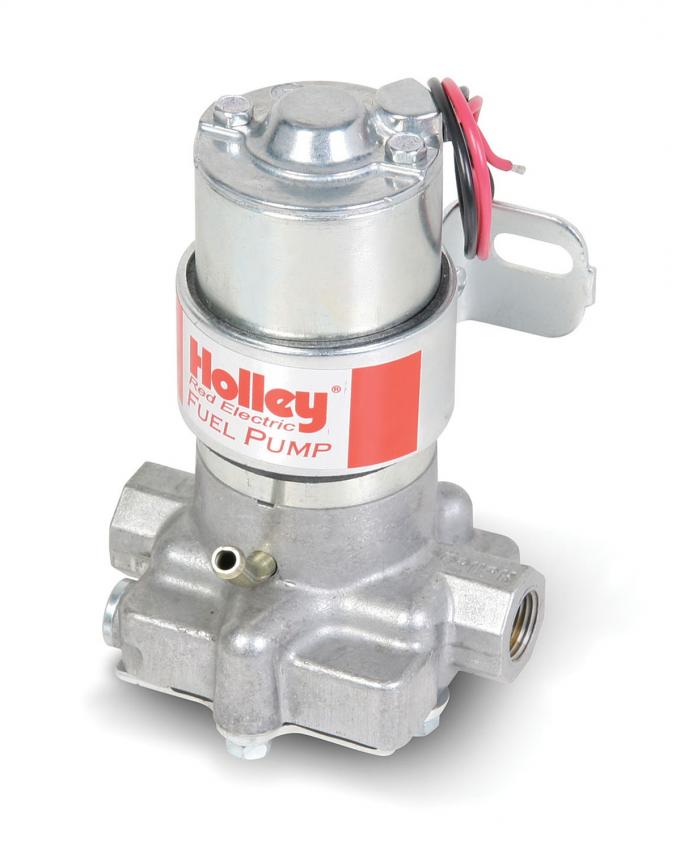

The world famous Red®, Blue® and Black® fuel pumps are the most recognized performance pumps of all times. They have been powering racing legends and street enthusiasts alike since the early 70's. Their time proven rotor/vane design is known to get the job done in an affordable package. Designed with a fume tube for marine use and meets U.S. Coast Guard regulations.
Features:
- Tumble polished billet look
- Lower housing casting designed for enhanced fuel flow and quiet operation
- Maximum pressure is 7 psi
- Motor draws 2 amps current
- 7 1/2 amp fuse recommended
- Constant fuel flow with no pulsation
- Improved design for street/strip applications
- Not designed to be used on aircraft of any type.
- Distinctive “Red” logo
- Flows 97 GPH (free flow)
- Flows 71 GPH at 4 psi
- regulator is not required
- Has externally accessible pressure relief valve (max 7 psi)
- Rotor/vane pump design is more tolerant of contaminated fuels
- Weighs only 2.88 lbs
- Includes mounting bracket
- Repair kits are readily available
- Can be serviced from the pump end
- Not compatible with alcohol or methanol fuels
- Use of safety shut-off switch, P/N 12-810, strongly recommended
- Not designed or recommended for use with fuel injection systems
- Meets U.S. Coast Guard regulations
- Includes Fuel/vapor tube
Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. These are to be used with 12 volt systems only.
Installation Notes:
Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. These are to be used with 12 volt systems only.
