Holley Single Plane Split-Design Race Intake Manifold- GM LS3/L92-4150 300-291

Holley Single Plane Split-Design Race Intake Manifold- GM LS3/L92-4150 300-291
Holley Single Plane Split-Design Race Intake Manifold- GM LS3/L92-4150 300-291Holley Single Plane Split-Design Race Intake Manifold- GM LS3/L92-4150 300-291Holley Single Plane Split-Design Race Intake Manifold- GM LS3/L92-4150 300-291Holley Single Plane Split-Design Race Intake Manifold- GM LS3/L92-4150 300-291Holley Single Plane Split-Design Race Intake Manifold- GM LS3/L92-4150 300-291Holley Single Plane Split-Design Race Intake Manifold- GM LS3/L92-4150 300-291Holley Single Plane Split-Design Race Intake Manifold- GM LS3/L92-4150 300-291Holley Single Plane Split-Design Race Intake Manifold- GM LS3/L92-4150 300-291Holley Single Plane Split-Design Race Intake Manifold- GM LS3/L92-4150 300-291Holley Single Plane Split-Design Race Intake Manifold- GM LS3/L92-4150 300-291Holley Single Plane Split-Design Race Intake Manifold- GM LS3/L92-4150 300-291Holley Single Plane Split-Design Race Intake Manifold- GM LS3/L92-4150 300-291Holley Single Plane Split-Design Race Intake Manifold- GM LS3/L92-4150 300-291Holley Single Plane Split-Design Race Intake Manifold- GM LS3/L92-4150 300-291Holley Single Plane Split-Design Race Intake Manifold- GM LS3/L92-4150 300-291Holley Single Plane Split-Design Race Intake Manifold- GM LS3/L92-4150 300-291
$880.99 ea
NEWARRIVING SOONEstimated Ship Date 04/19/2024 (If Ordered Today)51 Available from HOLLEY PERFORMANCE PRODUCTS as of 03/28/2024
Model: 3992589
STANDARD
DELIVERY

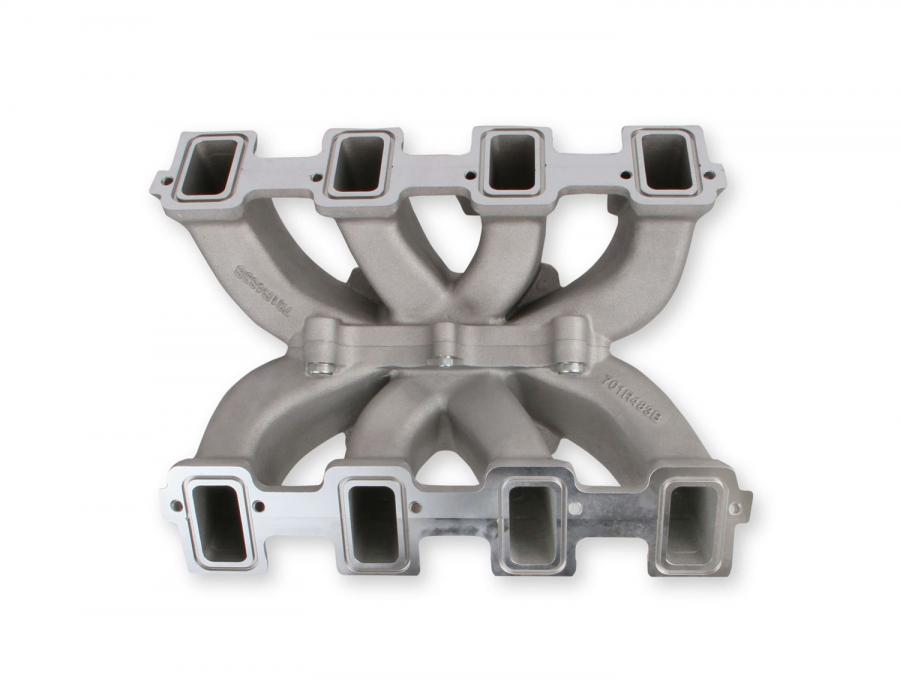

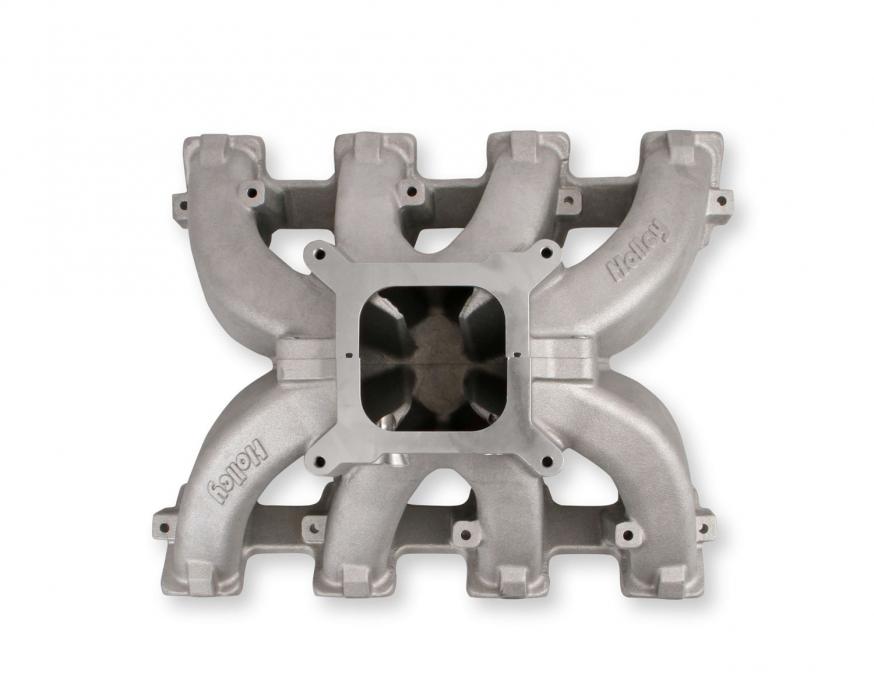

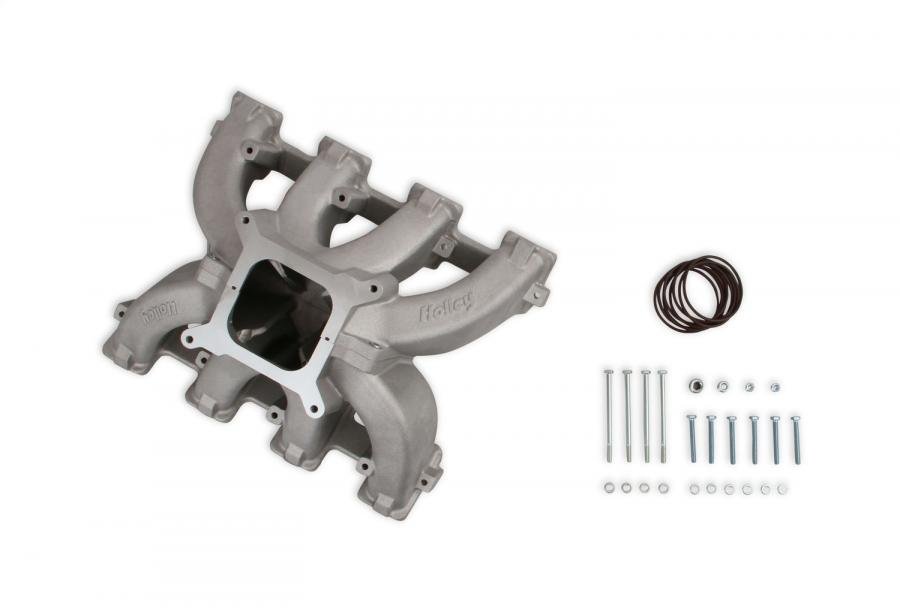

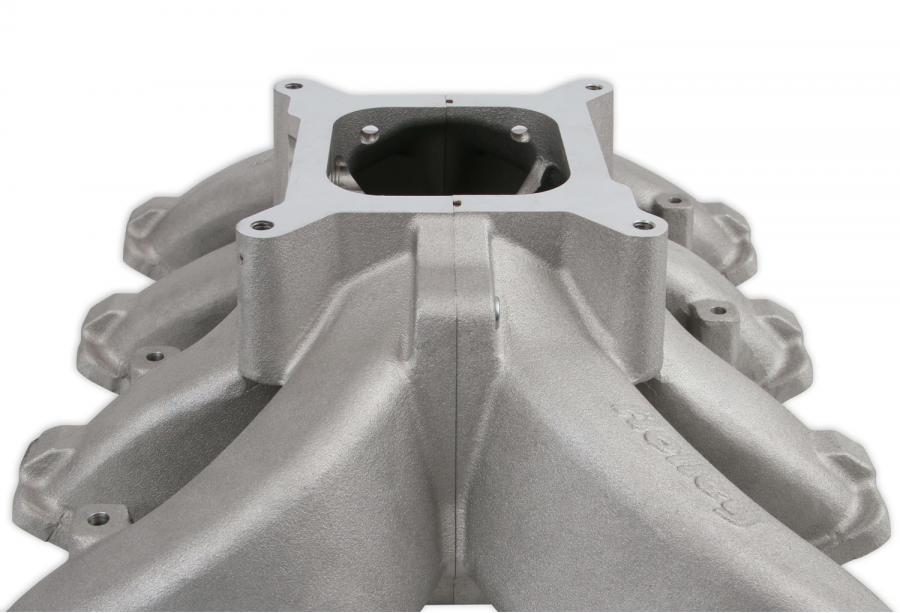

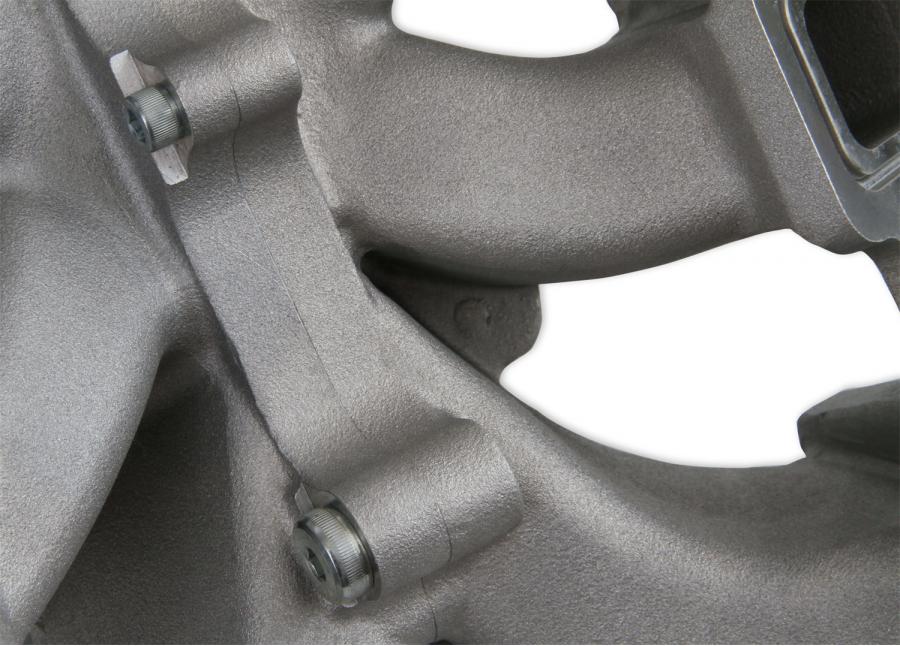

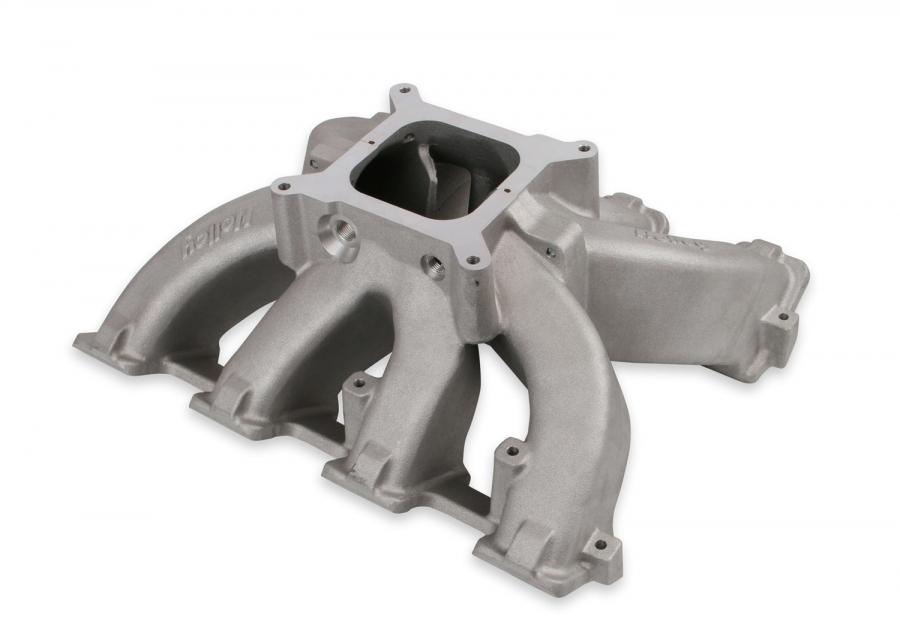

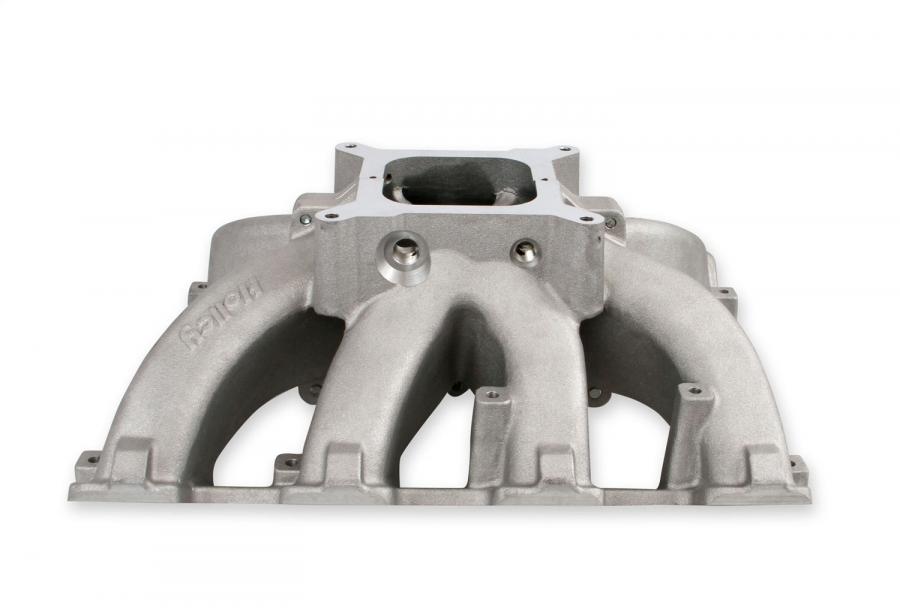

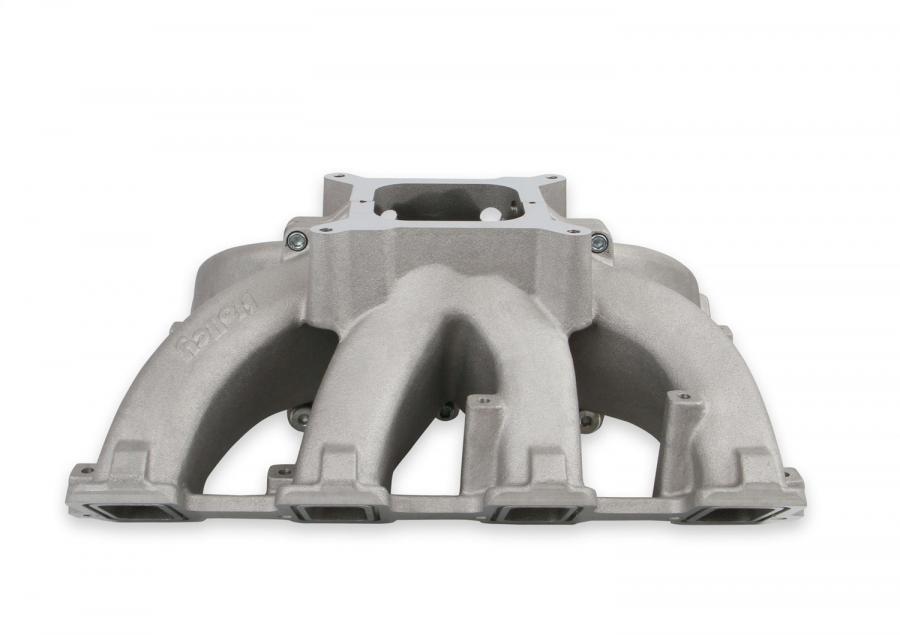

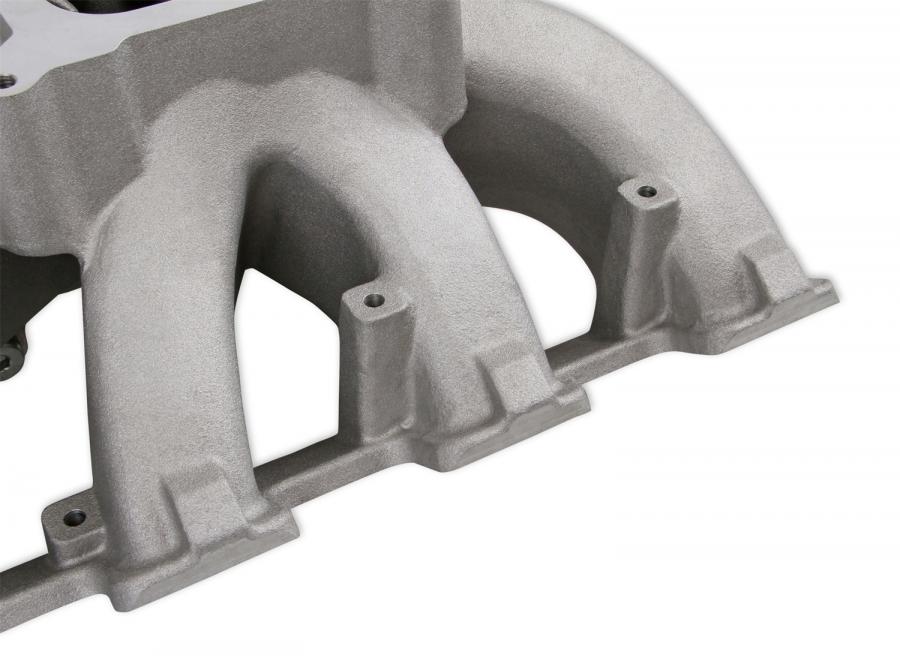

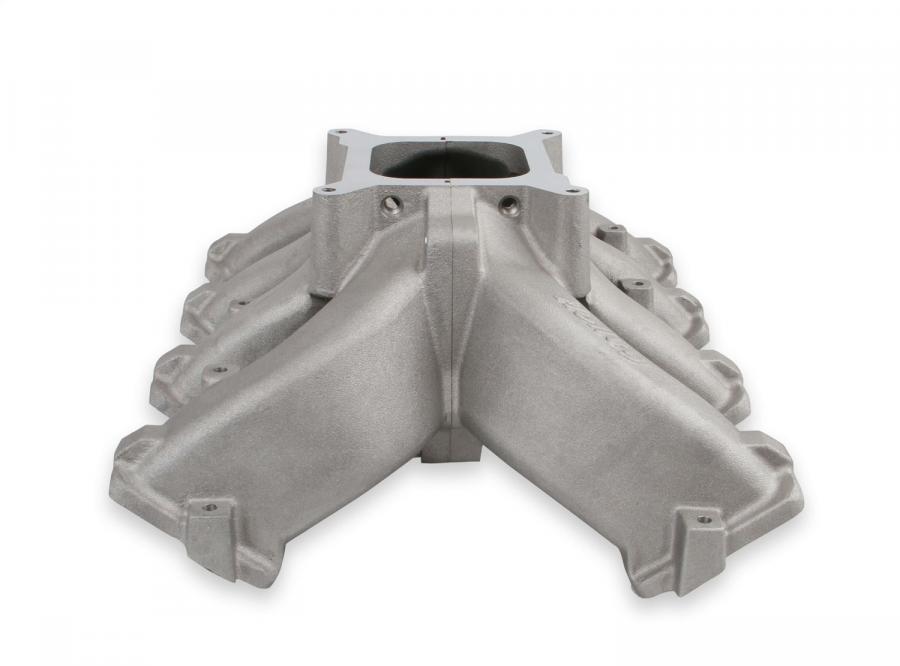

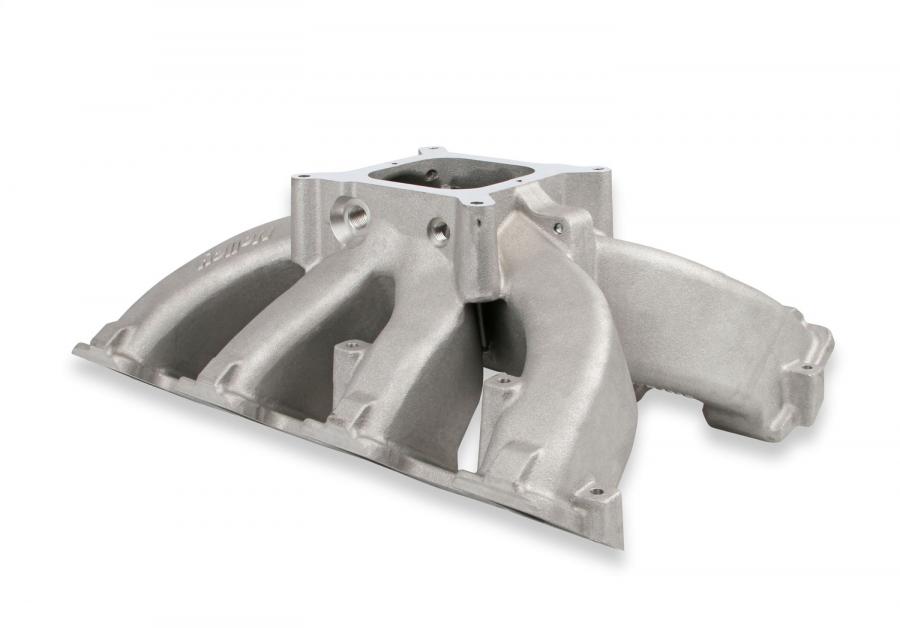

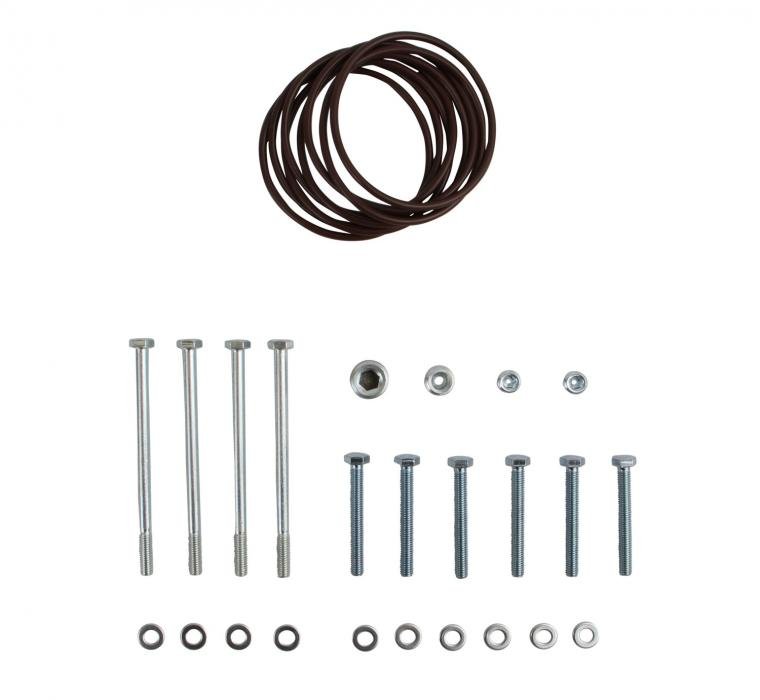

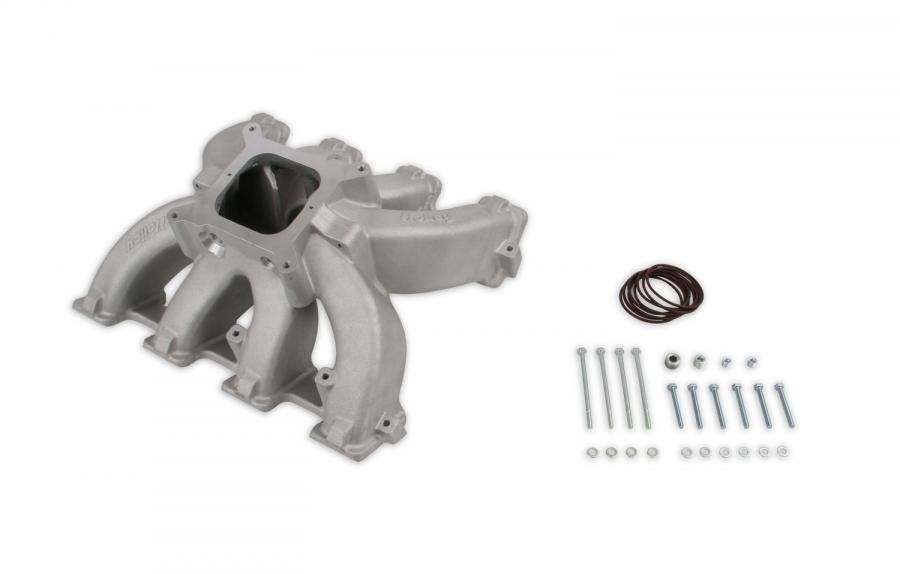

The new Holley Single-Plane Race intake manifold were designed with performance in mind. They feature a race bred, two piece split feature that was previously only found on the most expensive race intakes. The manifold will fit GM LS Gen III engines with LS3/L92 heads and are intended for 4150 style square bore flanged carburetors or throttle body EFI. The LS Race single-plane intake manifold was designed for hi-performance/racing engine applications, 5.3 to 6.2+ liter displacement, and maximum engine speeds of 6000-7000 rpm, depending on the engine combination. This single-plane design provides optimal performance across the RPM spectrum while providing maximum performance up to 7000 rpm. The Holley LS Race manifold incorporates a split feature, which allows disassembly of the intake for direct access to internal plenum and port surfaces, making custom porting and matching a snap. With shoulder bolt locators and O-ring seal, reassembly is simple and precise. Technical Data:  A-B Height - 7.25" (0° carb flange angle)  Port Size- 2.59" Height x 1.28" Wide  Carburetor Flange - Standard 4150 for up to 1-3/4" diameter throttle bores  As-Cast Runner Cross-Sectional Area - 4.5 in² at the runner entry tapered to 3.2 in² at the flange exit
Features:
  • Maximum performance race design with hood clearance consideration
  • Lighter than other split race intakes
  • Split feature making porting efforts easy!
  • 33 to 50% the price of other split race intakes

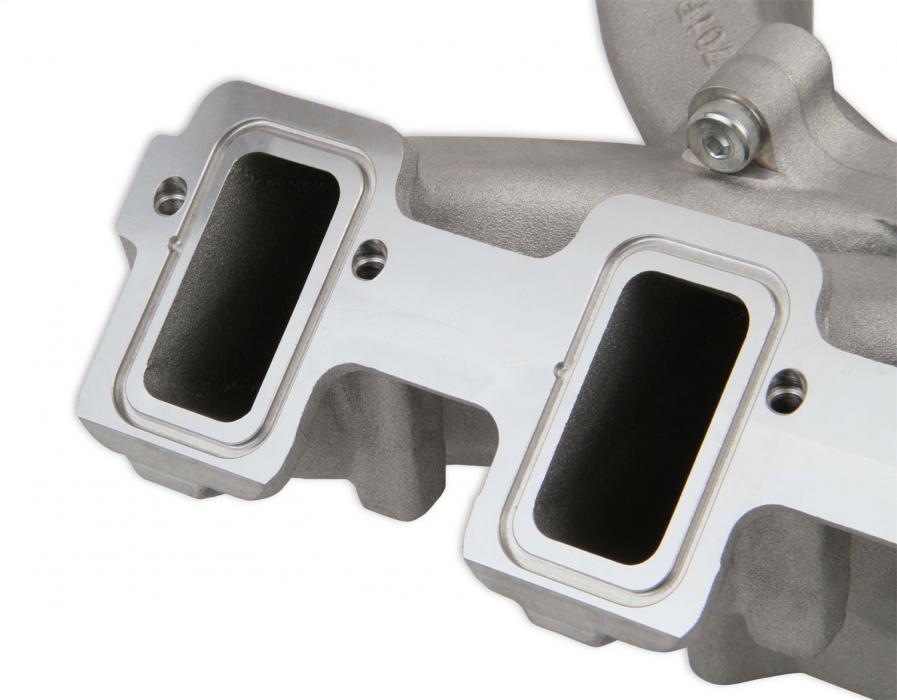

  • Captured O-ring seals at head ports and split

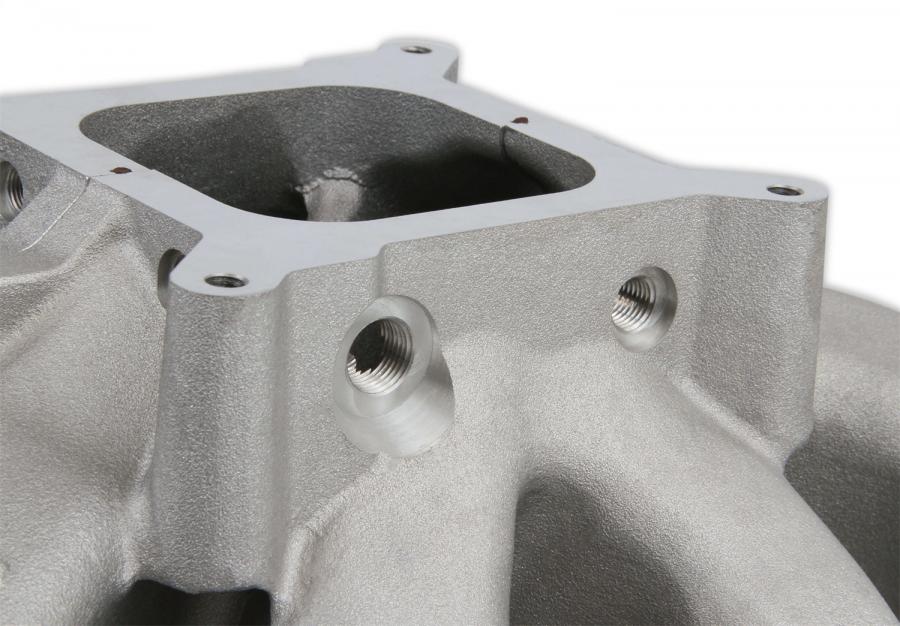

  • Vacuum Port options include (2) 1/8, (1) 1/4, and (1) 3/8, NPT ports at the carb flange
About Holley Performance Products

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

Downloads:

Download Name File Size
199r11472.pdf852.2KB

Videos:

Specifications:

Barrels 4
Color Silver
Construction Cast
Emission Code 3
Engine GM LS3/L92
Finish Silver
Flange Style 4150 Square Bore
Front Height 7.25 inch
Fuel System Type Carb
Manifold Type Split Single Plane
Part Type Engine Intake Manifold
Product Type Intake Manifold
Rear Height 7.25 inch
Recommended Use Forced Induction
RPM Power Band 2500-7000 RPM
Warranty Limited 90 Day
