Holly Sniper EFI Fuel Tank System 255 LPH 19-114

Holly Sniper EFI Fuel Tank System 255 LPH 19-114
Holly Sniper EFI Fuel Tank System 255 LPH 19-114Holly Sniper EFI Fuel Tank System 255 LPH 19-114Holly Sniper EFI Fuel Tank System 255 LPH 19-114Holly Sniper EFI Fuel Tank System 255 LPH 19-114Holly Sniper EFI Fuel Tank System 255 LPH 19-114Holly Sniper EFI Fuel Tank System 255 LPH 19-114Holly Sniper EFI Fuel Tank System 255 LPH 19-114
$1,193.99 ea
NEWARRIVING SOONEstimated Ship Date 03/26/2024 (If Ordered Today)4 Available from HOLLEY PERFORMANCE PRODUCTS as of 03/02/2024
Model: 3992992
OVERSIZE 2

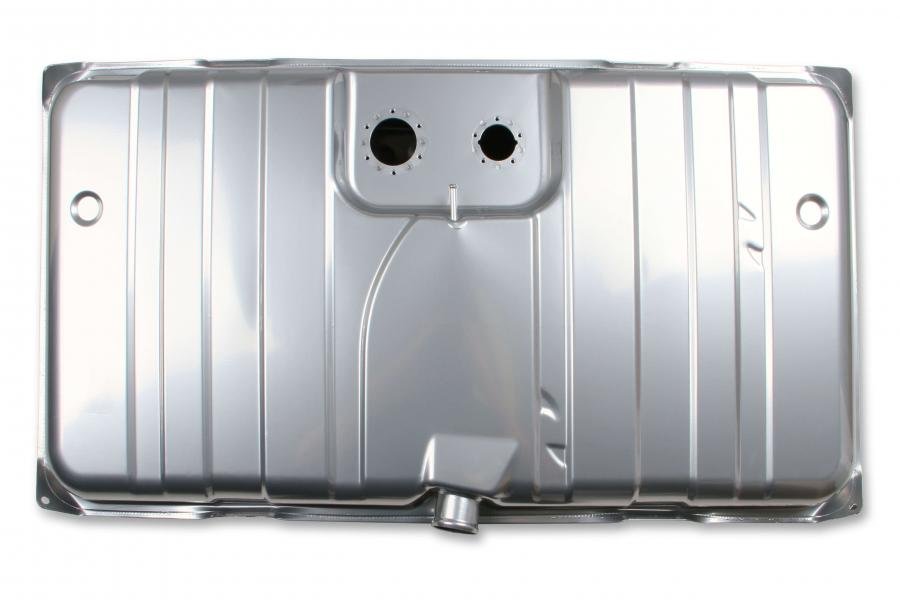

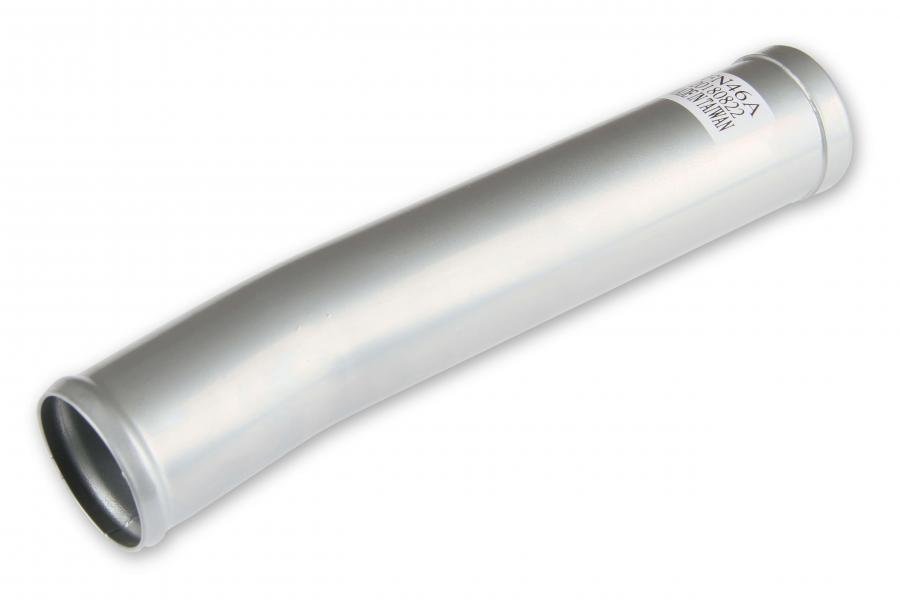

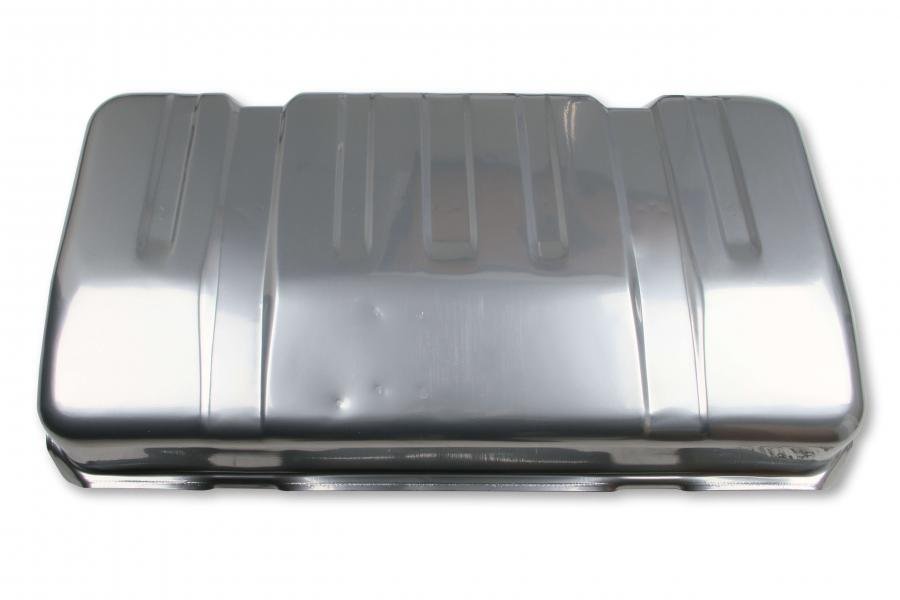

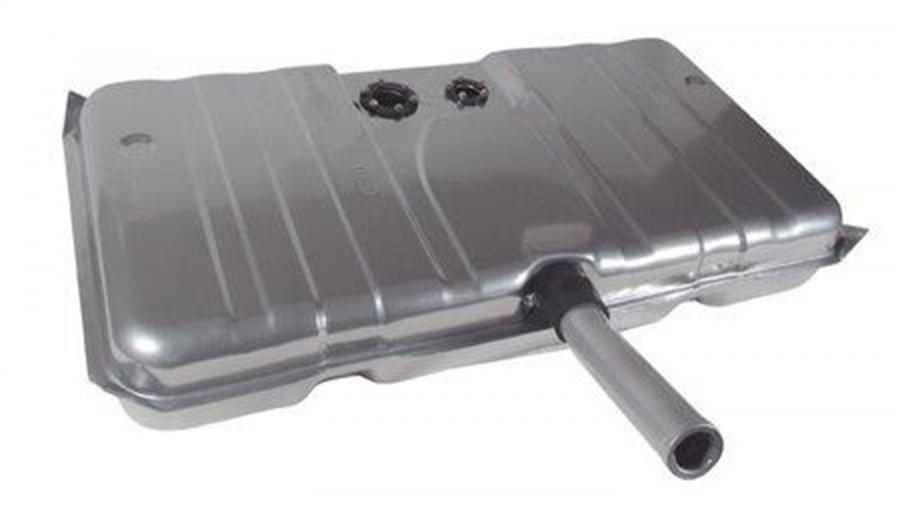

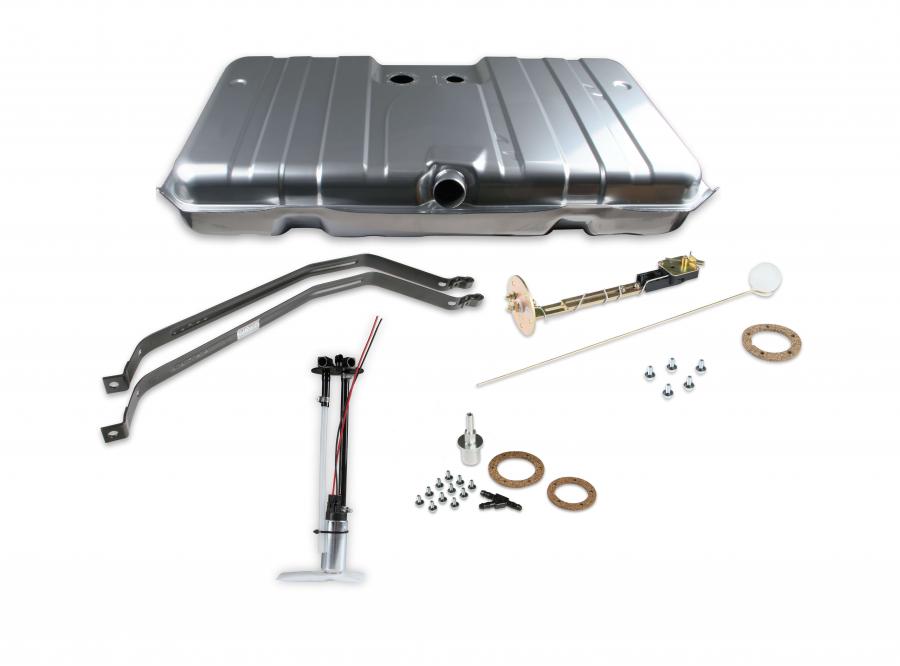

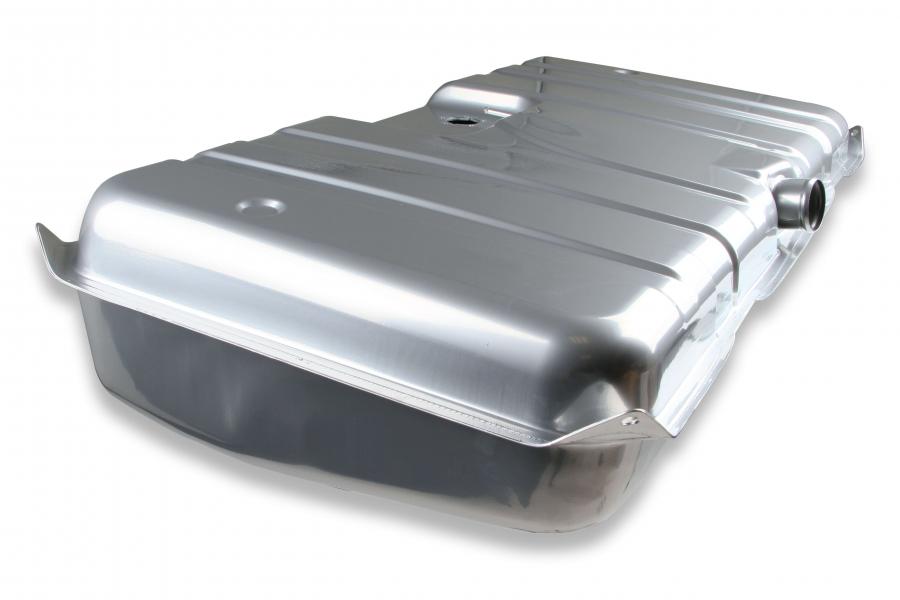

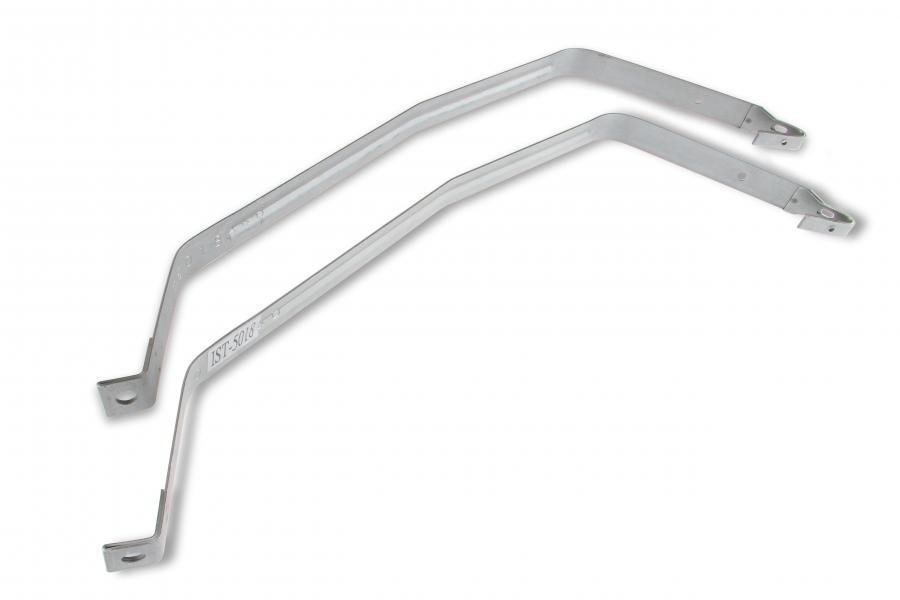

Holley and Sniper will help you to complete your EFI swap with our new EFI Conversion Fuel Tanks. Each tank is a direct fit for your application-no modifications necessary. The kit includes the tank, a 255 lph fuel pump, internal baffling, a fuel level sender, tank straps, and the filler neck. The tank is powder coated for corrosion resistance and great looks. These tank kits are a complete solution for your EFI project! Supports up to 550 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw) Size is: 38" x 19-3/8" x 8-3/8" ***Hose clamps are not included for two piece filler neck.
Features:
  • EFI style tank baffling includes a large 4.3 liter internal fuel tray to prevent fuel pump starvation
  • Tanks are coated galvanized steel then powder coated silver for total corrosion protection
  • Fuel level sender included with the correct Ohm range for your factory gauges

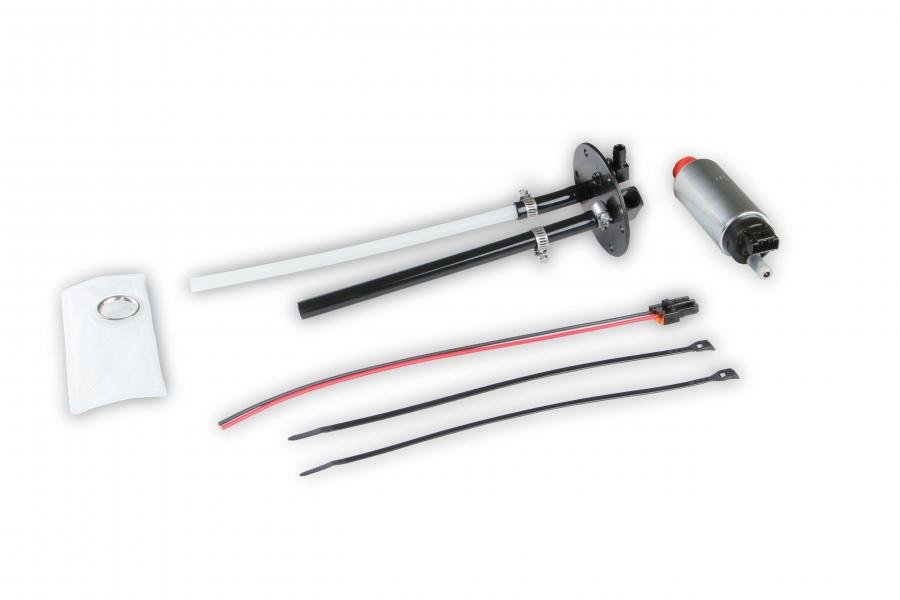

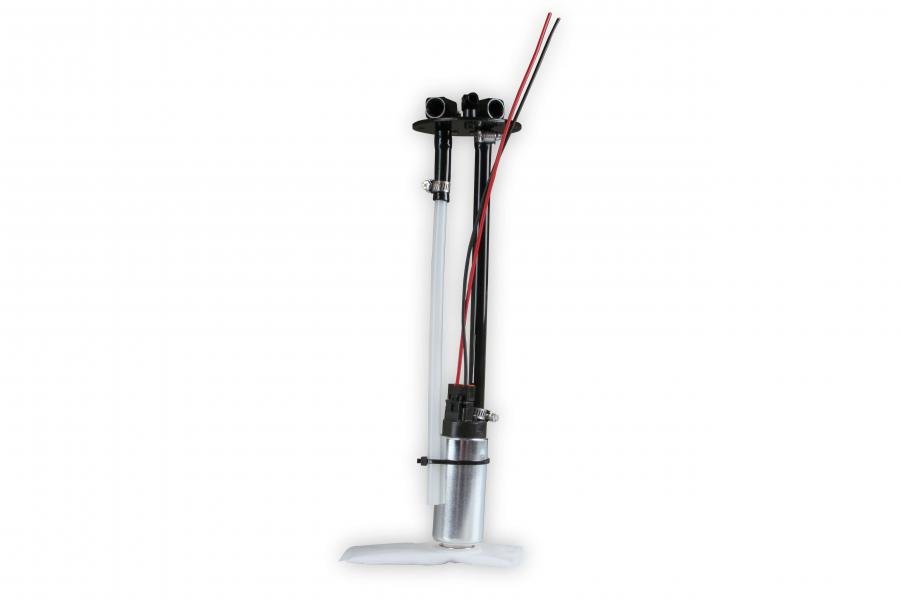

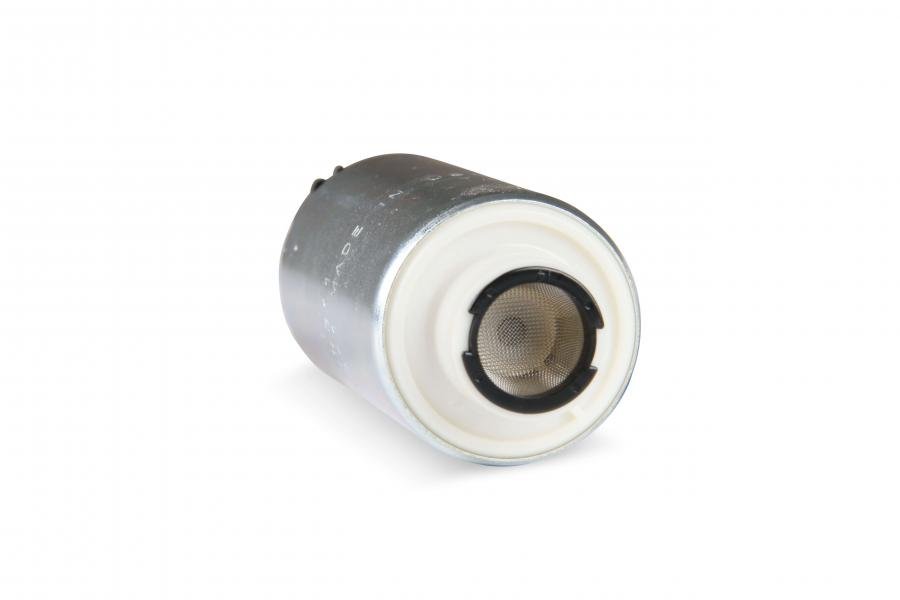

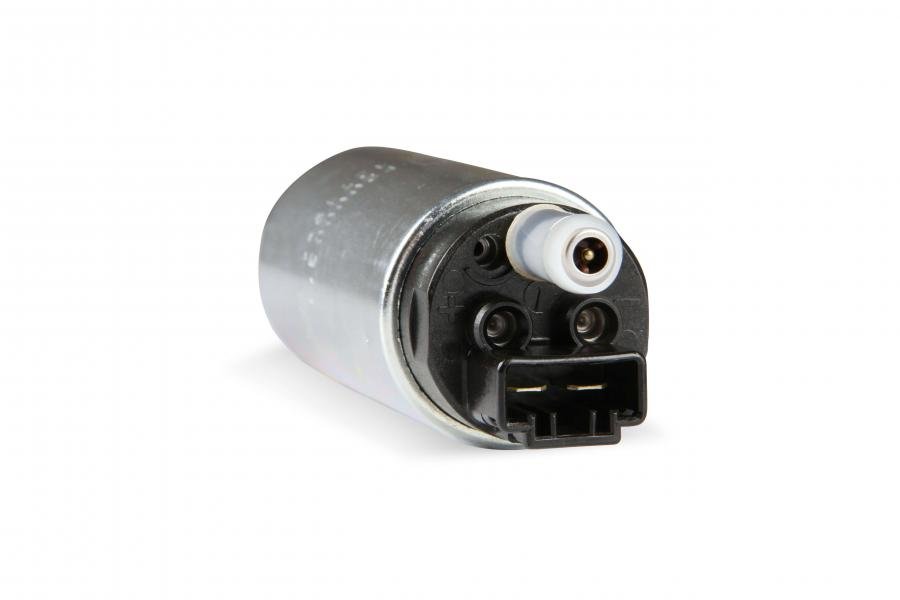

  • 255 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness
  • Fuel pump and sender are recessed in the tank to provide an easy installation with no modification to your car
  • Sender has ¼" NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting
  • Fits and looks like an OE tank when installed
  • Complete bolt in solution for your EFI conversion
When installing sending units, please remember to rotate the unit until the mounting holes align with the flange holes in the tank.
Installation Notes:
When installing sending units, please remember to rotate the unit until the mounting holes align with the flange holes in the tank.

Downloads:

Download Name File Size
199r11142rev.pdf771.95KB

Videos:

Specifications:

Application 1968-1969 Chevy II Nova
Color Silver
Drain Plug No
Emission Code 3
Finish Powdercoated
Free Flow LPH 255
Fuel Sending Unit Ohms 0-90 Ohms
Fuel System Type Gasoline
Gallon Capacity 20
Material Steel
New Straps Included Yes
Part Type Fuel Tank and Pump Assembly Combination
Product Type Fuel Tank
Proposition 65 www.P65Warnings.ca.gov
Warranty Limited 90 Day
