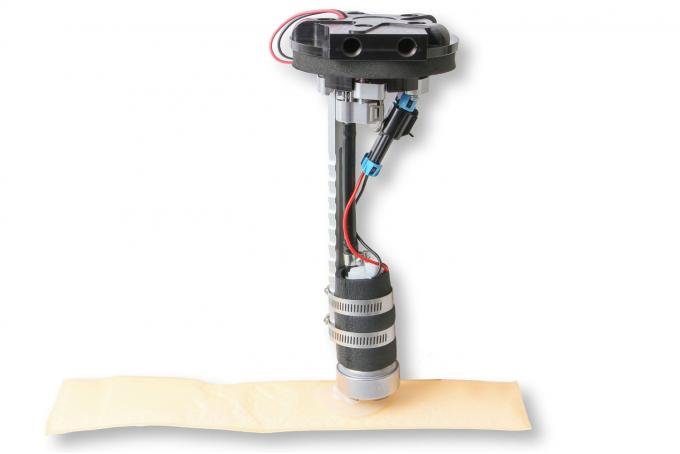

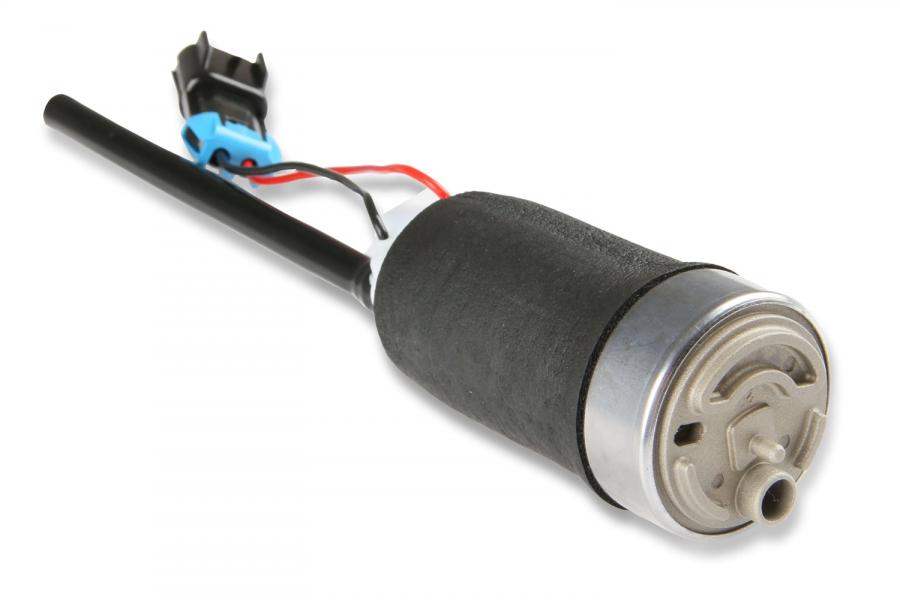

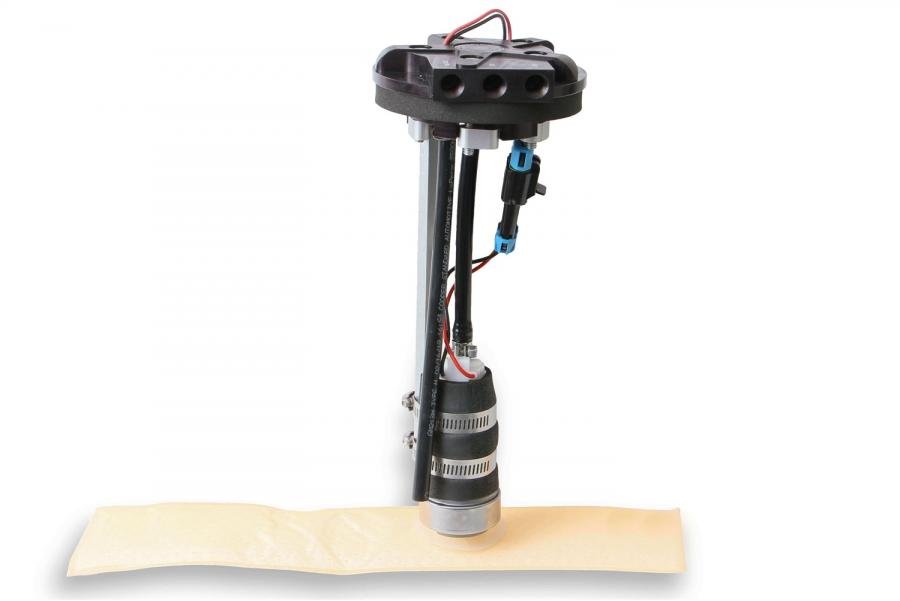

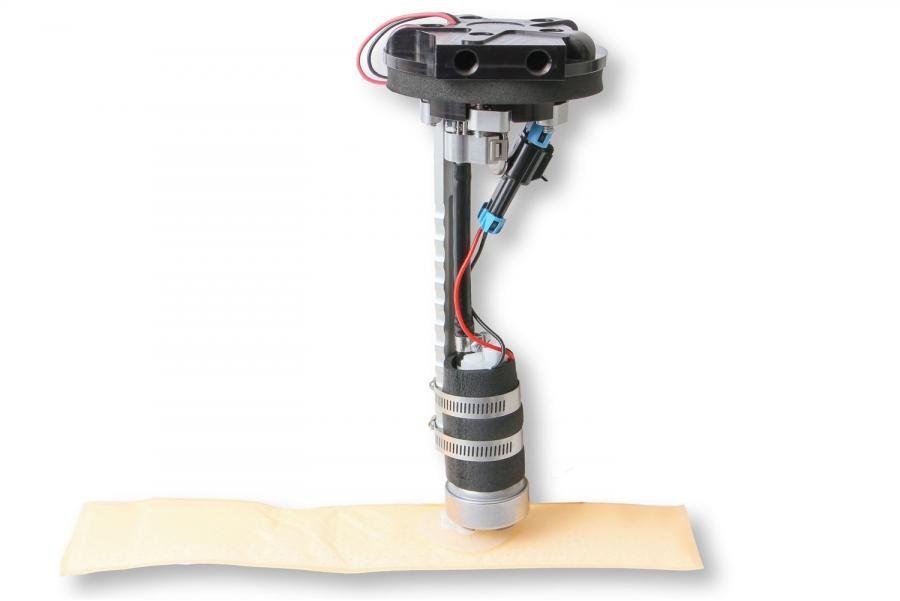

The Holley In-tank RetroFit Fuel Modules are now available with a 525 LPH Pump.

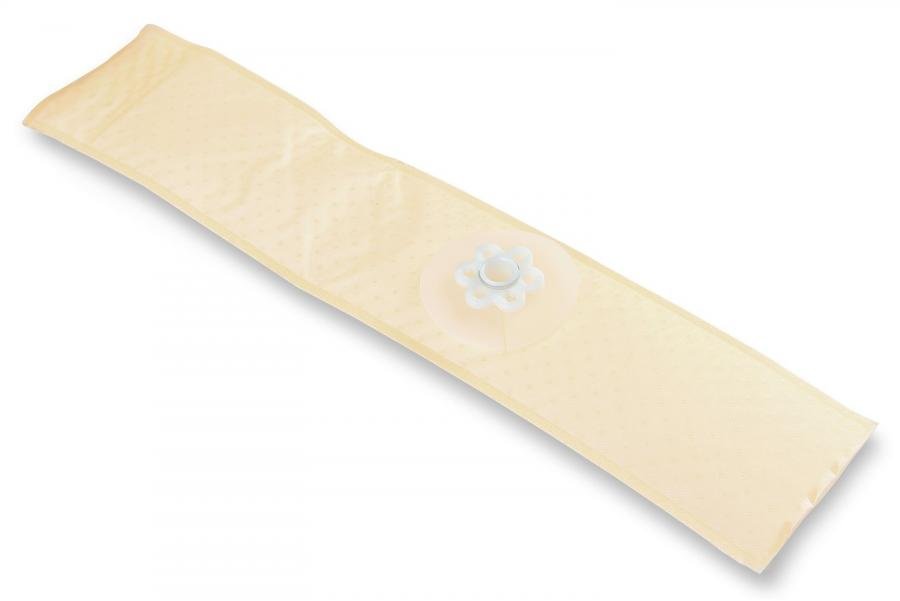

Convert your factory tank or fuel cell to an in-tank EFI fuel system quickly and easily! And- add the benefits of a Holley Hydramat in the process! The conversion is easily accomplished with basic tools and requires no welding or fabrication. The billet aluminum module design includes a billet pump hanger bracket to control pump vibration while also providing a low profile 5 inch diameter design to fit where space is at a premium. Holley's innovative clamping system and integrated fuel pump makes it easy.
Supports up to 1200 EFI or 1450 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw) Of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, regulator type, fuel cell location, etc...
Features:
- Retrofit Fuel Module 525 LPH- Return Style
- Installs in any fuel tank from 7.5” to 12” deep to fit a wide variety of applications

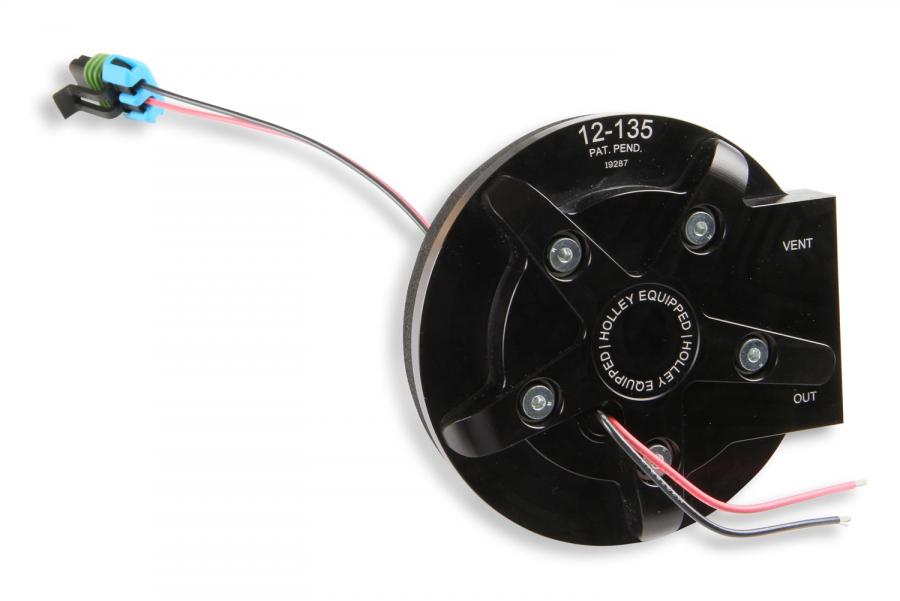

- The low profile 5 inch diameter design is only 1.275 inches thick above the tank mounting surface for added clearance when needed

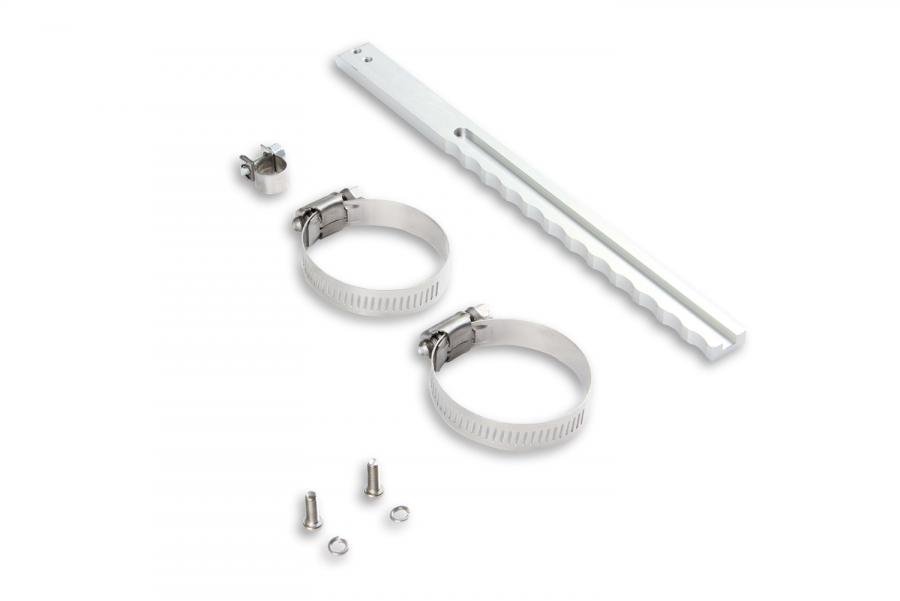

- The innovative clamping system allows you to locate the module anywhere in the tank beside your existing sending unit
- The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride
- Black anodized aluminum construction for corrosion resistance and long lasting good looks
- ¼” NPT ports for a wide variety of plumbing options
- Optional roll over valve available
It is recommended to use a Holley 12-753 30 Amp Fuel Pump Relay along with a minimum size of 12 Gauge wire for your installation.
*** Maximum 6AN line and fitting size due to space limitations between unit and fuel tank.
Installation Notes:
It is recommended to use a Holley 12-753 30 Amp Fuel Pump Relay along with a minimum size of 12 Gauge wire for your installation.
*** Maximum 6AN line and fitting size due to space limitations between unit and fuel tank.
