STANDARD
| Download Name | File Size |
| 97140223rev.pdf | 344.53KB |
| Make | Model | Years | Engine | Fitment Notes |
| Chevrolet | Chevy II | 1964 | 4.6L / 283 / V8 | SAFETY BELLHOUSING; 4.684 IN. BORE DIA.; 6.45 IN. DEPTH; 2.25X4.06 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANSMISSION; DESIGNED FOR MECHANICAL CLUTCH LINKAGE; |
| Chevrolet | Chevy II | 1965 | 5.3L / 327 / V8 4.6L / 283 / V8 |
SAFETY BELLHOUSING; 4.684 IN. BORE DIA.; 6.45 IN. DEPTH; 2.25X4.06 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANSMISSION; DESIGNED FOR MECHANICAL CLUTCH LINKAGE; |
| Chevrolet | Chevy II | 1966 | 5.3L / 327 / V8 4.6L / 283 / V8 |
SAFETY BELLHOUSING; 4.684 IN. BORE DIA.; 6.45 IN. DEPTH; 2.25X4.06 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANSMISSION; DESIGNED FOR MECHANICAL CLUTCH LINKAGE; |
| Chevrolet | Chevy II | 1967 | 5.3L / 327 / V8 4.6L / 283 / V8 |
SAFETY BELLHOUSING; 4.684 IN. BORE DIA.; 6.45 IN. DEPTH; 2.25X4.06 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANSMISSION; DESIGNED FOR MECHANICAL CLUTCH LINKAGE; |
| Clutch | 11" |
| Clutch Operation | Hydraulic or Chevy Mechanical |
| Color | Red |
| Emission Code | 5 |
| Engine | Chevrolet Small Block Gen I, Chevy Big Block V8 |
| Engine Make | Chevrolet |
| Flywheel | 153 or 168 Tooth |
| Height | 6.45 |
| Make | Chevrolet |
| Material | Steel |

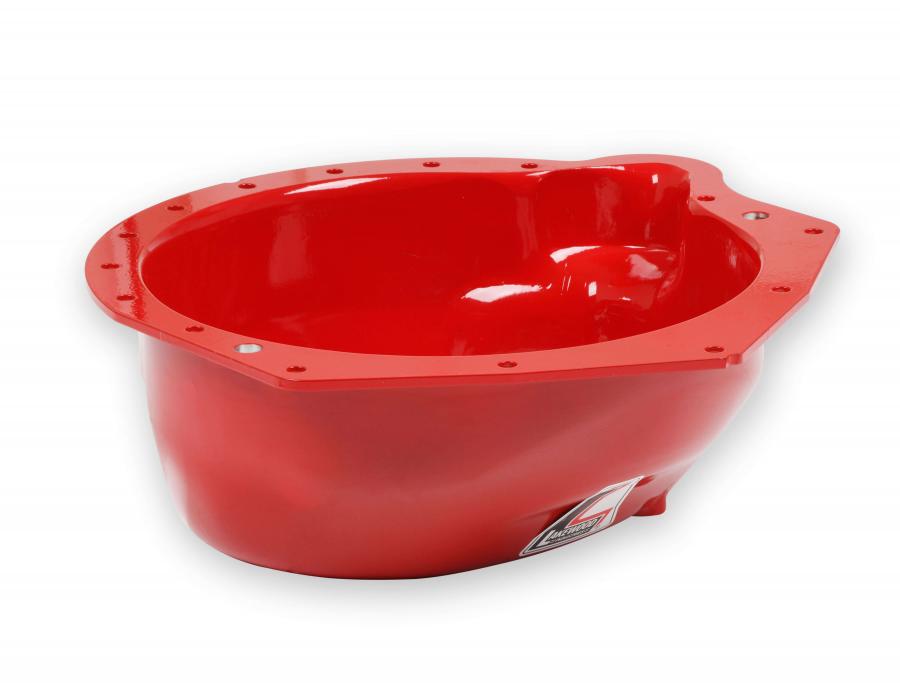

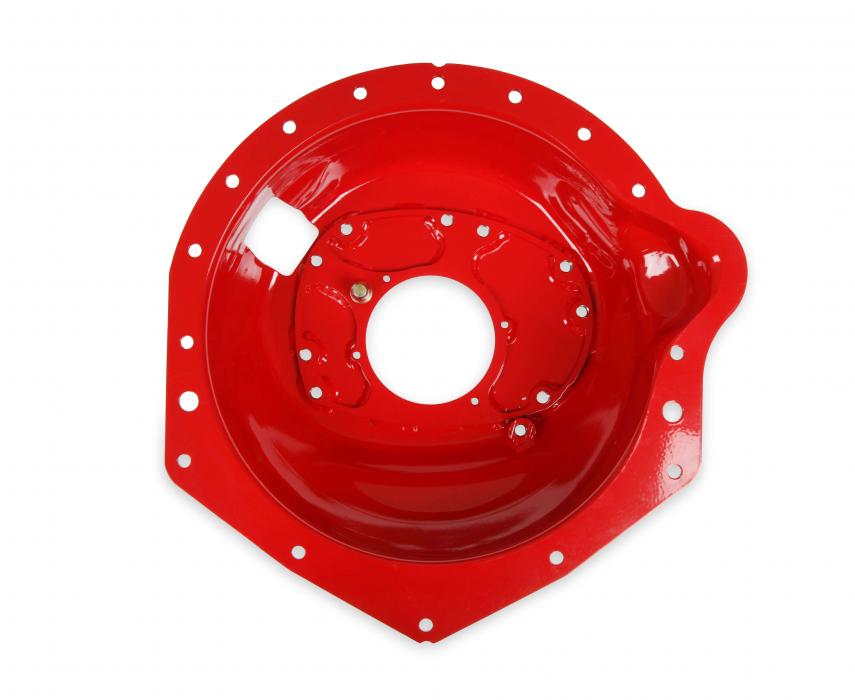

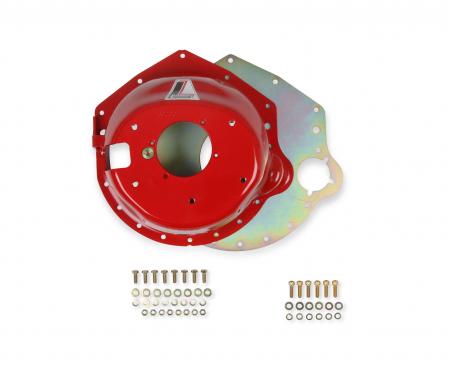

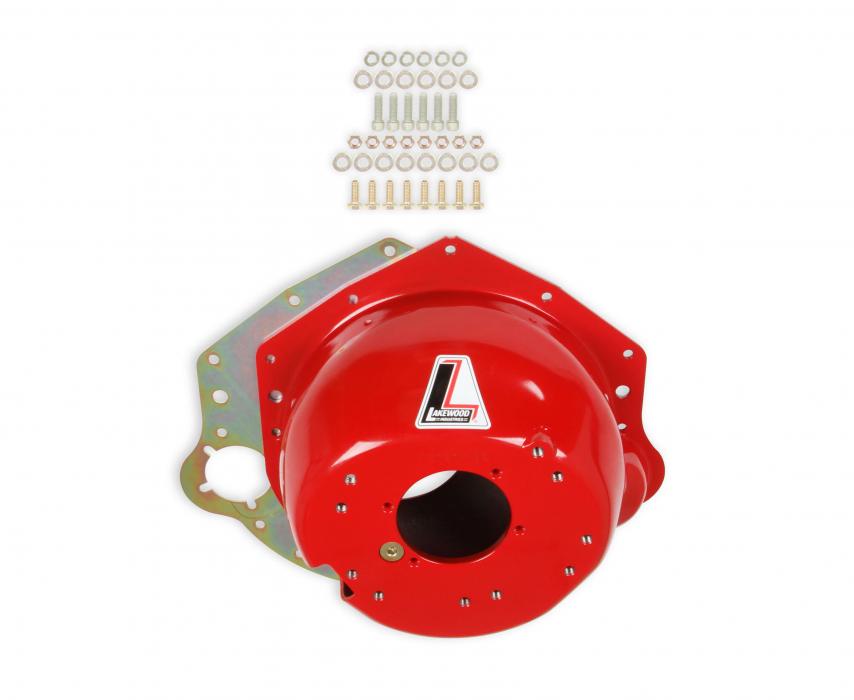

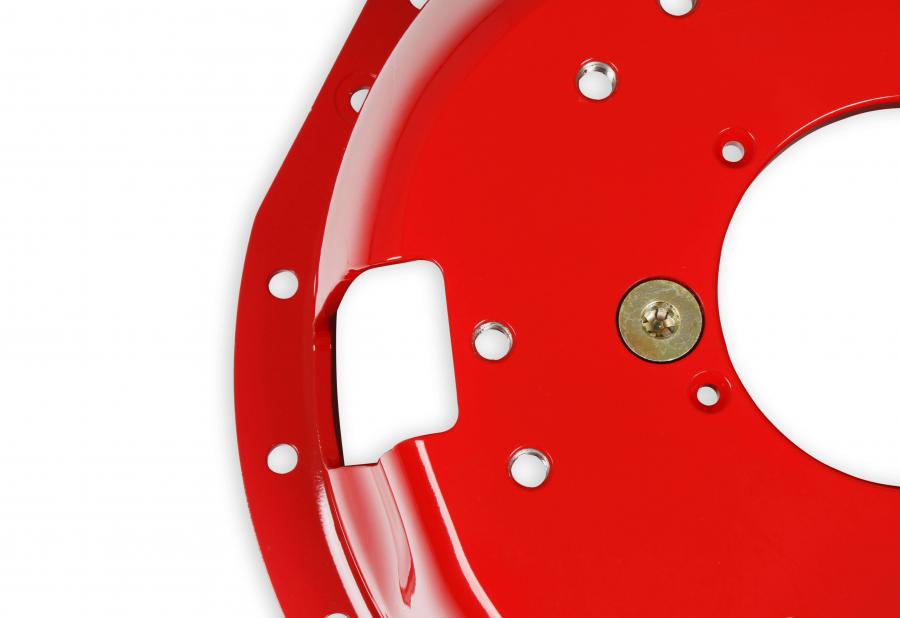

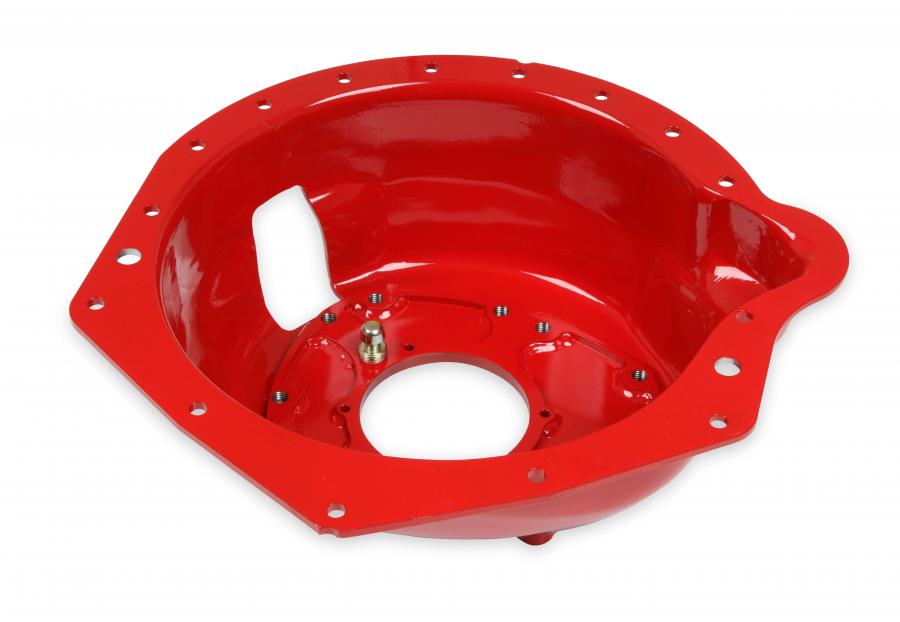

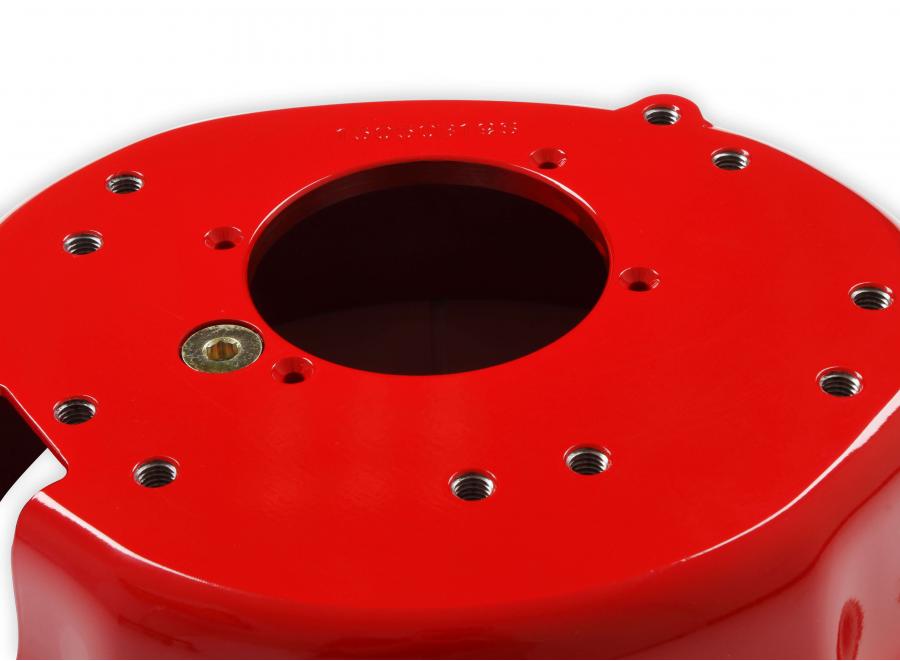

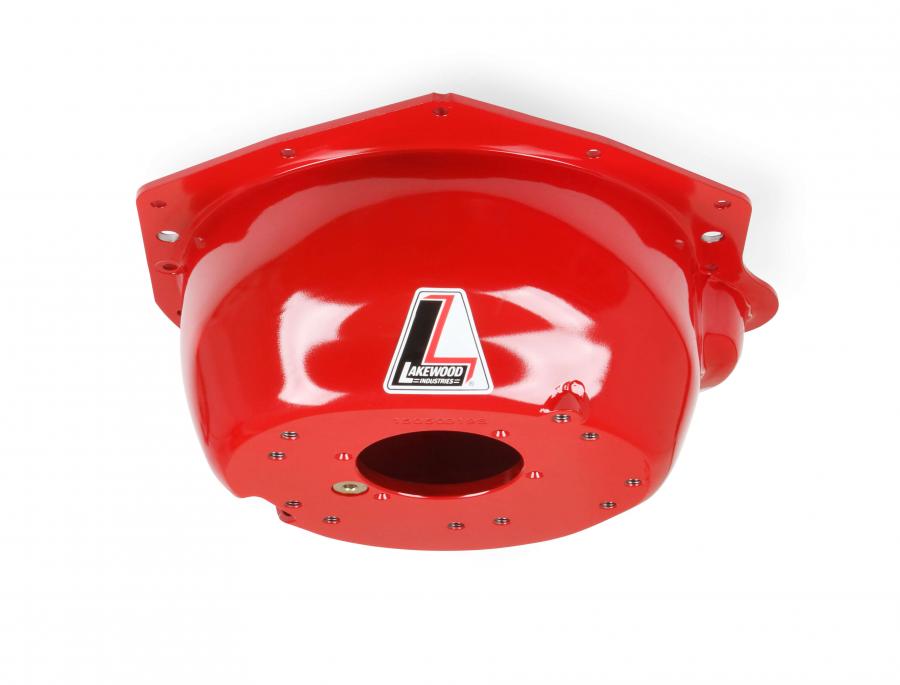

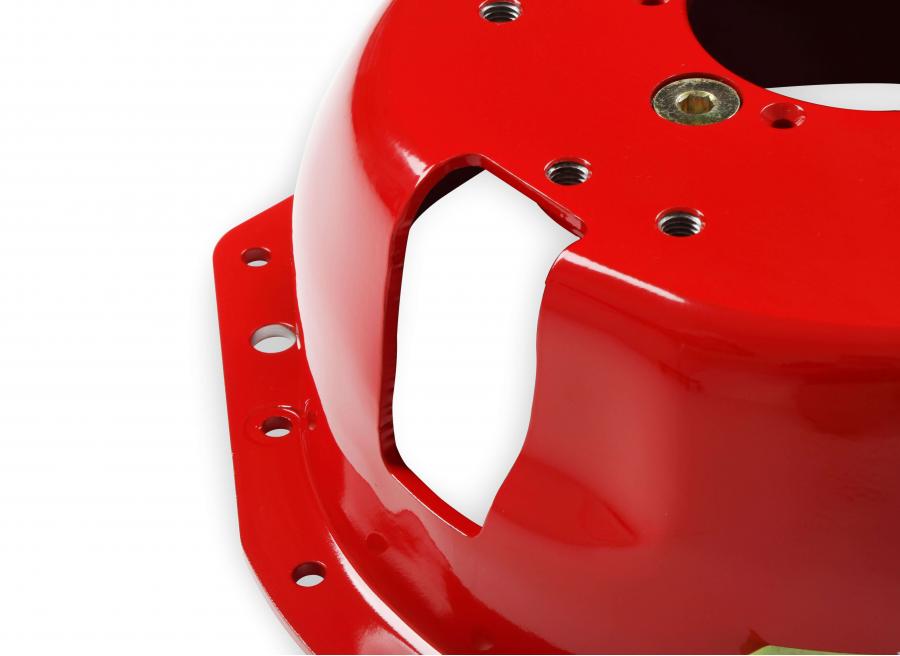

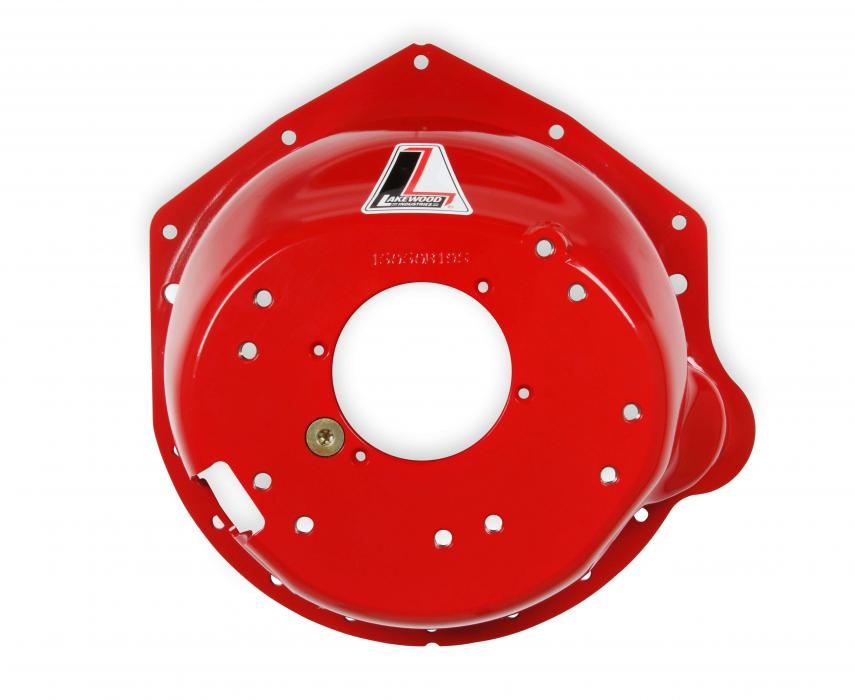

| Part Type | Transmission Bell Housing |
| Product Type | Bellhousing |
| SFI Approved | Yes |
| SFI Certification | 6.1 |
| Trans. Bore Diameter | 4.685 |
| Transmission | Bert Racing, BorgWarner, Muncie, T10, TKX GM, TKO 500/600 GM, Brinn Racing, Falcon, Jerico, Richmond, Saginaw |
| Transmission Type | Manual |
| Weight | 36 |
