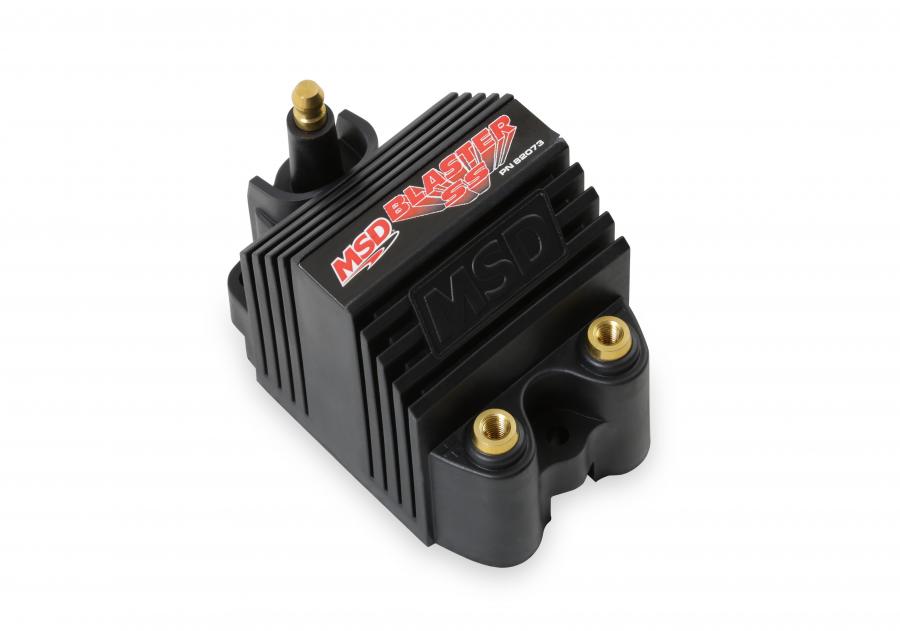

MSD Ignition Coil, Blaster SS, Black 82073

Name: MSD Ignition Coil, Blaster SS, Black 82073
Brand: MSD
SKU: 4017523
Price: 127.99 CAD
Availability: InStock

$127.99 ea

NEWARRIVING SOONEstimated Ship Date 05/10/2024 (If Ordered Today)100 Available from HOLLEY PERFORMANCE PRODUCTS as of 04/19/2024

Model: 4017523

0 reviewsWrite a Review Add to Wish List

CALL US
855.444.6872

Description Downloads Video Specifications Reviews (0) Product Q&A Related Products

Don't let the compact size of the Blaster SS Coil fool you, because it is packed with performance! The efficient E-core windings are designed to produce high amounts of current without sacrificing the voltage output. In fact, when used with an MSD 6 Series Ignition, the Blaster SS produces 300 milliamps with a maximum voltage output of 40,000 volts! Note: If installing the Blaster SS Coil to a points distributor or a non-current limiting ignition system without an MSD Ignition, a 0.8 ohm ballast resistor is required (MSD PN 8214). The resistor should wire in series along with any factory resistors on the positive coil wire.

Features:

Improved output coil for electronic ignitions, and MSD Ignitions
Efficient winding design and assembly creates a compact housing
Primary and secondary windings are encased in Ciba polyurethane
70:1 turns ratio and lower primary resistance produce high voltage output
Tough, rigid housing with a tall tower and brass primary terminals
CARB E.O. D-40-37

CARB EO: D-40-37

Installation Notes:

CARB EO: D-40-37

About MSD Ignition

Racers never stop experimenting as they search for every way to wring out more power or handling performance to to gain an edge over the competition. The team at MSD is no different as we strive to deliver the products you need to meet your performance goals. We continue to innovate and invent components and technology that deliver performance and reliability with products that are easy to use and install.

Over the course of 40-plus years, MSD Performance has been driving the development of innovative components that helped shape the way our cars race and perform. From super speedways to road courses, land speed racing to top fuel dragsters, and of course your traditional hot rod, MSD has provided the components to fire nearly anything in motorsports.

MSD was the first company to develop and offer the multiple sparking, capacitive discharge ignition for engines. The line of MSD 6-Series Ignitions are the most popular aftermarket ignitions in the world due to our race-proven performance on the track and our reliability on the street!

Early on, MSD focused squarely on ignition systems with revolutionary products like the multiple sparking CD ignition, timing and rev controls, billet aluminum distributors and the Pro-Mag, an incredible breakthrough in power and endurance.

Today MSD is developing electronics for your entire powertrain. The Atomic EFI systems for the LS engine platform and throttle body are now complemented with a transmission controller. Our DynaForce Starters and Alternators ensure that your engine cranks over to fire up and the Alternators keep it charged. MSD is poised to deliver components that work and communicate together to provide performance and value.

Downloads:

Download Name	File Size
8207.pdf	165.47KB

Videos:

Specifications:

C.A.R.B. EO #	D-40-37
Coil Type	Blaster
Color	Black
Emission Code	1
Inductance	6.9 mH
Maximum Voltage	40,000 Volts
Part Type	Ignition Coil
Peak Current	300 mA
Primary Resistance	.355 ohms
Product Type	Ignition Coil
Proposition 65	www.P65Warnings.ca.gov
Secondary Resistance	4.4K ohms
Spark duration	220 uS, 220 uS
Turns Ratio	70:1
Warranty	Limited 1 Year Warranty
Weight	1.08 lbs.
