Pypes Crossflow System w/X-Pipe Exhaust System 67-74 Split Rear Dual Exit 2.5 in Intermediate And Tail Pipe Race Pro Mufflers/Hardware Incl Tip Not Incl Natural 409 Stainless Steel Exhaust SGF70

Pypes Crossflow System w/X-Pipe Exhaust System 67-74 Split Rear Dual Exit 2.5 in Intermediate And Tail Pipe Race Pro Mufflers/Hardware Incl Tip Not Incl Natural 409 Stainless Steel Exhaust SGF70
Pypes Crossflow System w/X-Pipe Exhaust System 67-74 Split Rear Dual Exit 2.5 in Intermediate And Tail Pipe Race Pro Mufflers/Hardware Incl Tip Not Incl Natural 409 Stainless Steel Exhaust SGF70
$1,259.99 kt
NEWARRIVING SOONEstimated Ship Date 04/10/2024 (If Ordered Today)23 Available from PYPES EXHAUST as of 03/26/2024
Model: 3957880
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
OVERSIZE 2

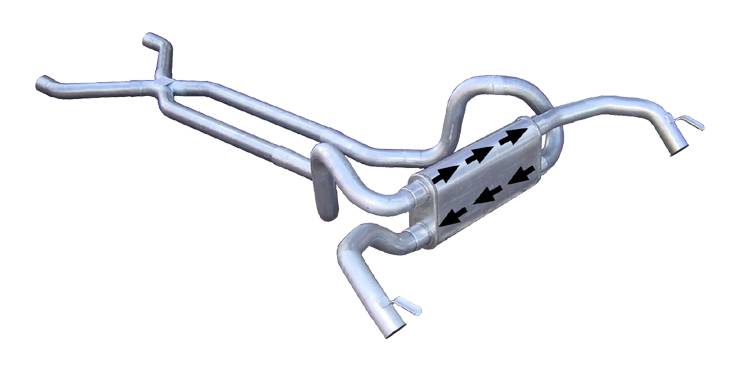

This is the first system on the market with a true straight thru flow path. That means that even though there is one muffler there is two completely separate flow paths for each side of the exhaust. There is absolutely no loss of flow thru the muffler. All other systems include a flow path that create turbulence and restricted flow in the muffler.

This header back system includes a driveshaft tunnel X crossover kit for maximum ground clearance even on lowered vehicles. Manifold downpipes are available as an option for those that do not have headers. Great for even the highest performance (up to 600 hp) applications where ground clearance and OEM look is a priority. Pipes and muffler are 409 stainless steel. This is the last exhaust system you will ever need for your car.

Tips are not included with the system. Part number EVT49 is for behind the tire exit. Part number EVT59 for out the back cars. Part number EVT10 splitters (also requires part number TGF20E for 76-81 owners).
Features:

  • Exhaust Type: Dual
  • Exit Position: Dual Split Rear
  • Exit Style: Straight
  • Inlet Inside Diameter: 2.5 Inch
  • Oulet Outside Diameter: 2.5 Inch
  • Diameter: 2.5 Inch
  • Material: 409 Stainless Steel
  • Sold As: Kit
  • Warranty: Limited Lifetime
  • Stainless Steel Construction Resists Corrosion
  • Delivers The Ultimate In Sound And Performance
  • Provides Extra Punch In The Passing Lane
  • Fabricated Using The Highest Quality Materials
  • Ensures Maximum Exhaust Gas Flow Which Significantly Boost HP
  • Installation At Home Without Special Tools
  • Mandrel-Bent/ All Welded/ Built to Last
  • Includes Transverse Race Pro Muffler
  • One Muffler w/ Separate Flow Paths For Each Side Of The Exhaust
  • Great For Even The Highest Performance-Up To 600hp
  • Applications Where Ground Clearance And OEM Look Is A Priority
About Pypes Performance Exhaust

One of the principal ways of getting a lot of bang for your performance buck is to replace your car’s compression-bent exhaust system with a mandrel bent system.  The simple fact is that a mandrel bent exhaust system will flow twice as efficiently as a compression-bent system and we all know that efficient flow is one of the main ingredients of power.

Pypes Performance Exhaust supplies complete mandrel bent, performance exhaust systems for American performance vehicles ranging from the 1950’s to the present day.  We also offer both gas and diesel truck systems for the most popular American Pick-Up Trucks!

Our systems and accessories are fabricated using stainless steel materials that will provide their owners with long term service and satisfaction……and, Pypes products are backed by our limited lifetime warranty!  Most of our systems include a custom designed X-Pipe at a considerably lower price than others that include no crossover at all or just a basic balance tube with their systems.  A typical Pypes’ “complete system” will include an X-Pipe, a pair of mufflers, a set of tailpipes and all of the clamps and hangers required to install the system.

Pypes also performance matches systems with a choice of their own distinct mufflers to best suit your horsepower and sound requirements, rather than forcing you to buy one type of technology that may not be best for your application.

Videos:

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years
Chevrolet Chevy II Nova 1968
Chevrolet Nova Concours 1976 - 1977
Chevrolet Nova Custom 1973 - 1979
Chevrolet Nova LN 1975
Chevrolet Nova Police 1975 - 1978
Chevrolet Nova Rally 1977 - 1979
Chevrolet Nova SS 1976
Chevrolet Nova 1969 - 1979

Specifications:

Compatibility EVT49, EVT59, EVT10, TGF20E
Diameter 2.5 Inch
Exhaust Tip included No
Exhaust Type Dual
Exit Position Dual Split Rear
Exit Style Straight
Finish Natural
Hardware Included Yes
Includes Muffler Yes
Inlet Inside Diameter 2.5 Inch
Manufacturer Warranty Limited Lifetime
Material 409 Stainless Steel
Outlet Outside Diameter 2.5 Inch
Vehicle Type Car
