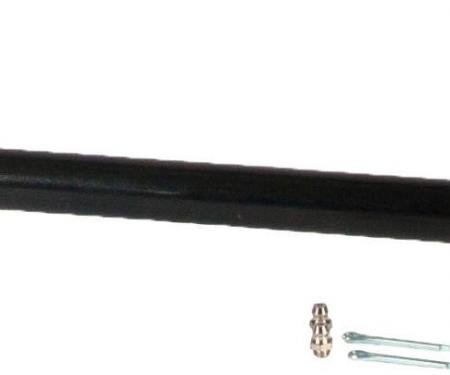

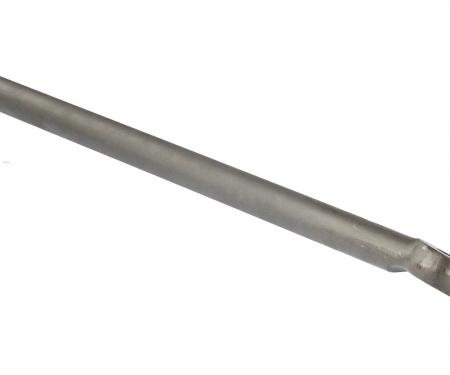

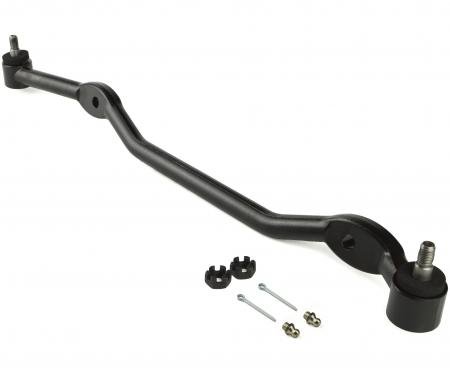

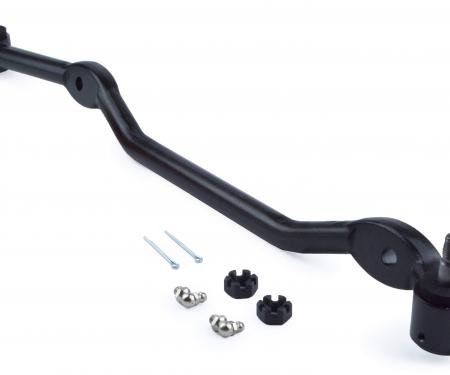

Reproduction of the original center drag link designed for use with various GM models as listed. Each drag link is manufactured in quality forged steel that replicates the original size and configuration offering a superior appearance and fit. Produced in forged steel and heat treated for strength. Improves steering response and restores steering geometry to OE specs.
Product Specifications
Shaft Diameter: 1-1/8
Length Center to Center Studs: 27.5625
Number of Holes: 4
Hole Sizes: (2) 0.496 & (2) 0.554
Pitman Arm End to Hole One: 3.6875
Pitman Arm End to Hole Two: 22.125
Pitman Arm End to Hole Three: 27.563
Adjustable: No
Greasable: No
Buick Applications
1973 - 1974 Buick Apollo
Chevrolet Applications
1967 - 1969 Chevrolet Camaro Base
1967 - 1969 Chevrolet Camaro RS
1967 - 1969 Chevrolet Camaro Z28
1967 - 1969 Chevrolet Camaro SS
1968 - 1968 Chevrolet Chevy II Nova
1969 - 1974 Chevrolet Nova
Oldsmobile Applications
1973 - 1974 Oldsmobile Omega
Pontiac Applications
1967 - 1968 Pontiac Firebird Base
1967 - 1967 Pontiac Firebird HO
1967 - 1968 Pontiac Firebird Sprint
1967 - 1968 Pontiac Firebird 400
1968 - 1968 Pontiac Firebird 350
1974 - 1974 Pontiac Ventura Custom
1974 - 1974 Pontiac Ventura GTO
1973 - 1974 Pontiac Ventura
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
