| Download Name | File Size |
| 183-3716-0.pdf | 958.32KB |
| Make | Model | Years | Engine |
| Chevrolet | Nova | 1975 | 4.1L / 250 / L6 4.3L / 262 / V8 5.7L / 350 / V8 |
| Chevrolet | Nova | 1976 | 4.1L / 250 / L6 5.0L / 305 / V8 5.7L / 350 / V8 |
| Chevrolet | Nova | 1977 | 4.1L / 250 / L6 5.0L / 305 / V8 5.7L / 350 / V8 |
| Chevrolet | Nova | 1978 | 4.1L / 250 / L6 5.0L / 305 / V8 5.7L / 350 / V8 |
| Chevrolet | Nova | 1979 | 5.0L / 305 / V8 5.7L / 350 / V8 4.1L / 250 / L6 |
| Attached Sump | No |
| Baffled | Yes |
| Capacity | 21 GAL |
| Color | Silver |
| Filler Neck Attached | Yes |
| Finish | Powder Coated |
| Fuel Cap Included | No |
| Fuel Pump Included | Yes |
| Fuel System Compatibility | Carburation & Fuel Injection |
| Fuel Type | Gas |
| Grade Type | Performance |
| Height | OEM IN |
| Integrated Controller | No |
| Length | OEM IN |
| Lock Ring Included | Yes |
| Material | Steel |
| Maximum Current Draw | 13A @ 40PSI |
| Maximum Flow Rating | 340LPH |
| Maximum Pressure | 105PSI |
| Motor Style | Brushed |
| Mounting Hardware Included | No |
| Mounting Straps Included | No |
| Negative Ground | Yes |
| O Ring Included | Yes |
| Outlet Outside Diameter | ORB-06 |
| Outlet Type | Female |

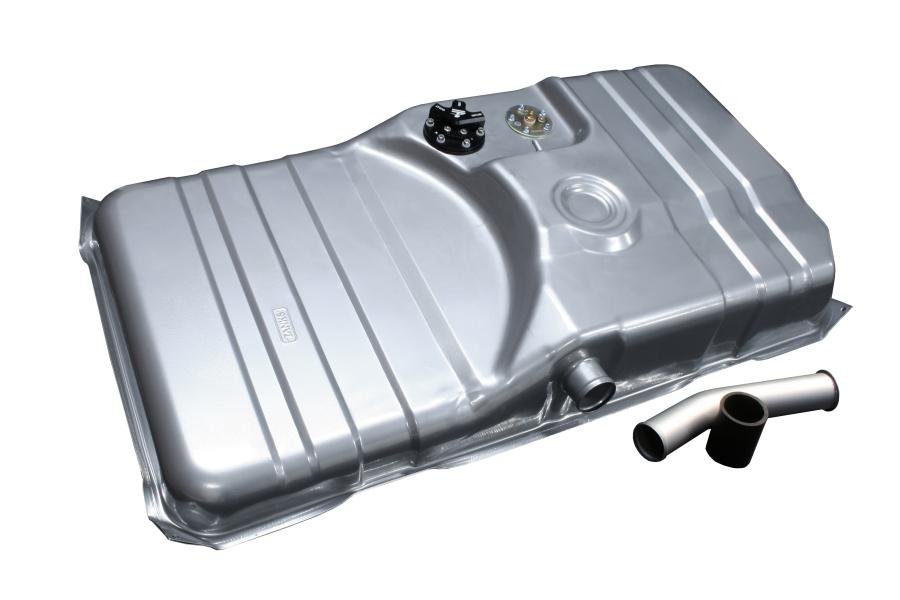

| Part Type | Fuel Tank |
| Pressure Range | 3-65 |
| Prop 65 Flag | Yes |
| Pulse Width Modulation Compatible | Yes |
| Pump Design | Turbine Impeller |
| Return Fitting Size | ORB-06 |
| Sender Ohm Range | 0-90 |
| Sending Unit Included | Yes |
| Series | Stealth |
| Terminal Gender | Male |
| Terminal Quantity | 3 |
| Terminal Type | Threaded Stud |
| Universal Or Specific Fit | Specific |
| Voltage | 12-16V |
| Warranty Time | 12 Months |
| Width | OEM IN |
